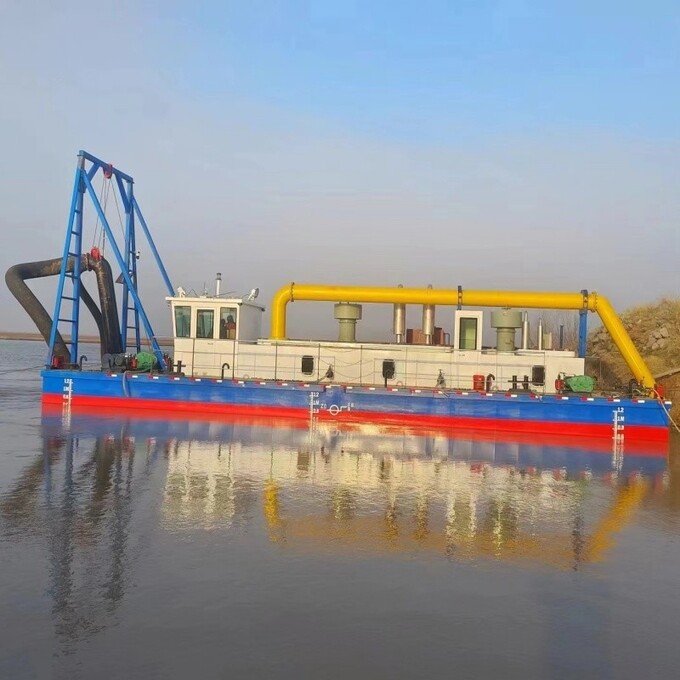

Small Jet Suction 8 Inch Sand Dredger Ship For Dredging Sand And Mud

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-12inch

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 75000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year


Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:River Sand Jet Suction Dredger,10m River Sand Jet Suction Dredger,Canal River Sand Jet Suction Dredger


Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
1400m3/h
Solid Capacity:
200-250 Cbm/H
Max.Dredging Depth 45°:
10m
Discharge Distance:
1000m
Size:
20M*6.0M*1.5M
Main Engine:
456kw
Consumption:
80L/H
Application:
Sand Suction
Work Site:
River Lake Sea Canal
Auxiliary Engine Power:
110kw
Core Components:
Engine, Pump


PRODUCT SHOW

River Sand Jet Suction Dredger for Export

1.Brief Introduction

Our jet suction sand dredger is equipped with high pressure pump. It washes sand up , then the sand pump conveys the sand to the destination through the pipe. The dredger is novelly designed, easy to operate. It is widely used for river dredging, lakes and ponds desilting , land reclaimation, ports cleaning and sand pumping.

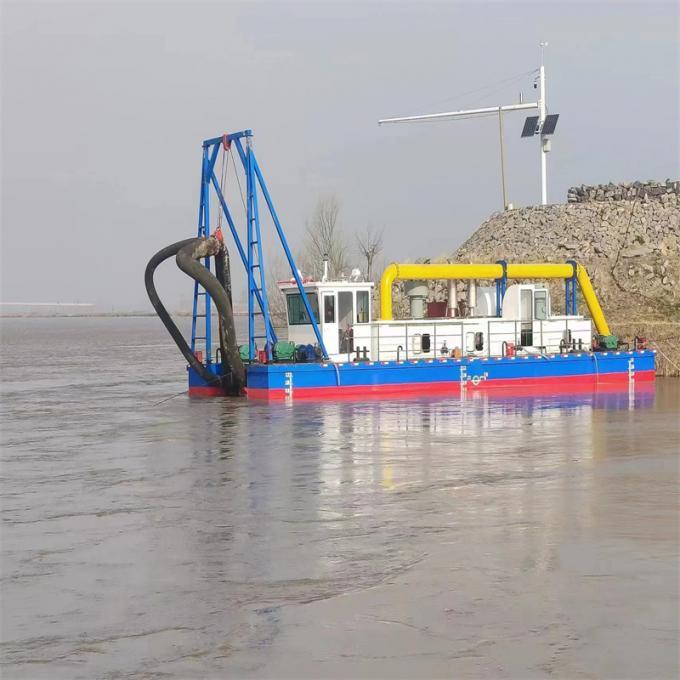

River Sand Jet Suction Dredger for Export 0

Product Paramenters:

Model
Soild
       capacity
Water flow
Dredging depth
Discharge distance
Main engine
Auxiliary engine
Total consumption
size(m)
6inch
40-50
m3/h
250
       m3/h
6M
500M
120
       KW

18L/H
10*3.8*1.6
8inch
80-100
m3/h
500
       m3/h
8M
500M
176
       KW
60KW
40L/H
14*4.5*1.2
10inch
150-180
m3/h
900
       m3/h
10M
800M
294
       KW
88KW
60L/H
17*5*1.2
12inch
200-250
m3/h
1400
       m3/h
10M
1000M
456
       KW
110KW
80L/H
20*6*1.5
14inch
300-400
m3/h
2000
       m3/h
12M
1500M
735
KW
120KW
120L/H
24*6.6*1.6
16inch
400-500
m3/h
2600
       m3/h
14M
1500M
882
KW
258KW
150L/H
24*7.2*1.8
18inch
500-600
m3/h
3000
       m3/h
14M
1500M
1103
       KW
456KW
220L/H
24*7.6*2.0
20inch
600-700
m3/h
3800
       m3/h
14M
1500M
1250
       KW
456KW
240L/H
26*7.6*2.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added.
       The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

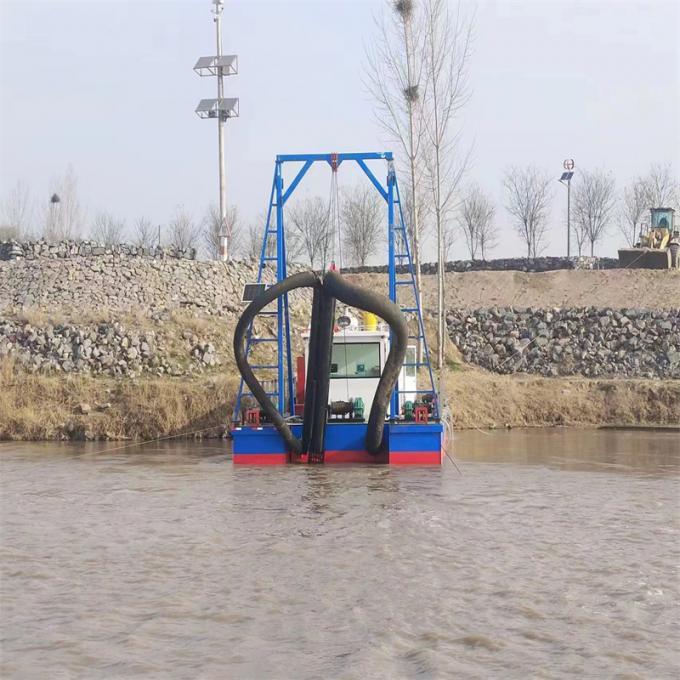

River Sand Jet Suction Dredger for Export 1

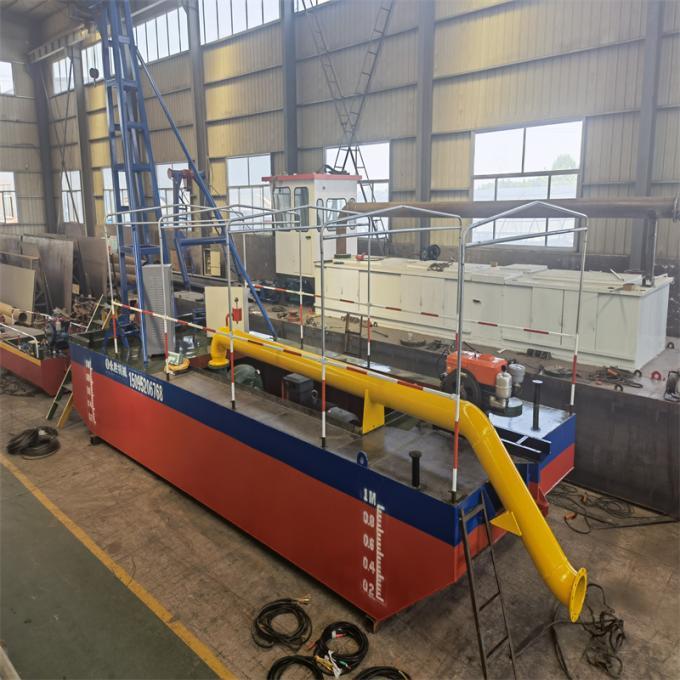

River Sand Jet Suction Dredger for Export 2

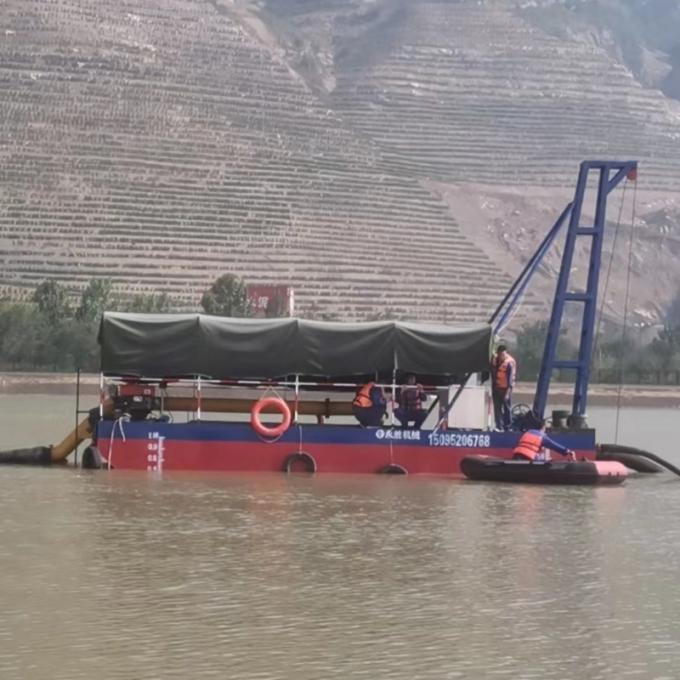

River Sand Jet Suction Dredger for Export 3

Advantage:


1.Efficiency: The use of high-pressure water jets allows for rapid fluidization and removal of material, resulting in high productivity.

2.Cost-Effectiveness: With fewer mechanical parts and lower maintenance requirements, JSDs are often more economical to operate compared to other types of dredgers.

3.Environmental Friendliness: The gentle fluidization process minimizes disturbance to the surrounding environment,making JSDs suitable for ecologically sensitive areas.

4.Versatility: JSDs are effective in a variety of environments, including rivers, lakes, and coastal areas, where loose,non-cohesive materials are prevalent
