Powerful Sand Suction Dredger For River And Lake Cleaning

‹

›

‹

  • Powerful Sand Suction Dredger For River And Lake Cleaning
  • Powerful Sand Suction Dredger For River And Lake Cleaning
  • Powerful Sand Suction Dredger For River And Lake Cleaning
  • Powerful Sand Suction Dredger For River And Lake Cleaning

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-8inch

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 66000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:Powerful Sand Suction Dredger,Lake Cleaning Sand Suction Dredger,River Sand Suction Dredger

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
500m3/H
Solid Capacity:
80-100m3/H
Max.Dredging Depth 45°:
8m
Discharge Distance:
500m
Size:
14m*4.5m*1.2m
Main Engine:
176kw
Consumption:
40L/H
Application:
Sand Suction
Work Site:
River Lake Sea Canal

PRODUCT SHOW

Jet Suction Sand Dredger for River and Lake Cleaning
Jet suction dredger is equipped with a high-pressure water pump and a powerful sand suction pump, which work in tandem to effectively dredge the seabed or riverbed. The water pump generates a high-pressure,high-speed water jet that impacts the bottom of the sand layer, agitating and splashing the mixed sand around the suction head. The sand suction pump then conveys the loosened material through the discharge pipe to the desired destination.

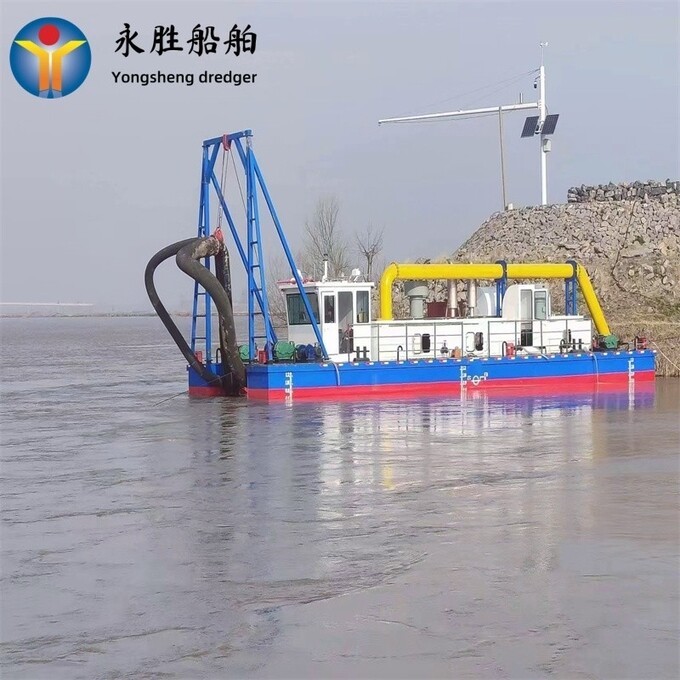

Powerful Sand Suction Dredger For River And Lake Cleaning 0

Product Paramenters:
Model
Soild
capacity
Water flow
Dredging depth
Discharge distance
Main engine
Auxiliary engine
Total consumption
size(m)
6inch
40-50
m3/h
250
m3/h
6M
500M
120
KW

18L/H
10*3.8*1.6
8inch
80-100
m3/h
500
m3/h
8M
500M
176
KW
60KW
40L/H
14*4.5*1.2
10inch
150-180
m3/h
900
m3/h
10M
800M
294
KW
88KW
60L/H
17*5*1.2
12inch
200-250
m3/h
1400
m3/h
10M
1000M
456
KW
110KW
80L/H
20*6*1.5
14inch
300-400
m3/h
2000
m3/h
12M
1500M
735
KW
120KW
120L/H
24*6.6*1.6
16inch
400-500
m3/h
2600
m3/h
14M
1500M
882
KW
258KW
150L/H
24*7.2*1.8
18inch
500-600
m3/h
3000
m3/h
14M
1500M
1103
KW
456KW
220L/H
24*7.6*2.0
20inch
600-700
m3/h
3800
m3/h
14M
1500M
1250
KW
456KW
240L/H
26*7.6*2.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added.
The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

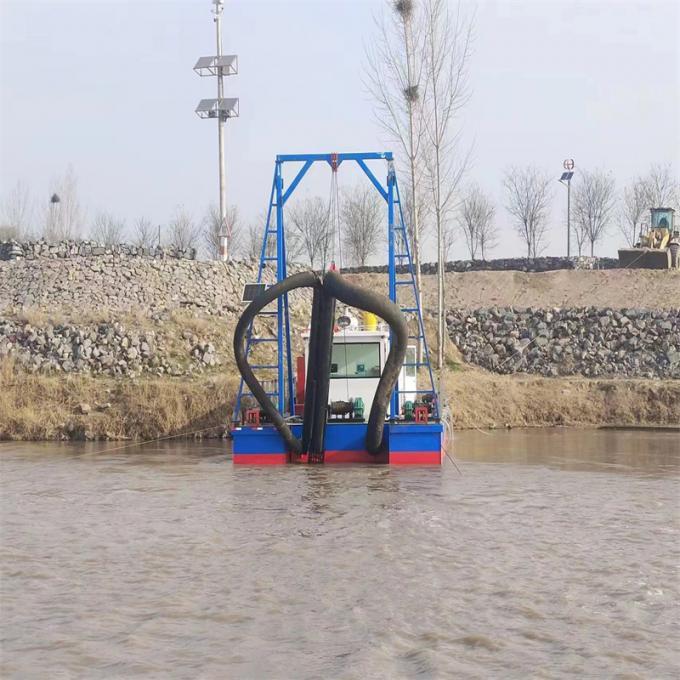

Powerful Sand Suction Dredger For River And Lake Cleaning 1

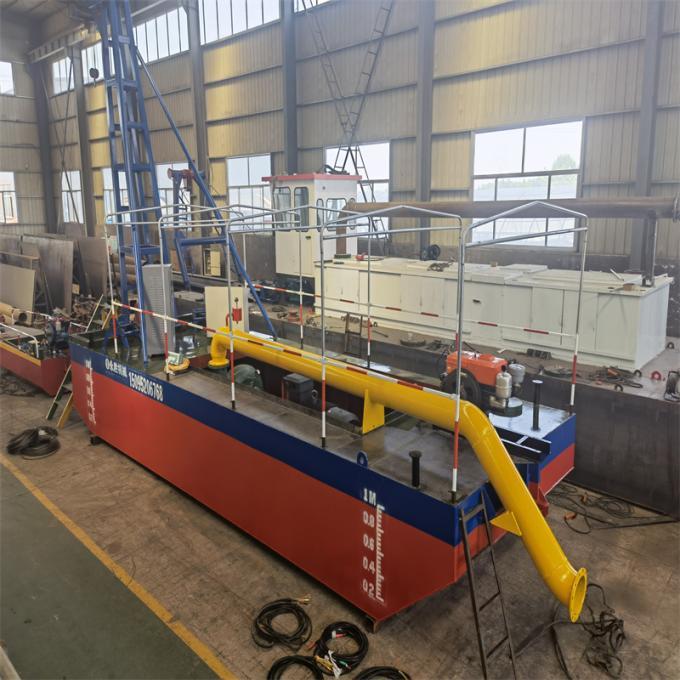

Powerful Sand Suction Dredger For River And Lake Cleaning 2

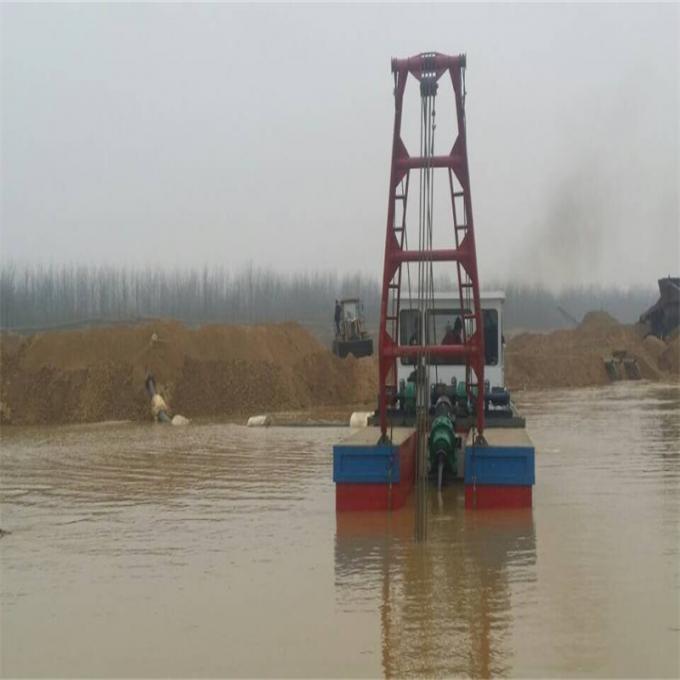

Powerful Sand Suction Dredger For River And Lake Cleaning 3
