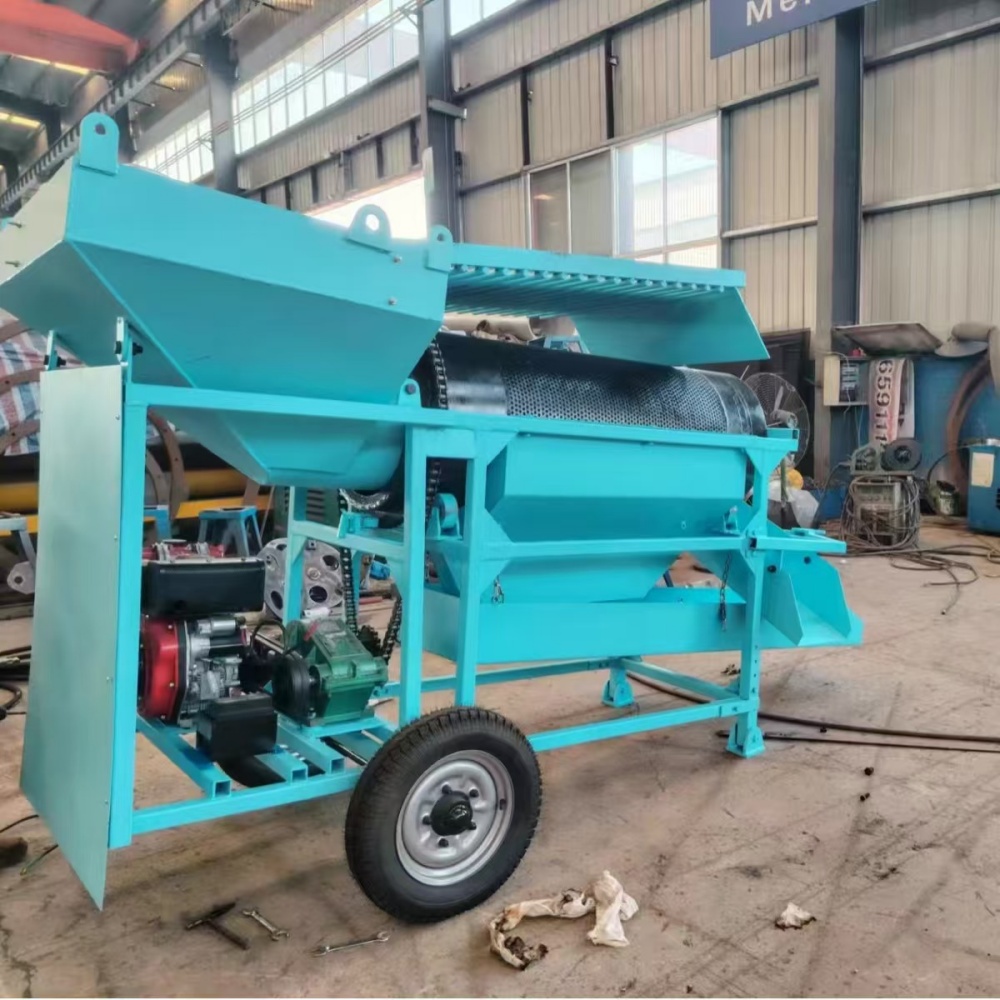

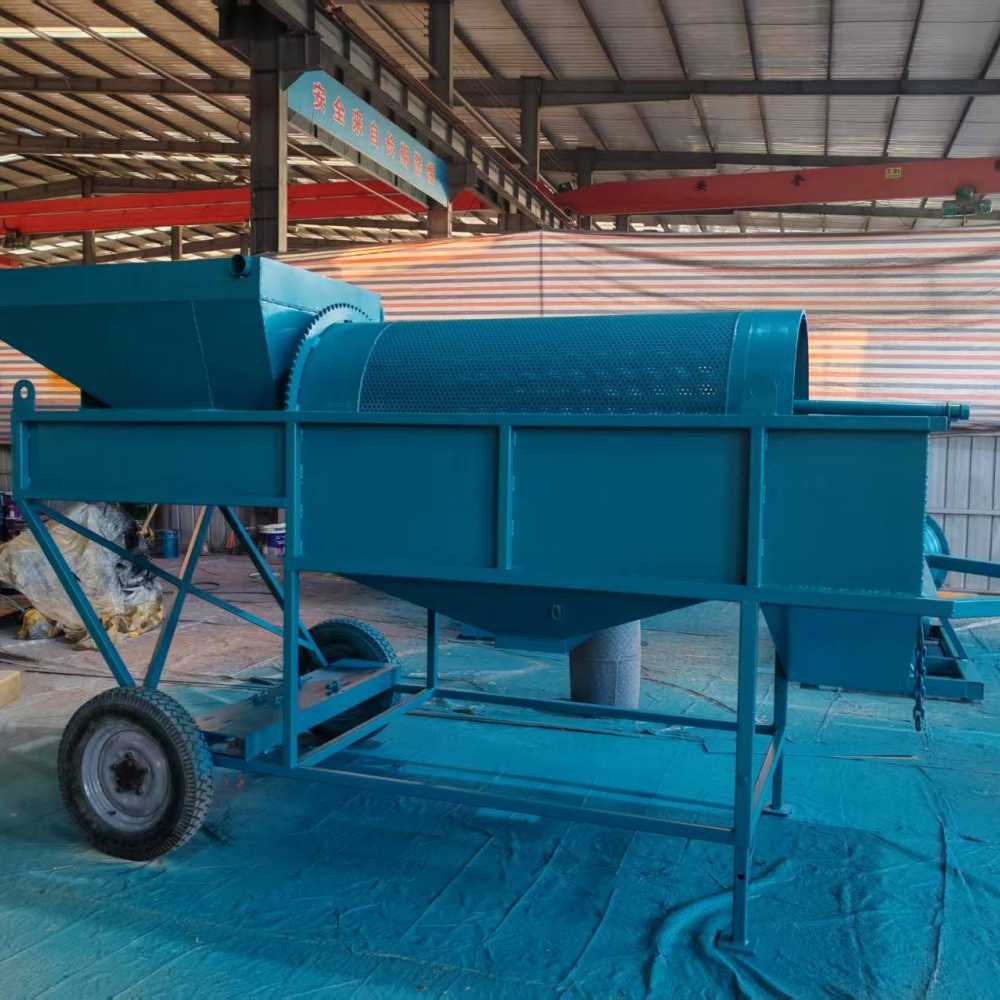

5T Mobile Gold Washing Plant – Specifications

Basic Parameters

1. Overall Dimension: 2150mm (L) × 1300mm (W) × 1200mm (H)
2. Feeder Hopper
   • Size: 540mm (L) × 400mm (W)
   • Material: 4mm steel plate
3. Screening System
   • Size (L×Dia): 1400mm × 400mm
   • Material: 6mm steel plate
4. Gold Washing System
   • Size: 1500mm (L) × 400mm (W) × 150mm (H)
   • Material: 3mm steel plate
5. Frame
   • Material: 30×30mm square tube
6. Traction Support
   • Material: 40×40mm square tube
7. Engine
   • Model: Single cylinder, vertical, 4‑stroke, direct injection
   • Starting Type: Recoil hand pull start
   • Rotation Direction (facing output end): Anti‑clockwise
   • Fuel Tank Capacity: 2.5L
   • Fuel Consumption: 280.2 g/kWh @ 3000 rpm; 288.3 g/kWh @ 3600 rpm
   • Power: 2.8 kW
