Sand And Slurry Jet Suction Dredger For Mining

‹

›

‹

  • Sand And Slurry Jet Suction Dredger For Mining
  • Sand And Slurry Jet Suction Dredger For Mining
  • Sand And Slurry Jet Suction Dredger For Mining
  • Sand And Slurry Jet Suction Dredger For Mining

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-16inch

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 95000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:sand dredger for mining,slurry jet suction dredger,sand suction dredger with warranty

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
2600m3/h
Solid Capacity:
400-500 Cbm/H
Max.Dredging Depth 45°:
14m
Discharge Distance:
1500m
Size:
24M*7.2M*1.8M
Main Engine:
882kw
Consumption:
150L/H
Application:
Sand Suction
Work Site:
River Lake Sea Canal
Auxiliary Engine Power:
258kw
Core Components:
Engine, Pump

PRODUCT SHOW

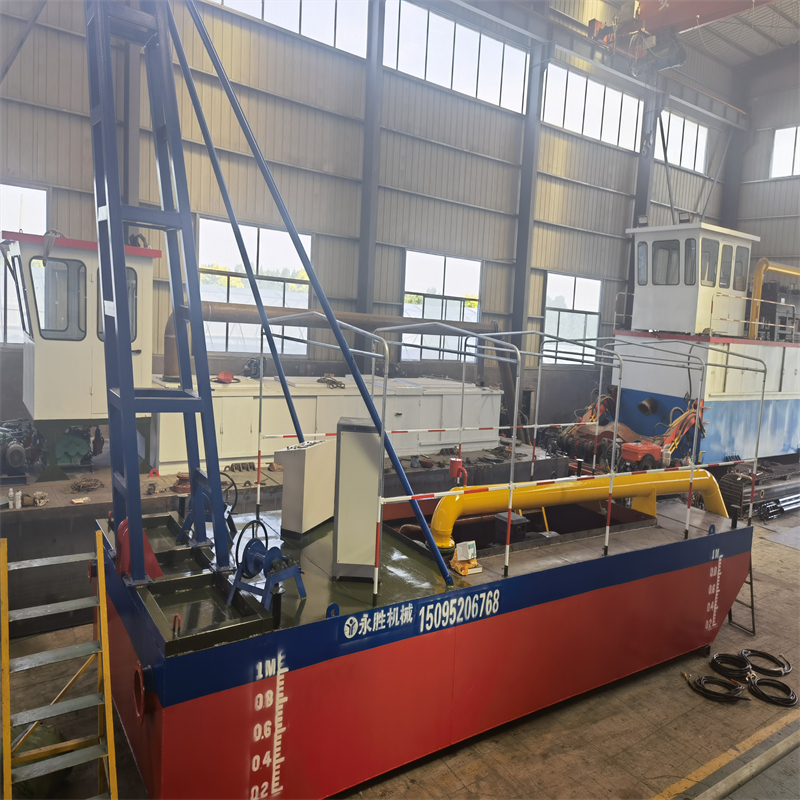

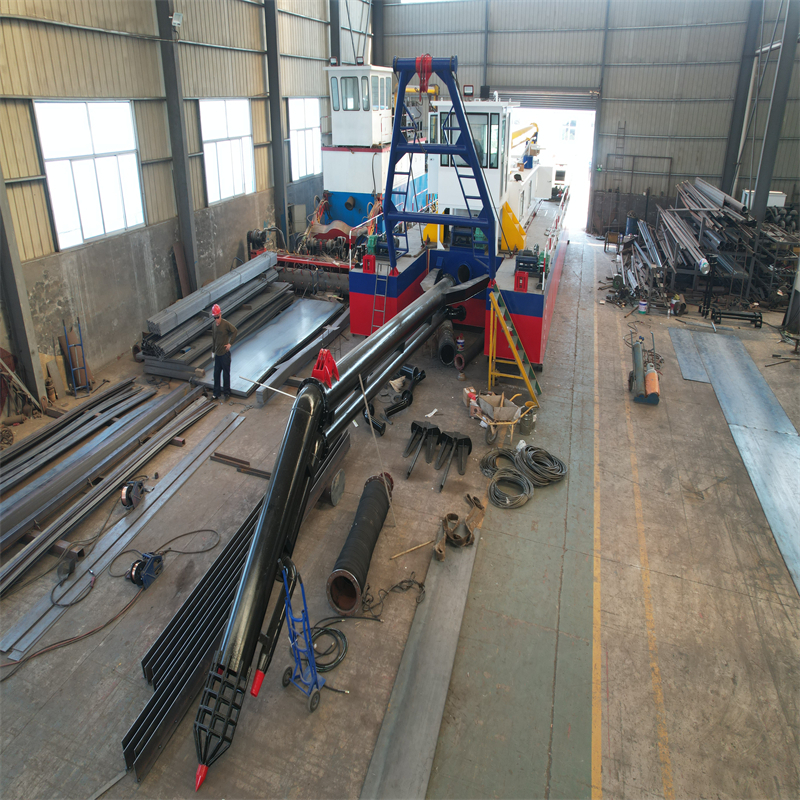

Sand And Slurry Jet Suction Dredger For Mining
Product Specifications
AttributeValue
Customizedcustomized
Conditionnew
Warranty1 year
Water Flow2600m³/h
Solid Capacity400-500 Cbm/H
Max.Dredging Depth 45°14m
Discharge Distance1500m
Size24M*7.2M*1.8M
Main Engine882kw
Consumption150L/H
Applicationsand suction
Work siteriver lake sea canal
Auxiliary engine power258kw
Core ComponentsEngine, Pump
Product Description

The Jet Suction Sand Dredger is engineered for efficient underwater material recovery from significant depths, capable of extracting sand even beneath clay overburdens. This specialized equipment combines a high-pressure water pump with a powerful sand suction pump system.

Sand And Slurry Jet Suction Dredger For Mining 0
Technical Parameters
ModelSolid CapacityWater FlowDredging DepthDischarge DistanceMain EngineAuxiliary EngineTotal ConsumptionSize(m)
6inch40-50 m³/h250 m³/h6M500M120 KW
18L/H10*3.8*1.6
8inch80-100 m³/h500 m³/h8M500M176 KW60KW40L/H14*4.5*1.2
10inch150-180 m³/h900 m³/h10M800M294 KW88KW60L/H17*5*1.2
12inch200-250 m³/h1400 m³/h10M1000M456 KW110KW80L/H20*6*1.5
14inch300-400 m³/h2000 m³/h12M1500M735 KW120KW120L/H24*6.6*1.6
16inch400-500 m³/h2600 m³/h14M1500M882 KW258KW150L/H24*7.2*1.8
18inch500-600 m³/h3000 m³/h14M1500M1103 KW456KW220L/H24*7.6*2.0
20inch600-700 m³/h3800 m³/h14M1500M1250 KW456KW240L/H26*7.6*2.0
Note: This equipment is customized, with a maximum single-pump conveying distance of 1000-2000m. For longer distances, a separate relay pump group is required. Output calculations are based on 15-20% concentration; long-distance conveying reduces concentration to approximately 15% of flow rate.

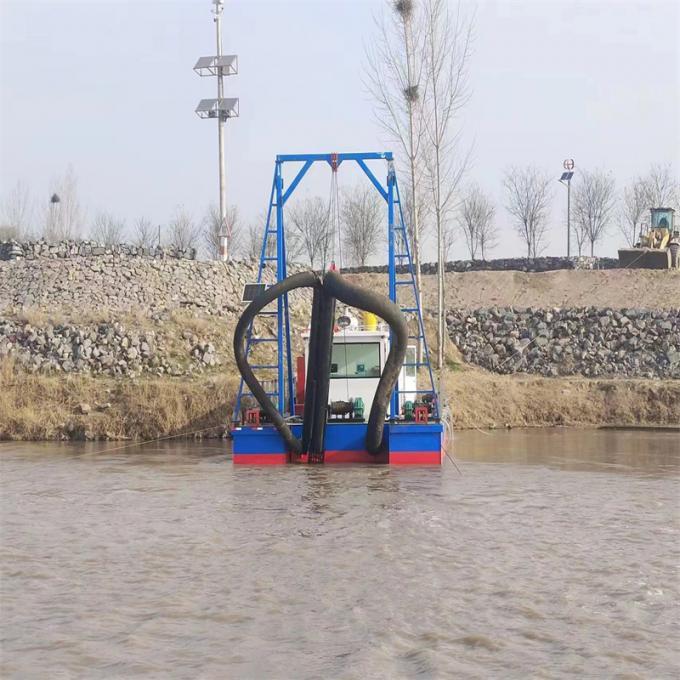

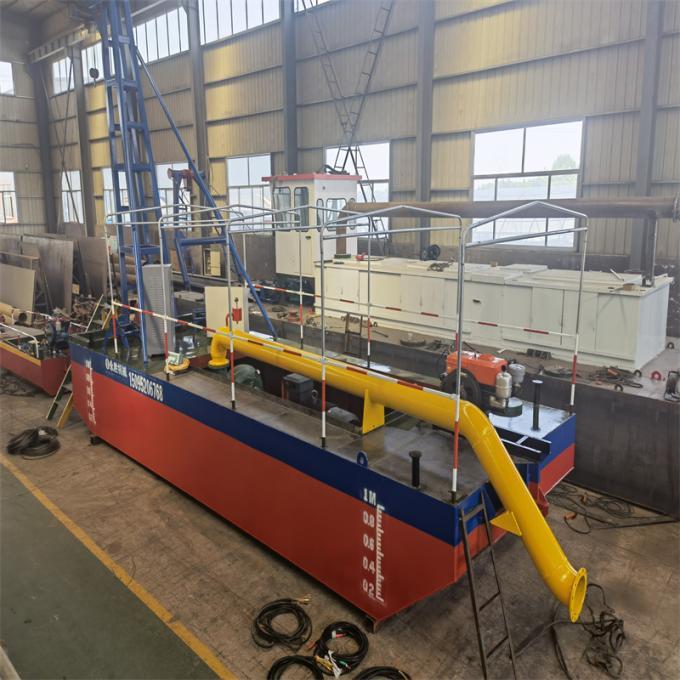

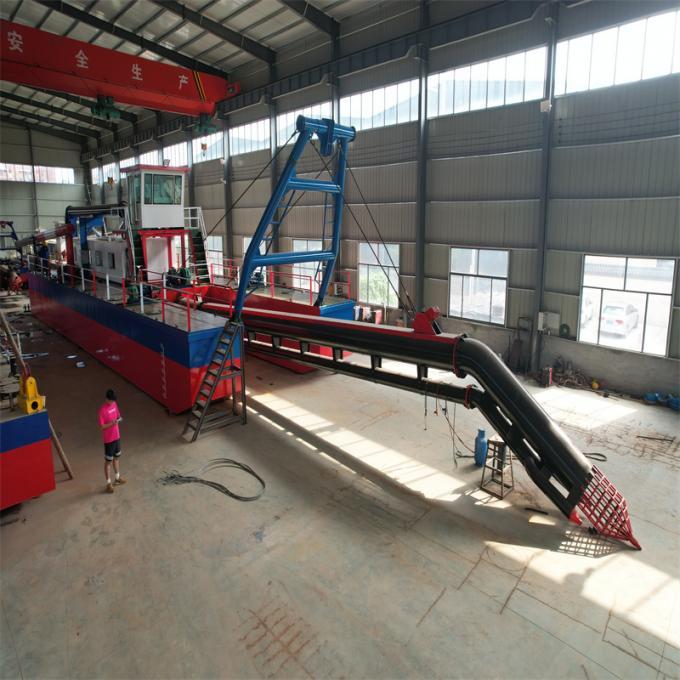

Sand And Slurry Jet Suction Dredger For Mining 1Sand And Slurry Jet Suction Dredger For Mining 2Sand And Slurry Jet Suction Dredger For Mining 3
Key Advantages
  • Innovative design delivering high efficiency, large output, and long discharge distance
  • Premium wear-resistant sand pump for extended service life
  • Exceptional pumping depth capability (20-30m underwater)
  • Modular pontoon hull with proven coupling system
  • Optimized fuel efficiency minimizing operational costs
  • Ergonomic control panel with integrated instrumentation
  • Cost-effective investment with superior operating performance
  • Simple assembly/disassembly and user-friendly operation
