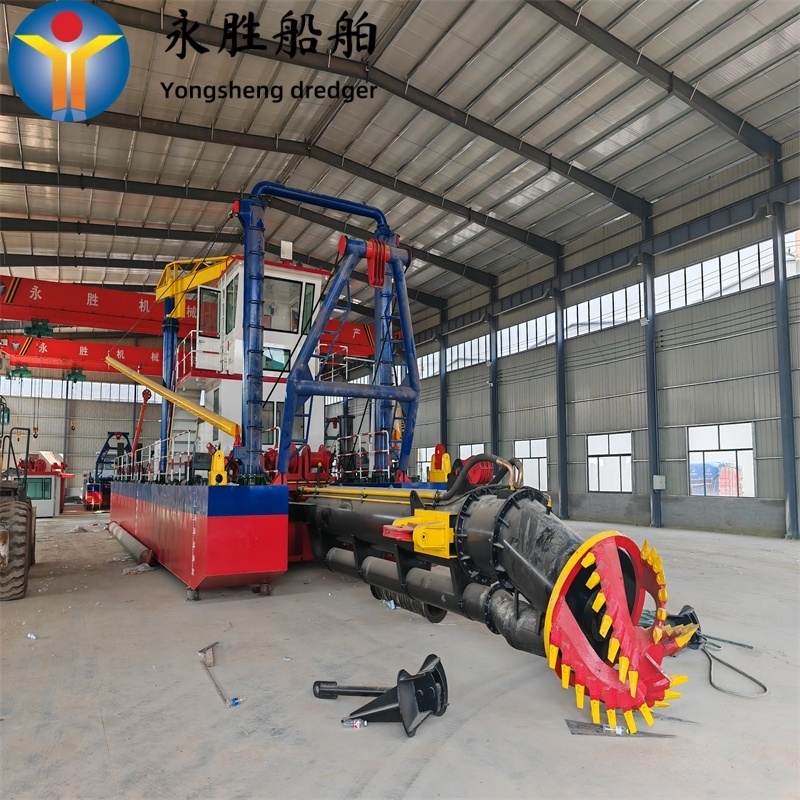

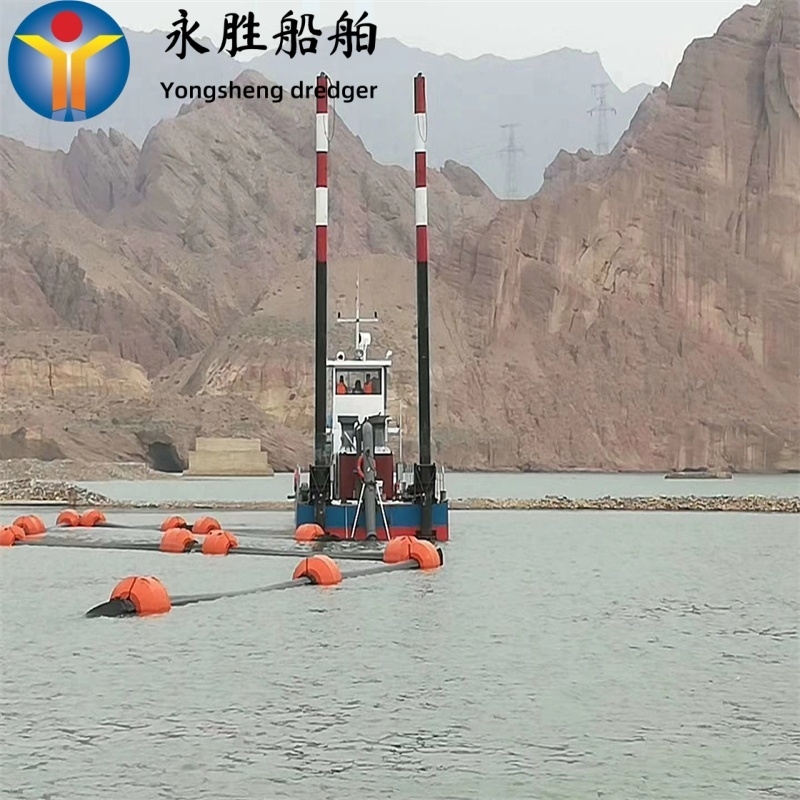

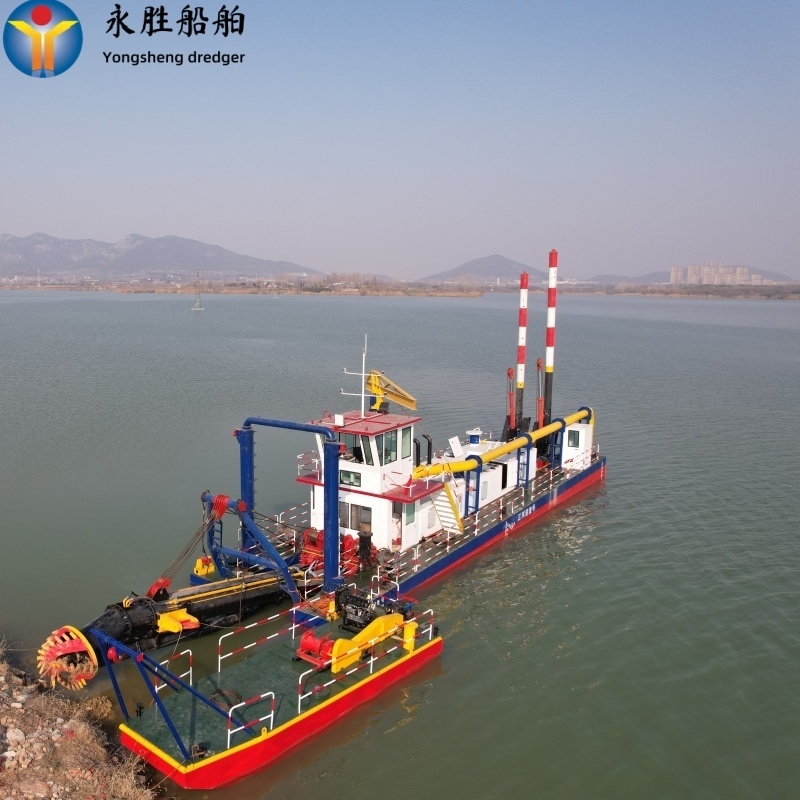

Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System

‹

›

‹

  • Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System
  • Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System
  • Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System
  • Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd300


Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 182529usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:hydraulic cutter suction dredger,sand dredger with spud system,cutter suction dredger with winch
Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
1200-1500m3/h
Solid Capacity:
240 Cbm/h
Max.Dredging Depth 45°:
10m
Discharge Distance:
1100m
Dredger After Assembly:
28.5*5.5*1.5m Length*width*depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1m
Diameter Discharge Pipe:
300mm/12inch
Total Power:
591 Kw
Main Engine:
447 Kw
Auxiliary Engine Power:
120kw
Generator:
16 Kw
Hydraulic Cutter Powerr:
55 Kw

PRODUCT SHOW

Sand Cutter Suction Dredger Boat with Hydraulic Winch and Spud System
Product Specifications
Customizedcustomized
Conditionnew
Warranty1 year
Water Flow1200-1500m³/h
Solid Capacity240 cbm/h
Max.Dredging Depth 45°10m
Discharge Distance1100m
Dredger After Assembly28.5*5.5*1.5m (Length*width*depth)
Dredger StructureCan Be Assembly in Working Site
Average Draught1m
Diameter Discharge Pipe300mm/12inch
Total Power591 kw
Main Engine447 kw
Auxiliary Engine Power120kw
Generator16 kw
Hydraulic Cutter Power55 kw
Product Description

The cutter suction dredger/jet suction dredger is the primary equipment for river sand pumping/dredging and offshore cofferdam/channel excavation. Available in models ranging from US$10,000 to US$3 million, we help customers select the optimal configuration based on their specific working conditions.

Available Models
ModelInchDiameter PipeWater FlowSolid CapacityTotal PowerDredging DepthDischarge Distance
YSCSD1506 Inch150 mm260 m³/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m³/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m³/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m³/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m³/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m³/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m³/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m³/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m³/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m³/h1,400 cbm/h3,705 KWMax.18m1,800m

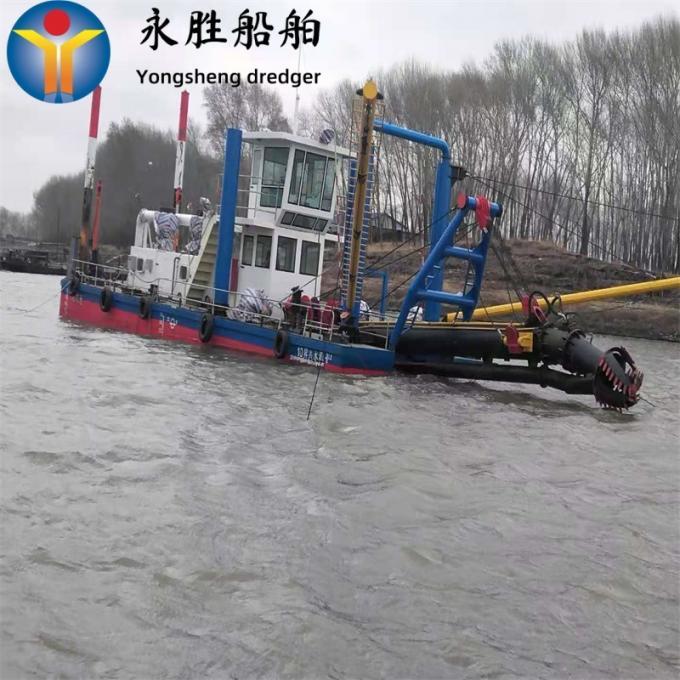

20250813144455_19520

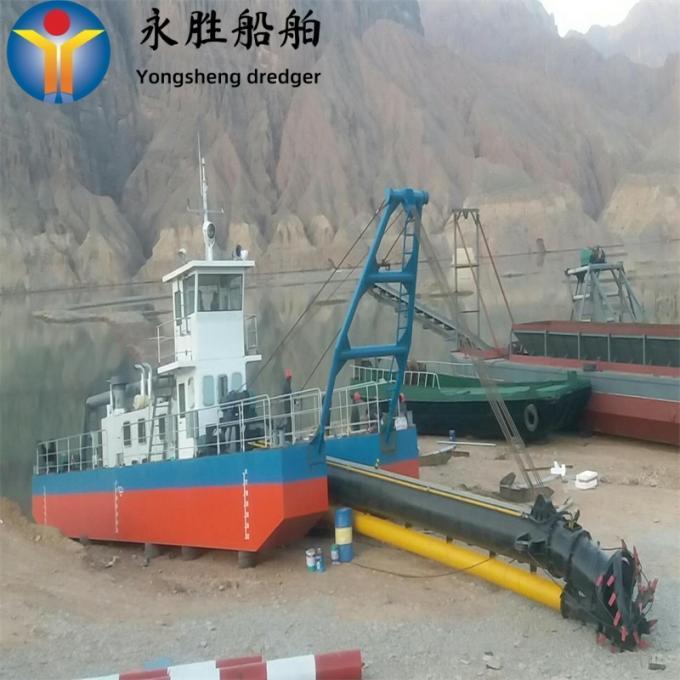

20250813144517_30006

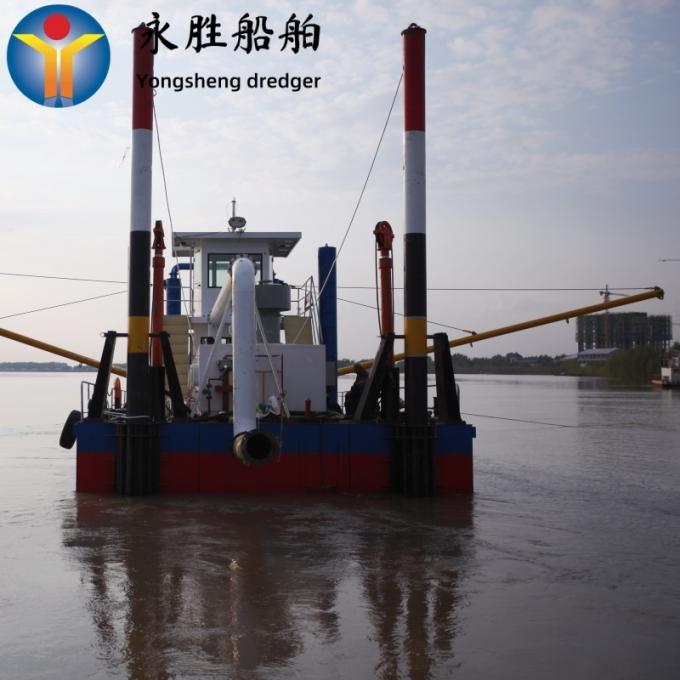

20250813144542_73508


Service & Support
  • Long-term after-sales service
  • Customized design solutions based on customer requirements
  • On-site field service available
  • Free repairs for quality issues during warranty period
  • Comprehensive operation and maintenance training
  • High-quality replacement parts at competitive prices
  • Customer tracking system for ongoing support
Frequently Asked Questions
1. What is the clear water flow capacity in cubic meters per hour?
2. What is the maximum dredging depth?
3. What is the maximum discharge distance?
4. Will the dredger be used in river, lake, sea or channel applications?
