River Cutter Suction Dredger for Port and Marina Cleaning with High Efficiency

‹

›

‹

  • River Cutter Suction Dredger for Port and Marina Cleaning with High Efficiency
  • River Cutter Suction Dredger for Port and Marina Cleaning with High Efficiency
  • River Cutter Suction Dredger for Port and Marina Cleaning with High Efficiency
  • River Cutter Suction Dredger for Port and Marina Cleaning with High Efficiency

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd450


Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 560000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:high efficiency cutter suction dredger,port cleaning dredger machine,marina dredger with cutter suction
Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
3500m3/h
Solid Capacity:
700cbm/h
Max.Dredging Depth 45°:
15m
Discharge Distance:
1500m
Dredger After Assembly:
43.5*7.5*2 M Length*width*depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1.2m
Diameter Discharge Pipe:
450mm/18inch
Total Power:
1057kw
Main Engine:
1,007kw
Auxiliary Engine Power:
425 Kw
Generator:
30 Kw
Hydraulic Cutter Powerr:
160 Kw

PRODUCT SHOW

River Cutter Suction Dredger for Port and Marina Cleaning
Product Specifications
CustomizationCustomized
ConditionNew
Warranty1 year
Water Flow3500m³/h
Solid Capacity700m³/h
Max. Dredging Depth (45°)15m
Discharge Distance1500m
Dimensions After Assembly43.5 × 7.5 × 2 m (L×W×D)
StructureCan be assembled on-site
Average Draught1.2m
Discharge Pipe Diameter450mm/18inch
Total Power1057kW
Main Engine1007kW
Auxiliary Engine Power425kW
Generator30kW
Hydraulic Cutter Power160kW
Product Description
The hydraulic cutter suction dredger features a hydraulic cutter head positioned at the front of the suction pipe to efficiently cut and stir riverbed material. This process creates an optimal mixture concentration for the powerful pump to suction and transport the slurry through discharge pipes to designated locations. The system performs cutting, suction, transportation, and discharge operations in one continuous workflow.
Available Models
ModelInchPipe DiameterWater FlowSolid CapacityTotal PowerDredging DepthDischarge Distance
YSCSD1506 Inch150 mm260 m³/h30 m³/h102 kW4m600 m
YSCSD2008 Inch200 mm600 m³/h80 m³/h213 kW6m800 m
YSCSD25010 inch250 mm1,000 m³/h160 m³/h367 kW8m1,100 m
YSCSD30012 inch300 mm1,500 m³/h240 m³/h591 kW10 m1,100 m
YSCSD35014 inch350 mm2,400 m³/h360 m³/h971 kW12m1,200 m
YSCSD40016 Inch400 mm3,000 m³/h500 m³/h1,057 kW14m1,400 m
YSCSD45018 Inch450 mm3,500 m³/h700 m³/h1,462 kW15m1,500 m
YSCSD50020 Inch500 mm3,800 m³/h760 m³/h1,648 kW15m1,600m
YSCSD60024 Inch600 mm6,000 m³/h900 m³/h2,511 kW15m1,800 m
YSCSD65026 Inch650 mm7,000 m³/h1,400 m³/h3,705 kWMax.18m1,800m

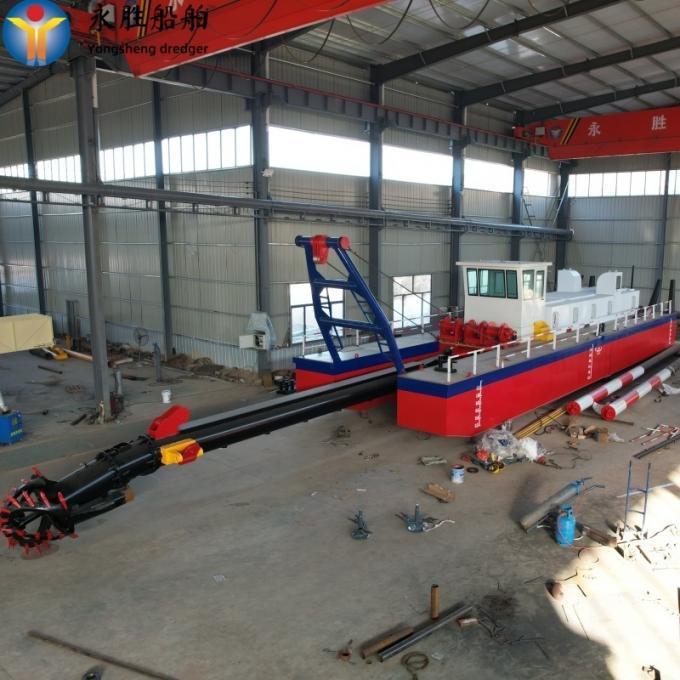

20250812161339_18390

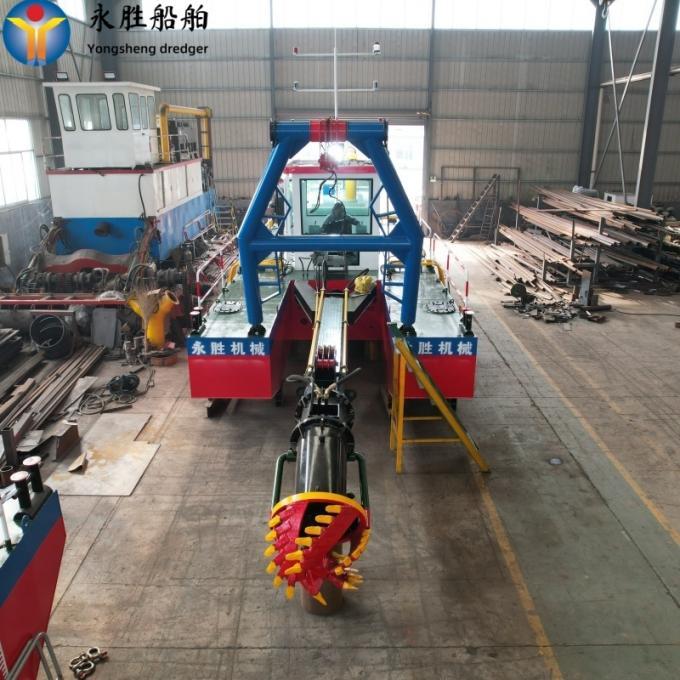

20250812161403_63346

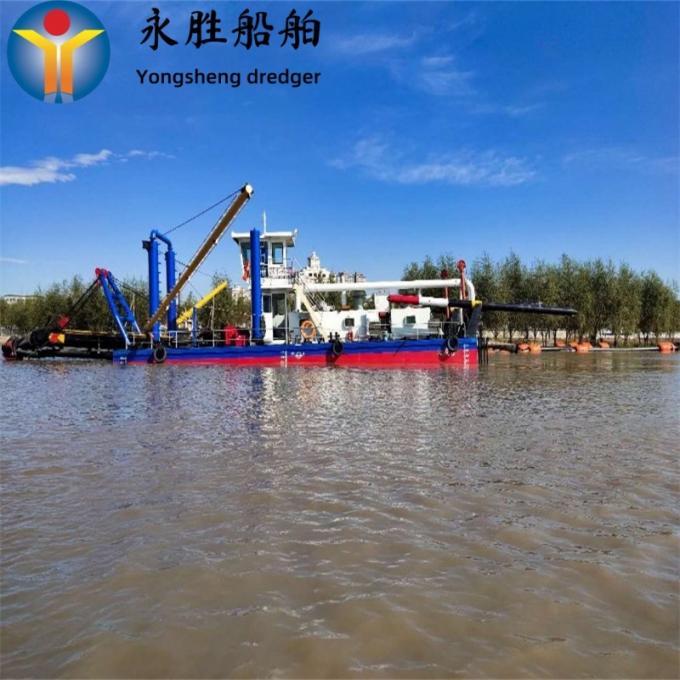

20250812161422_40023

Key Features
  • High efficiency with large output capacity and long discharge distance
  • Low fuel consumption operation
  • Full hydraulic control system with Rexroth/Vickers components
  • Siemens PLC for convenient operation
  • Engine options from Weichai, Cummins, Caterpillar and more
  • Kingda Dredge Pump available
Service & Support
  • 2-3 senior engineers and technicians available on-site within 24 hours
  • 2-year warranty with lifetime technical assistance
  • Free professional assembly, training, and operational support
  • After-sales service agreement available
  • Discounted spare parts pricing
