Sand Dredging Barge 26 Inch Csd Dredger Long Life

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 1450000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:Sand Dredging Barge 26 Inch,26 Inch Csd Dredger,Long Life Csd Dredger


Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
6000m3/h
Solid Capacity:
900cbm/h
Max.Dredging Depth 45°:
15m
Discharge Distance:
2000m
Dredger After Assembly:
48*9.4*2.8 M Length*Width*Depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1.8m
Diameter Discharge Pipe:
600mm/24inch
Total Power:
2511kw
Main Engine:
1715 Kw
Auxiliary Engine Power:
746kw
Generator:
50kw
Hydraulic Cutter Powerr:
440kw

PRODUCT SHOW

Factory Manufacture Cutter Suction Dredger Sand Dredging Barge for Sale

cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process sand mud gravel from all kinds of dredging project . cutter suction dredger adopts good quality device to achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of Cumins diesel engine ( Otherwise can provide carter Weichai and others  diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the America or Germany . all configurations can reach the low failure low fuel consumption high capacity and high efficiency.

Cutter suction dredger is generally non-mobile, mostly used for reclamation projects, suitable for

digging sandy soil, silt and other soil relatively loose river bottom.

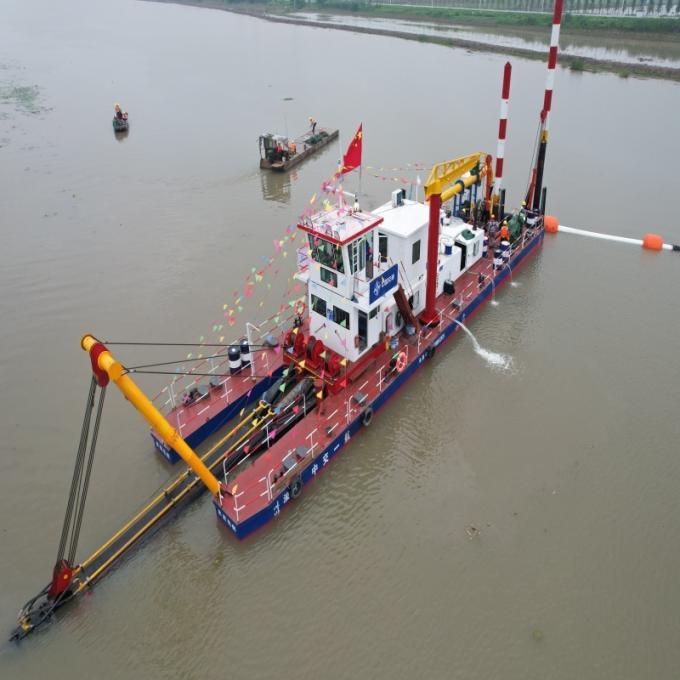

Sand Dredging Barge 26 Inch Csd Dredger Long Life 0

Model list for hydraulic cutter suction dredger
ModelInch

Diameter

pipe

Water flowSolid
capacity

Total

power

Dredging

depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

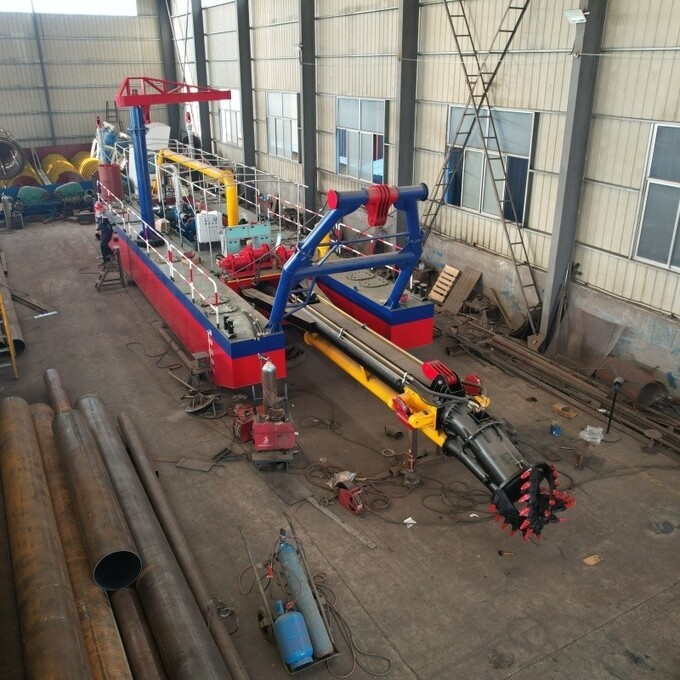

Sand Dredging Barge 26 Inch Csd Dredger Long Life 1

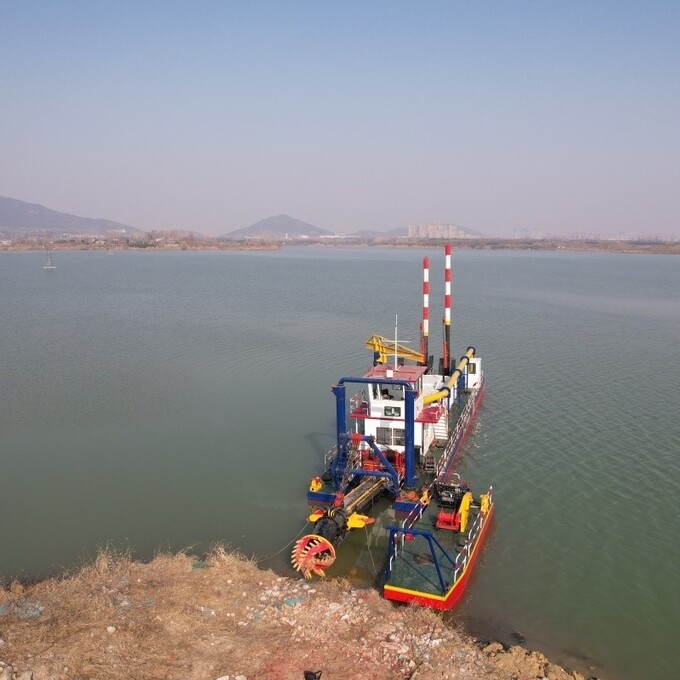

Sand Dredging Barge 26 Inch Csd Dredger Long Life 2

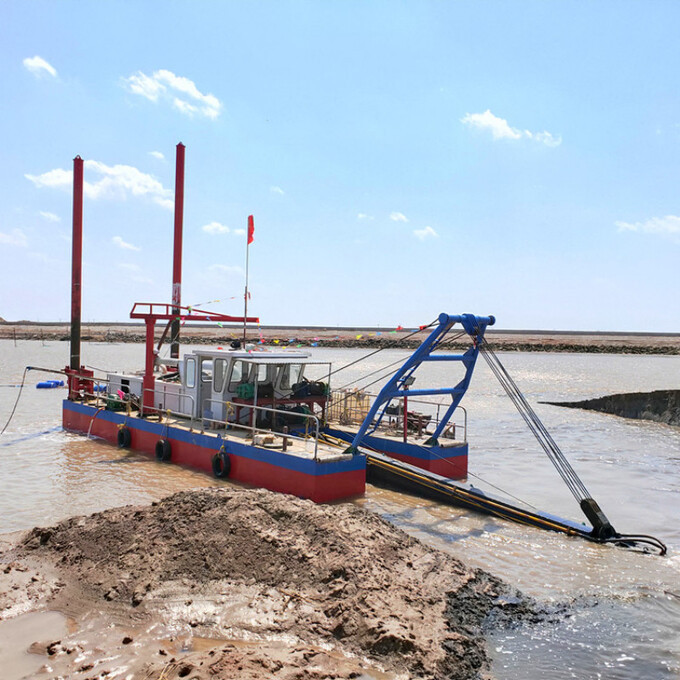

Sand Dredging Barge 26 Inch Csd Dredger Long Life 3

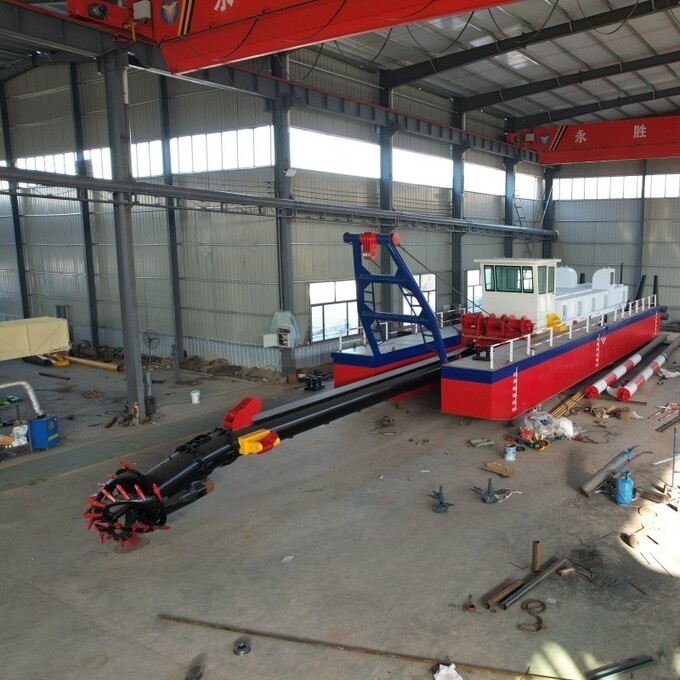

Sand Dredging Barge 26 Inch Csd Dredger Long Life 4

Shandong Yongsheng Dredging Machinery Equipment Co., Ltd. is located in Ma Song Industrial Park,

Huanglou Street, Qingzhou City, Weifang City, Shandong Province, China. Yongsheng was established in 1995,which is a comprehensive manufacturer that integrating R&D, production, sales and after-sales service.Designing and manufacturing of cutter suction dredgers and aquatic weed harvester are the company's main business.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?

2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
