Diesel Engine 400mm Cutter Dredger With Mud Pump

Product Details

Place of Origin: shandong

Brand Name: yongsheng

Model Number: YSCSD400

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: container

Delivery Time: 50days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:400mm Cutter Dredger,Mud Pump Cutter Dredger,Diesel Engine Cutter Dredger


Water Flow:
2500-3000 M3/h
Solid Capacity:
500 Cbm/h
Max. Dredging Depth 45°:
14 M
Discharge Distance:
1,400 M
Dredger After Assembly:
41*6.8*1.8 M Length* Width* Depth
Average Draught:
1.1 M

PRODUCT SHOW

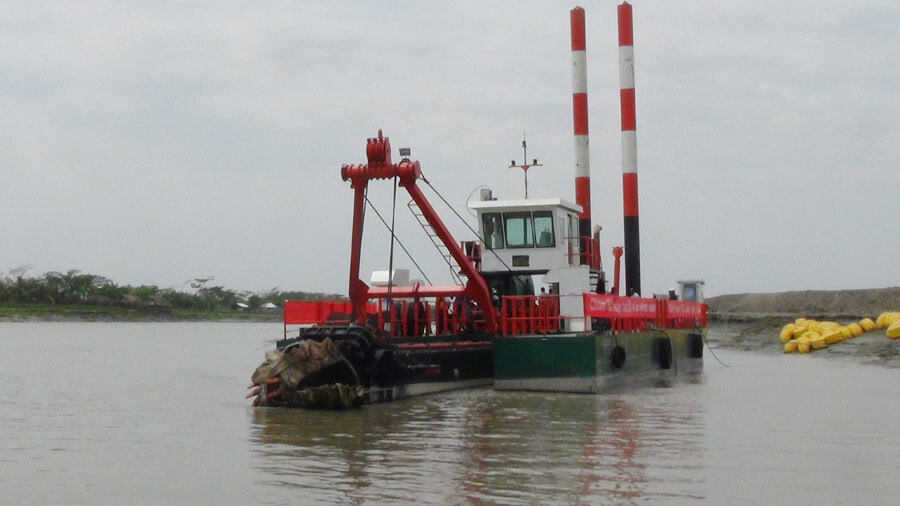

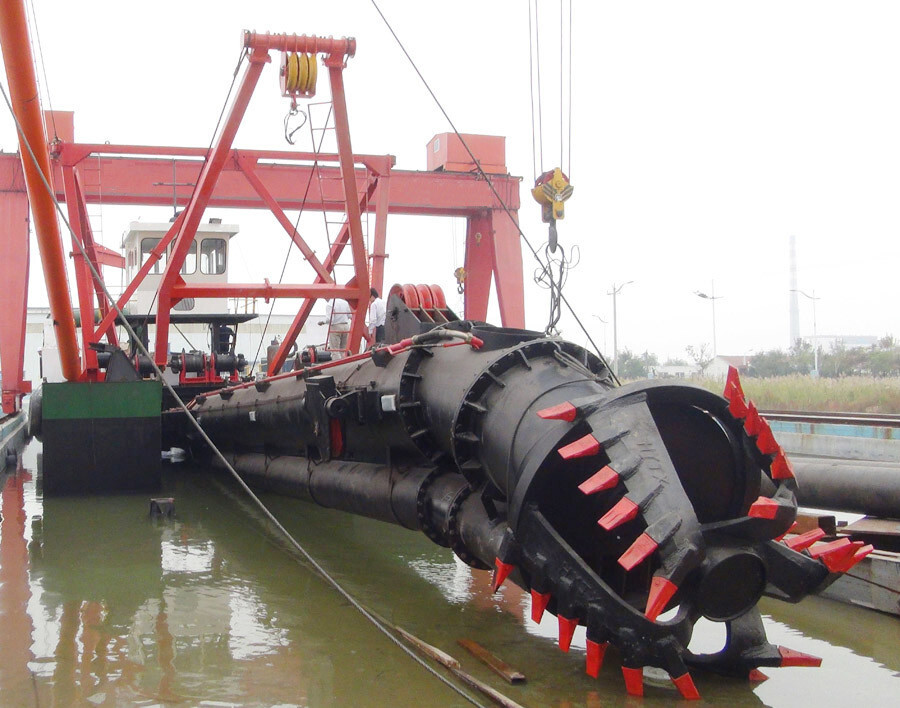

Diesel Engine Cutter Suction Dredger with Mud Pump

description

cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process sand mud gravel from all kinds of dredging project .Yongsheng cutter suction dredger adopts good quality device to achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of Cumins diesel engine ( Otherwise can provide carter Weichai and others  diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the America or Germany . all configurations can reach he low failure low fuel consumption high capacity and high efficiency.

parameters

YSCSD400  solid capacity 500 cbm/h hydraulic cutter suction dredger

Technical specifications

Water flow

2500-3000 m3/h

Solid capacity

500 cbm/h

Max. dredging depth 45°

14 m

Discharge distance

1,400 m

LOA

41 m

Dredger after assembly

41*6.8*1.8 m Length* width* depth

Dredger structure

Dismantle type and can be assembly in working site

Average draught

1.1 m

Diameter discharge pipe

400mm/16inch

Main Engine

746 kw Cummins engine

Rotate speed

1800 r/min

Auxiliary engine power

287 kw  Cummins engine

Generator

16 kw

Hydraulic cutter power

120 kw

Total power

1,057 kw

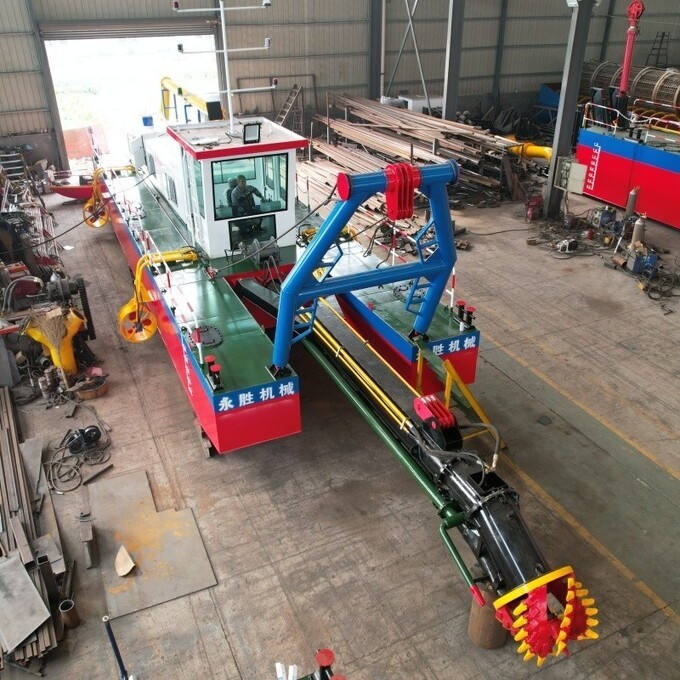

Diesel Engine 400mm Cutter Dredger With Mud Pump 0

Installation
Our cutter suction dredger are installing for foreign customers. Our factory will send the experience installation team

to the abroad quickly when the device arrived use the shortest time to finish the high quality installation .
