Csd450 Sand 18 Inches Cutter Suction Dredger Boat

‹

›

‹

  • Csd450 Sand 18 Inches Cutter Suction Dredger Boat
  • Csd450 Sand 18 Inches Cutter Suction Dredger Boat
  • Csd450 Sand 18 Inches Cutter Suction Dredger Boat
  • Csd450 Sand 18 Inches Cutter Suction Dredger Boat

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd450

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 560000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:Sand Cutter Suction Dredger,Csd450 Cutter Suction Dredger,18 Inches Cutter Suction Dredger

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
3500m3/h
Solid Capacity:
700cbm/h
Max.Dredging Depth 45°:
15m
Discharge Distance:
1500m
Dredger After Assembly:
43.5*7.5*2 M Length*width*depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1.2m
Diameter Discharge Pipe:
450mm/18inch
Total Power:
1057kw
Main Engine:
1,007kw
Auxiliary Engine Power:
425 Kw
Generator:
30 Kw
Hydraulic Cutter Powerr:
160 Kw


PRODUCT SHOW

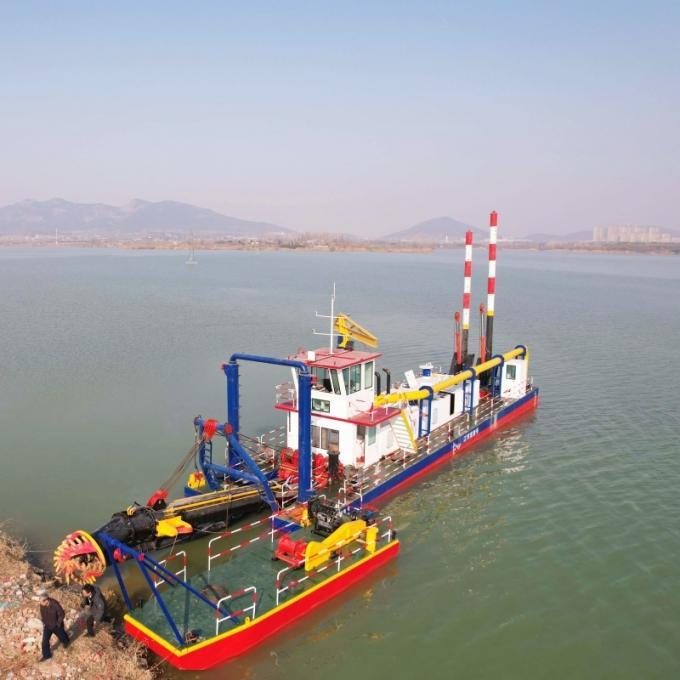

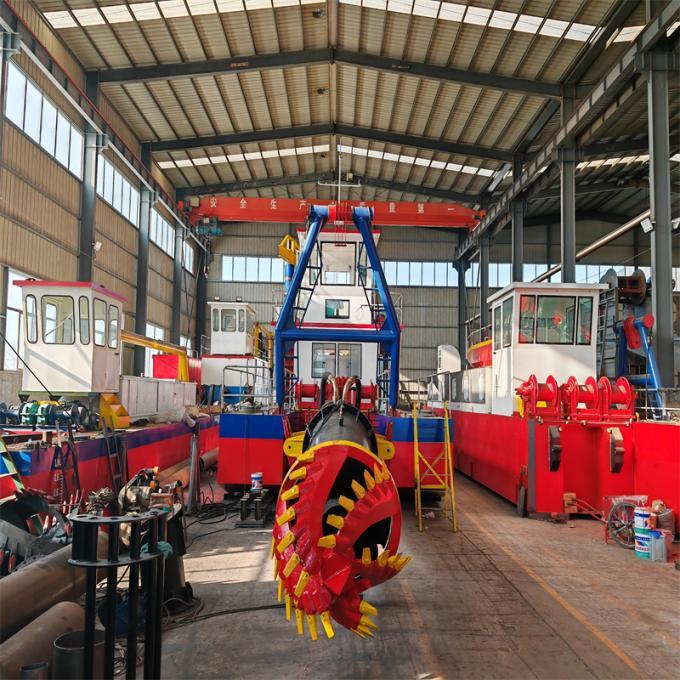

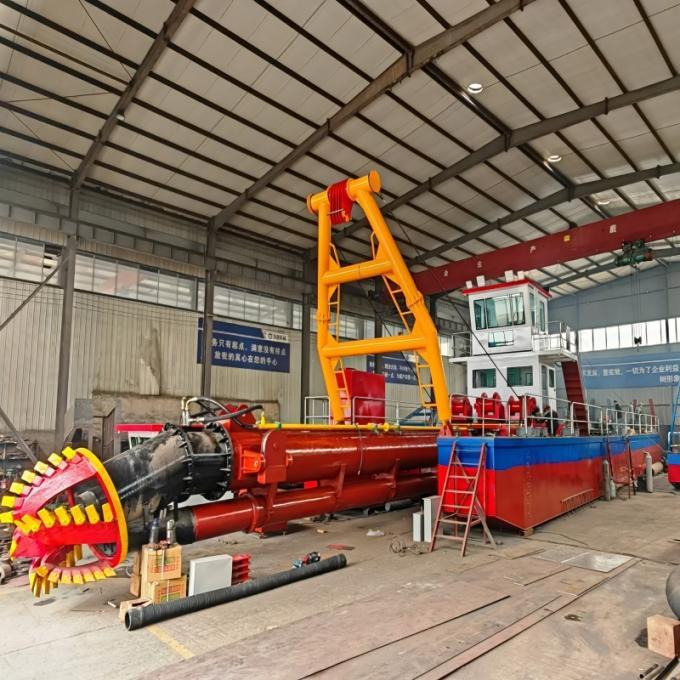

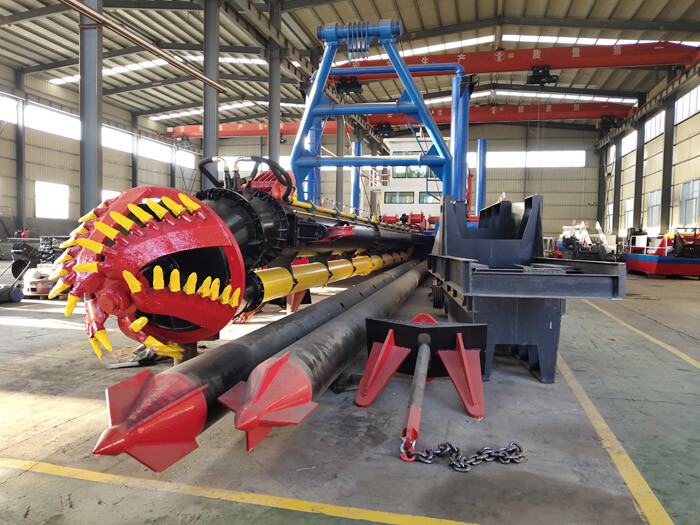

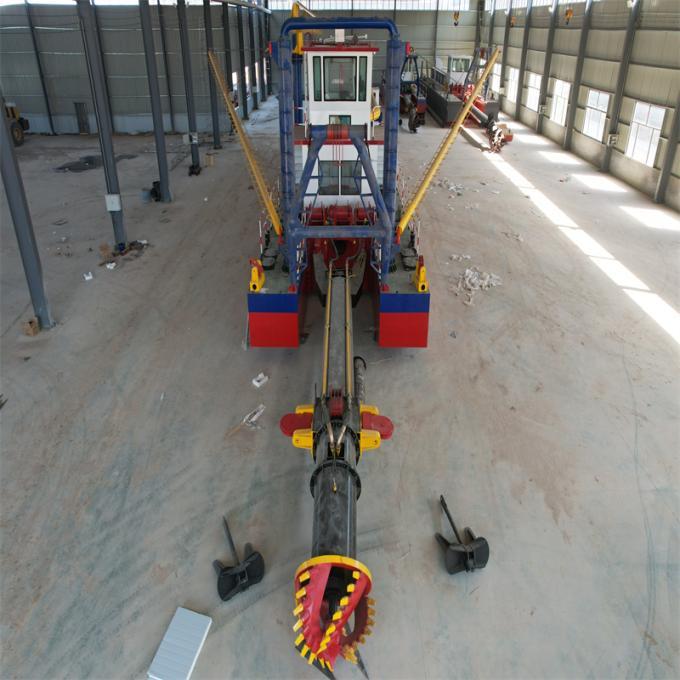

Csd450 Sand Suction Dredger Boat With Cheap Price

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.

The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating

the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe

is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.


Project Applications:
Port and harbour construction and maintenance
Land reclamation
Coastal protection
Offshore trenching
Environmental dredging
Lakes and reservoirs construction and maintenance
Aggregate dredging.


Model list for hydraulic cutter suction dredger
ModelInchDiameter pipeWater flowSolid
capacity		Total powerDredging depthDischarge distance
YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m







FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
