250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine

‹

›

‹

  • 250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine
  • 250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine
  • 250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine
  • 250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine

›


Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd250

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 118015usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:10 Inch Cutter Suction Dredger,250mm Cutter Suction Dredger,Sand Cutter Suction Dredger

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
800-1000m3/h
Solid Capacity:
160 Cbm/h
Max.Dredging Depth 45°:
8m
Discharge Distance:
1100 M
Dredger After Assembly:
23.5*4.8*1.25m Length*width*depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
0.8m
Diameter Discharge Pipe:
250mm/10inch
Total Power:
367 Kw
Main Engine:
261 Kw
Auxiliary Engine Power:
90kw
Generator:
16 Kw
Hydraulic Cutter Powerr:
37 Kw


PRODUCT SHOW


10 Inch Sand Suction Dredger Machine For Sale

The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation. The
design,construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS.
The hull,machinery equipment and other spares are at the requirements of CCS as well. The hull is square, cross keel,
which is full welding steel structure, and authorized by CCS.

Advantage
* Heavy-duty, high concentration ratio, excellent particle allowance, and long discharge distance
* Optimal configuration of power and hydraulic unit (less operating costs)
* Dismountable structure, easy to disassemble, and transportation.
* Double powerful auger drive (infinitely for- and backward)
* High working range of the outrigger arm
* Equipped with a self-propulsion system that can be moved to a different work site or drag by tugboat
* Cutter suction head can be changed for different situation
* Easy access to all parts, especially the dredge pump wearing parts.
* Freshwater cooling system.
* Safe and easy to operate
*Can be designed and fabricated according to your requirements

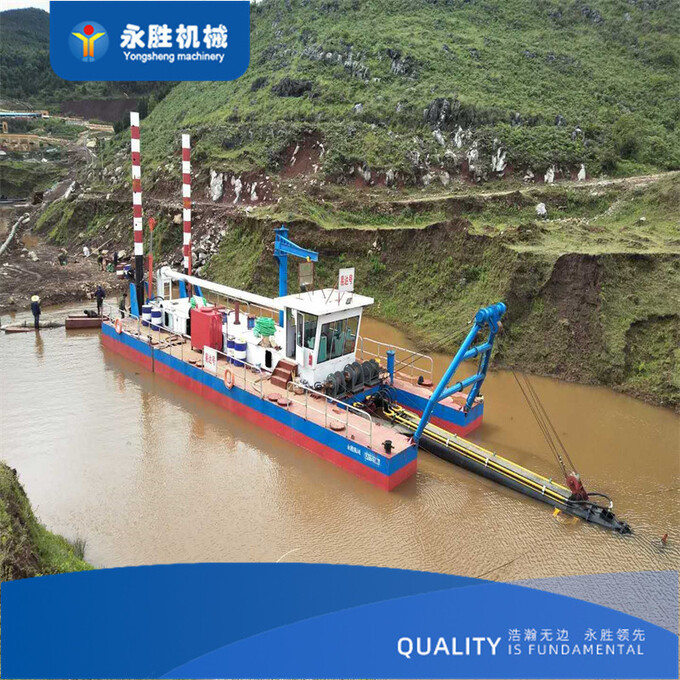

250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine 0

Model list for hydraulic cutter suction dredger
ModelInchDiameter pipeWater flowSolid
capacity		Total powerDredging depthDischarge distance
YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc. Cutter suction dredger

can process sand mud gravel from all kinds of dredging project.

2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .

3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel engine ( otherwise can

provide carter Weichai and others  diesel engine brand) Shijiazhuang slurry pump and hydraulic pump from the America

or Germany. All configurations can reach the low failure low fuel consumption high capacity and high efficiency.

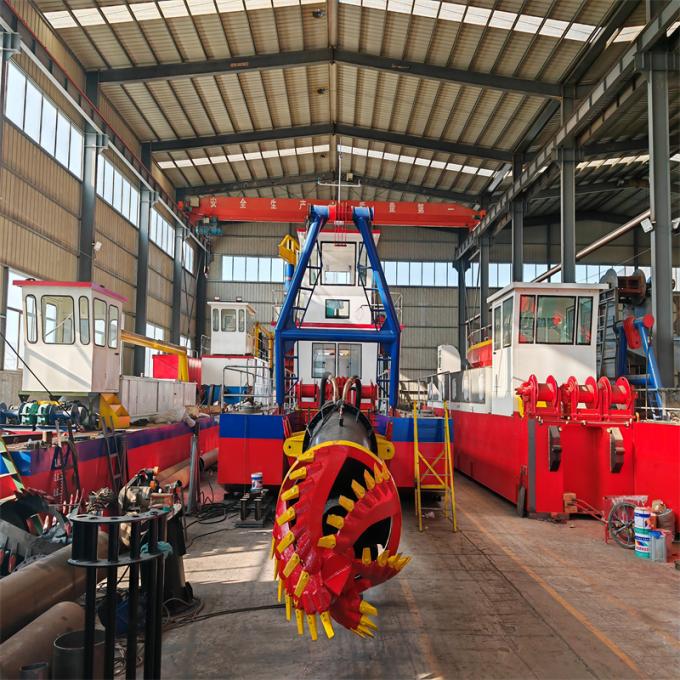

250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine 1

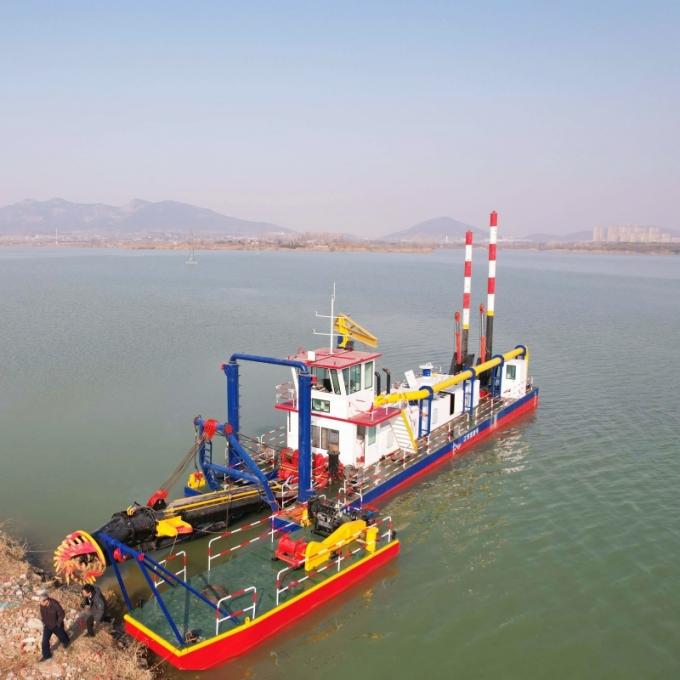

250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine 2

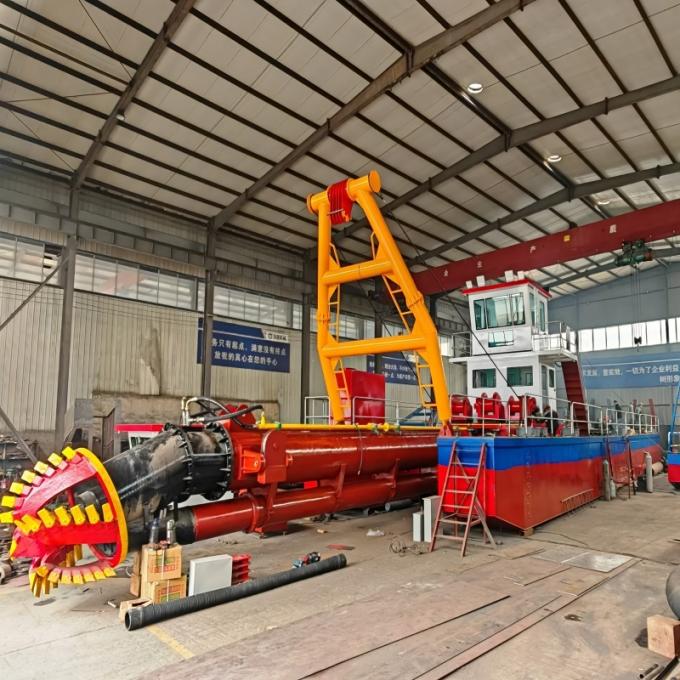

250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine 3

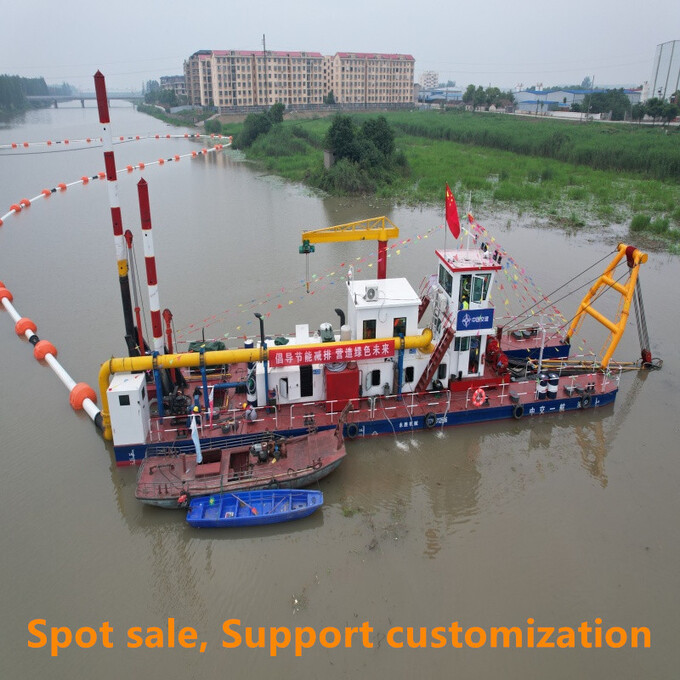

250mm 10 Inch Sand Hydraulic Cutter Suction Dredger Machine 4

Our Service Gaurantee:


*  Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.
