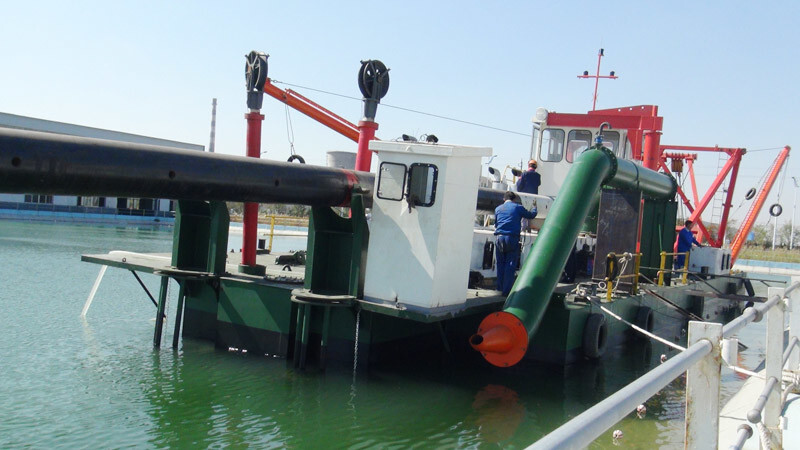

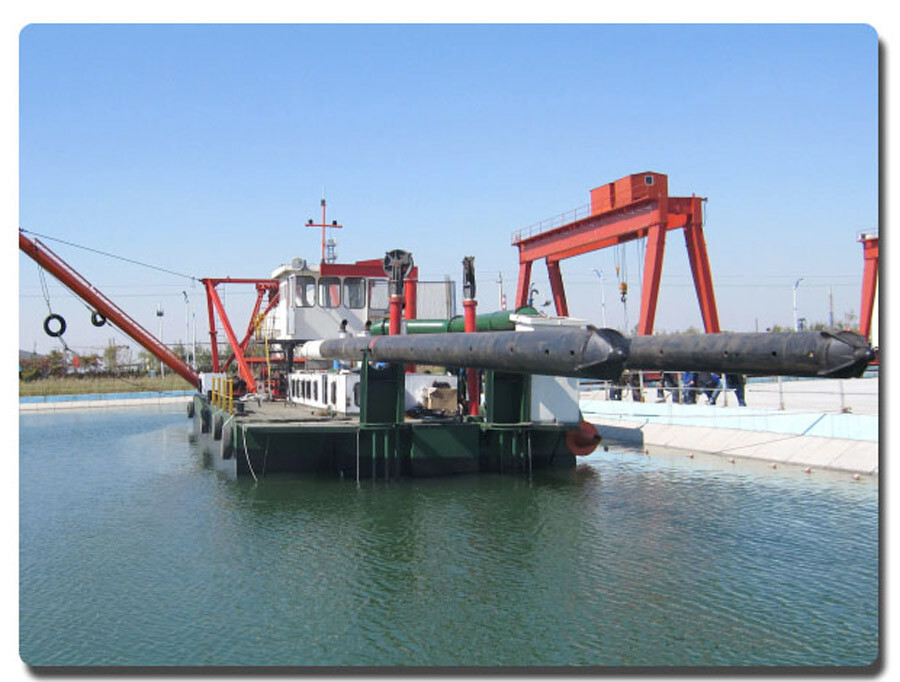

Advanced Cutter Suction Dredger for Land Reclamation and River Regulation

product description

Cutter Suction Dredger (CSD) is a highly efficient underwater dredging vessel, mainly used for channel dredging,port construction, land reclamation and other projects. It cuts underwater sand with a rotating cutter and uses a powerful dredging pump to suck up the mud and transport it to the designated location.

product parameters

Working Principle

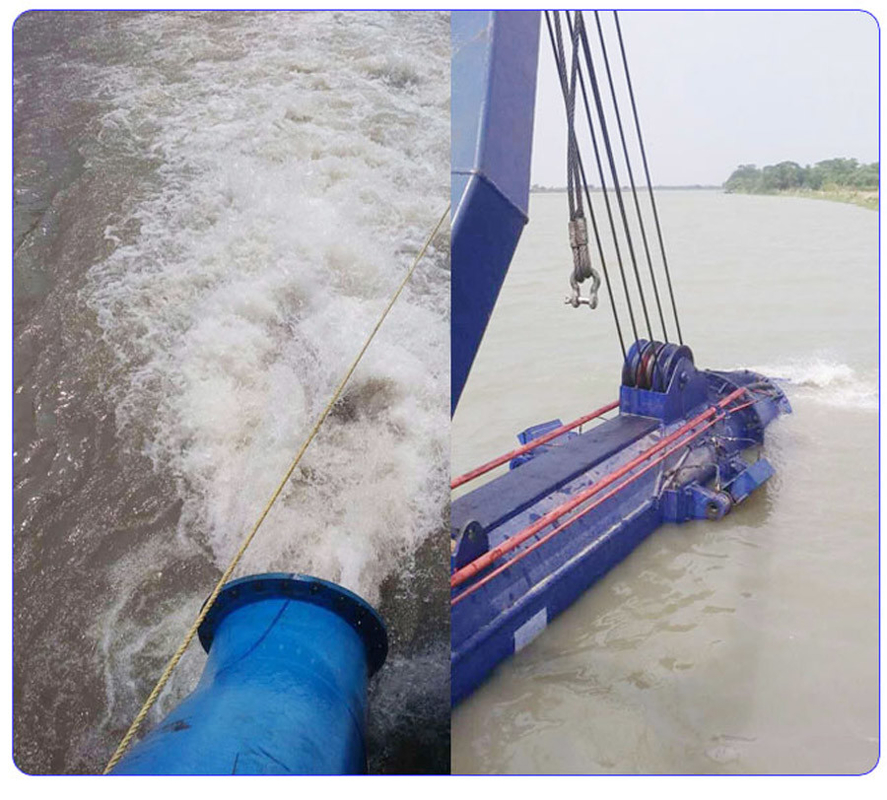

The cutter suction dredger primarily accomplishes dredging tasks through the coordinated operation of a cutter device and a dredge pump. The ladder frame at the bow extends below the water surface, where the rotating cutter head—powered by a drive system—cuts and agitates underwater sediments, loosening compacted soil, sand, or even rock layers. Simultaneously, the onboard dredge pump generates strong suction pressure, drawing the loosened slurry through the suction pipe and transporting it via discharge pipelines over distances ranging from hundreds to thousands of meters to designated areas, such as s poil grounds or reclamation sites. This integrated process—excavation, transportation, and discharge— is completed seamlessly without requiring additional vessels for intermediate transfers, significantly enhancing operational efficiency.

Technical features
Efficient and continuous operation: The cutter suction dredger can work 24 hours a day, and its efficiency is far higher than that of grab or chain bucket dredgers.

Adapt to complex geology: By replacing the auger head, it can cope with soil layers of different hardness and even break rocks.

Environmental protection: It can control the spread of mud and reduce the impact on the water ecology.

High degree of automation: Modern ships are equipped with intelligent control systems to monitor dredging depth, concentration and other parameters in real time.

company profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing experience in water area environmental protective equipment. It is a professional supplier of integrated with  R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
