12 Inch Sand Mud Cutter Suction Dredger For Sale

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd300


Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 182529usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight: 12 inch sand mud dredger, cutter suction dredger for sale, sand mud cutter dredger

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
1200-1500m3/h
Solid Capacity:
240 Cbm/h
Max.Dredging Depth 45°:
10m
Discharge Distance:
1100m
Dredger After Assembly:
28.5*5.5*1.5m Length*width*depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1m
Diameter Discharge Pipe:
300mm/12inch
Total Power:
591 Kw
Main Engine:
447 Kw
Auxiliary Engine Power:
120kw
Generator:
16 Kw
Hydraulic Cutter Powerr:
55 Kw

PRODUCT SHOW

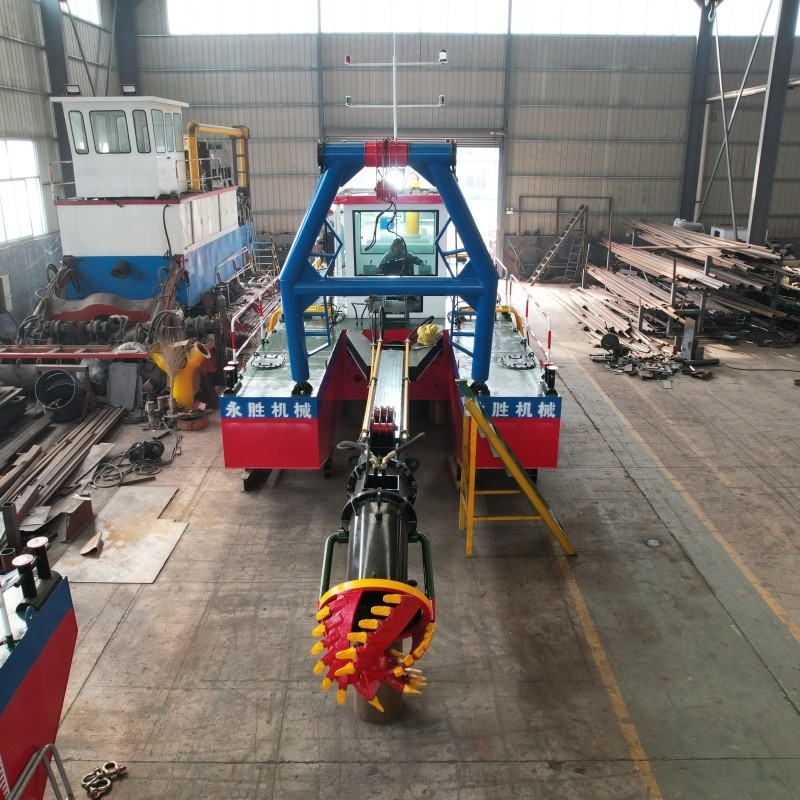

12 Inch Sand Mud Cutter Suction Dredger For Sale


Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses the front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device to cut and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud transport, mud unloading, and other work processes can be completed continuously at one time. It is a high-efficiency, low-cost dredger and a good underwater excavating machine. The split structure makes the installation and transportation of the cutter suction boat simpler and more flexible, can be easily transported to any location. With its robust design, it is the preferred choice in its class due to low maintenance, excellent fuel consumption, and high productivity levels.

pl183937683-remark

Model list for hydraulic cutter suction dredger
ModelInchDiameter pipeWater flowSolid
capacity
Total powerDredging depthDischarge distance
YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

20250507132515_47206

20250507132541_75718

20250507132609_31015

pl177800338-remark



1. Our factory cutter suction dredger is widely used for river lake port and inside waterways etc. Cutter suction

dredgercan process sand mud gravel from all kinds of dredging project.

2. Our factory cutter suction dredger adopts good quality device to achieve the highest performance .

3. Let the customer spends the lowest cost to get the highest profit configuration of cumins diesel engine ( otherwise

can provide carter Weichai and others  diesel engine brand) Shijiazhuang slurry pump and hydraulic pump from

the America or Germany. All configurations can reach the low failure low fuel consumption high capacity and high

efficiency.


*  Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
