Working Capacity 500 Cbm/H Driven Diesel Engine Customizable Cutter Suction Sand Dredger

Location: HOME > PRODUCTS > Sand Dredger > Working Capacity 500 Cbm/H Driven Diesel Engine Customizable Cutter Suction Sand Dredger

PRODUCTS

Working Capacity 500 Cbm/H Driven Diesel Engine Customizable Cutter Suction Sand Dredger

Product Details

Place of Origin: China

Brand Name: yongsheng dredger

Certification: CCS

Model Number: YSCSD400

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: 300000-1000000 US Dollars

Packaging Details: In container or in bulk

Delivery Time: 50 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30 sets per year

+8613953662777

+8613953662777

+8613953662777

yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:diesel sand suction dredger,customizable sand and gravel dredging,customizable sand dredger ship

Stand Colour:	Blue And Orange
Special Colour:	Custom Building
Function:	Sand Dredging
Driven:	Diesel Engine
Hydraulic Systems:	Equipped
Structure:	Dismantle Type
Transportation:	In Bulk
Working Capacity:	500 CBM/H Solid Sand
Anchor Boom:	Equipped
Spud Carriage:	Equipped
HDPE Pipeline:	Equipped
Maximum Dredging Depth:	14 Meters

PRODUCT SHOW

Working Capacity 500 CBM/H Driven Diesel engine Customizable Cutter Suction Sand Dredger for Your Special Requirements

Name: Working Capacity 500 Cbm/H Driven Diesel Engine Customizable Cutter Suction Sand Dredger
SKU: 0

1. The working locations of the suction type sand dredger can be: sea, port, lake, pond or river.

The sand dredgers we produce are diesel engine driven, self-propelled or non self-propelled, portable hydraulic twist suction sand dredgers. The hull adopts a detachable and box shaped structure, which can be disassembled for transportation and assembled at the work site.

It can also be equipped with anchor rods and pile supports to increase capacity.

2. Special requirement for cutter suction dredger can be custom building

Standard Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4 m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6 m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8 m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12 m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14 m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15 m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15 m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15 m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

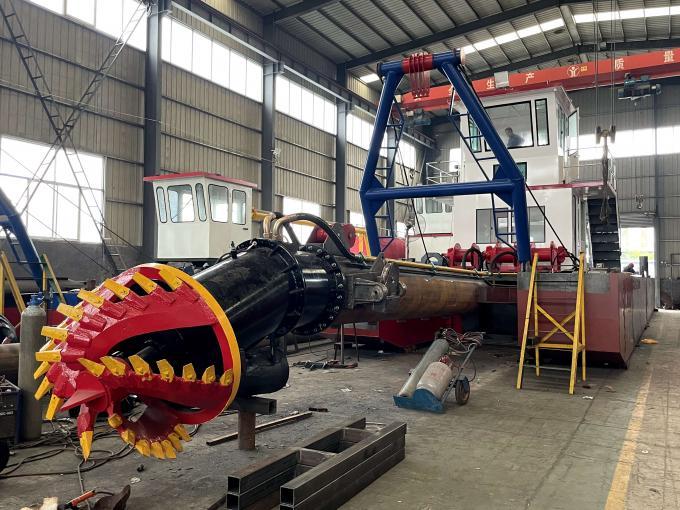

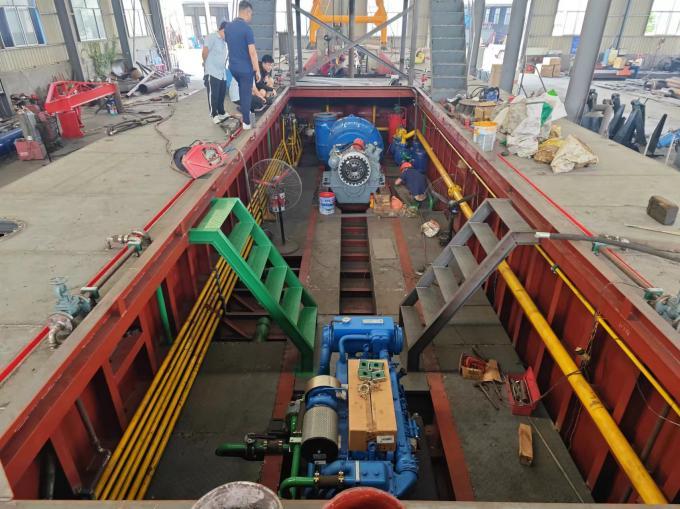

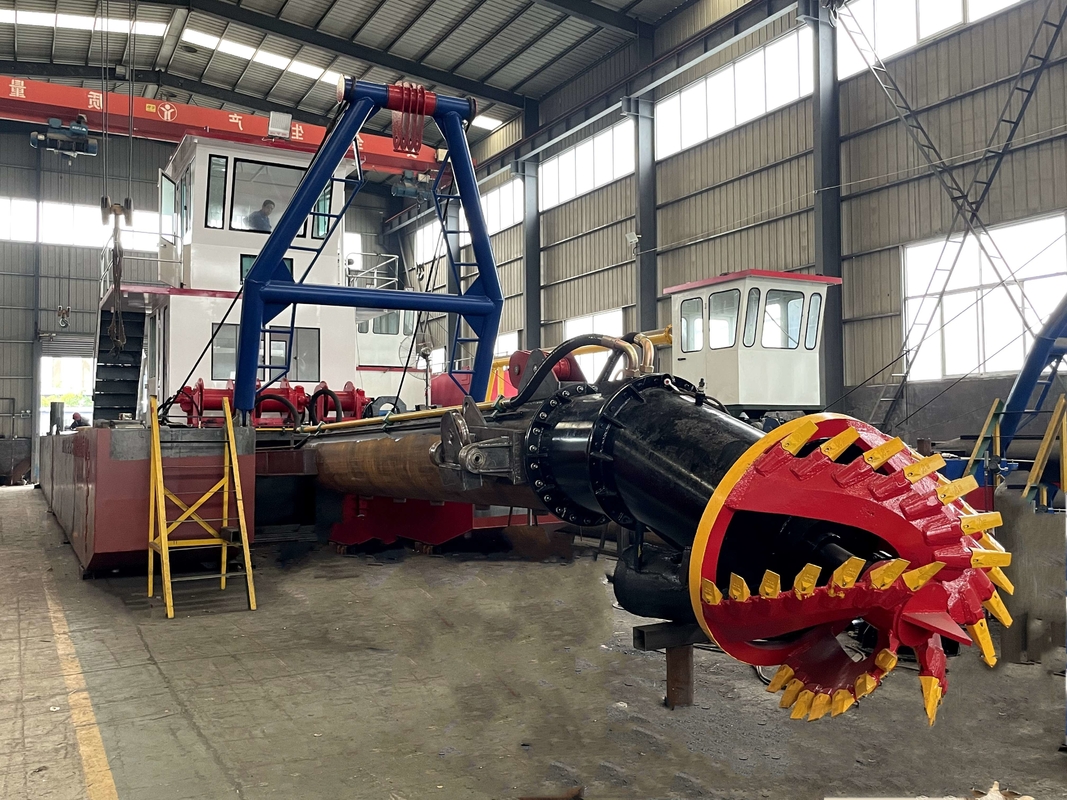

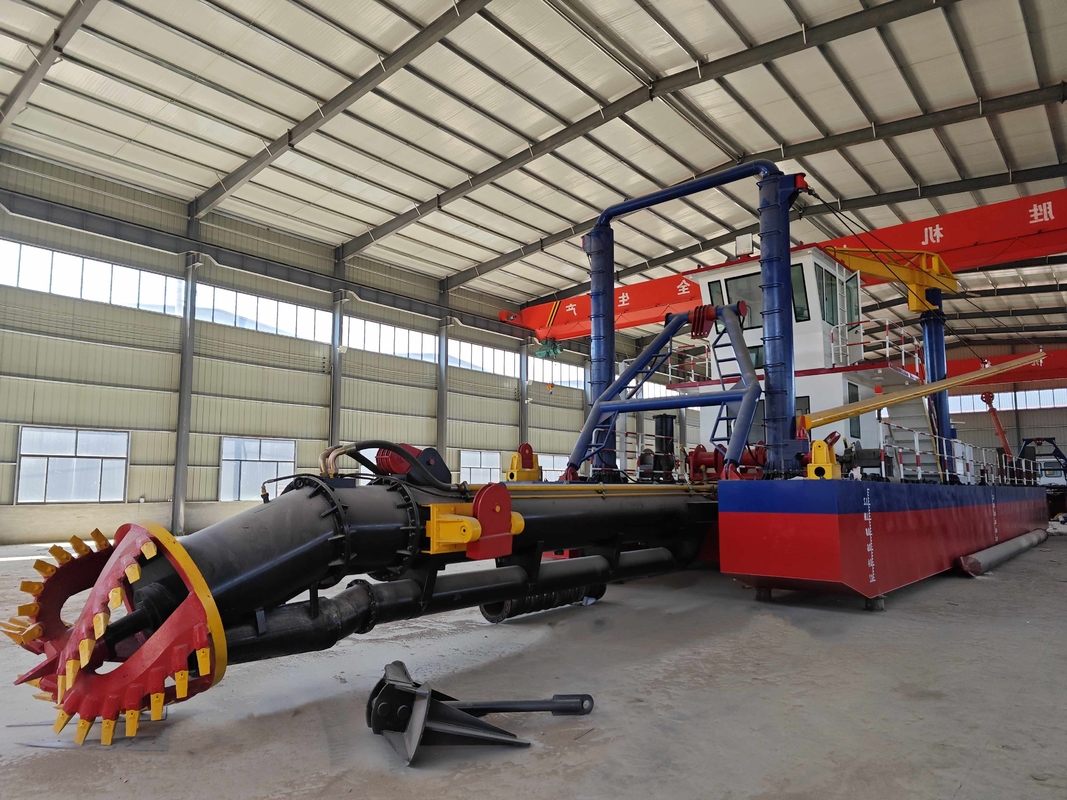

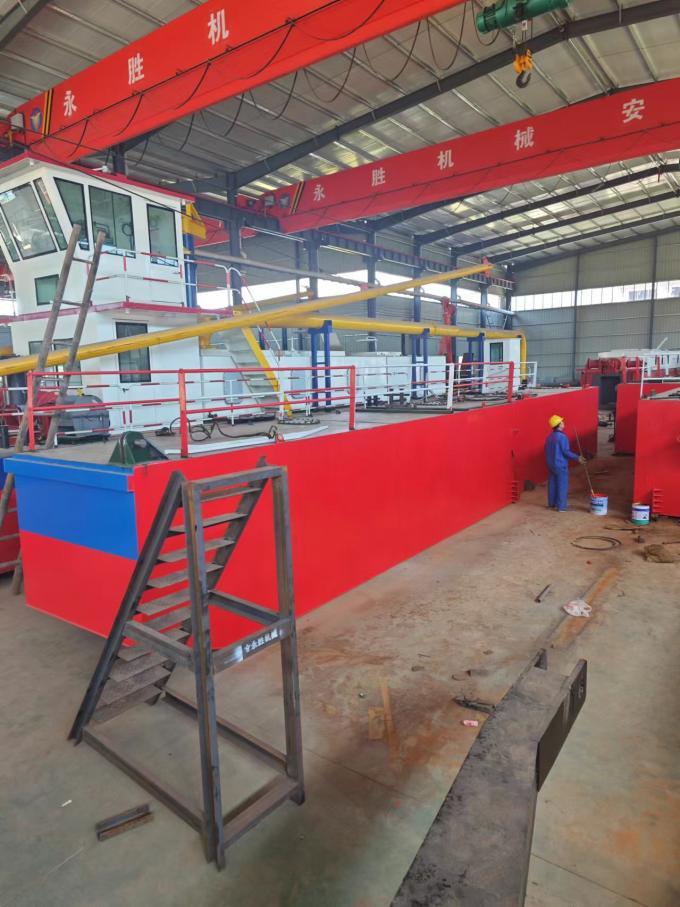

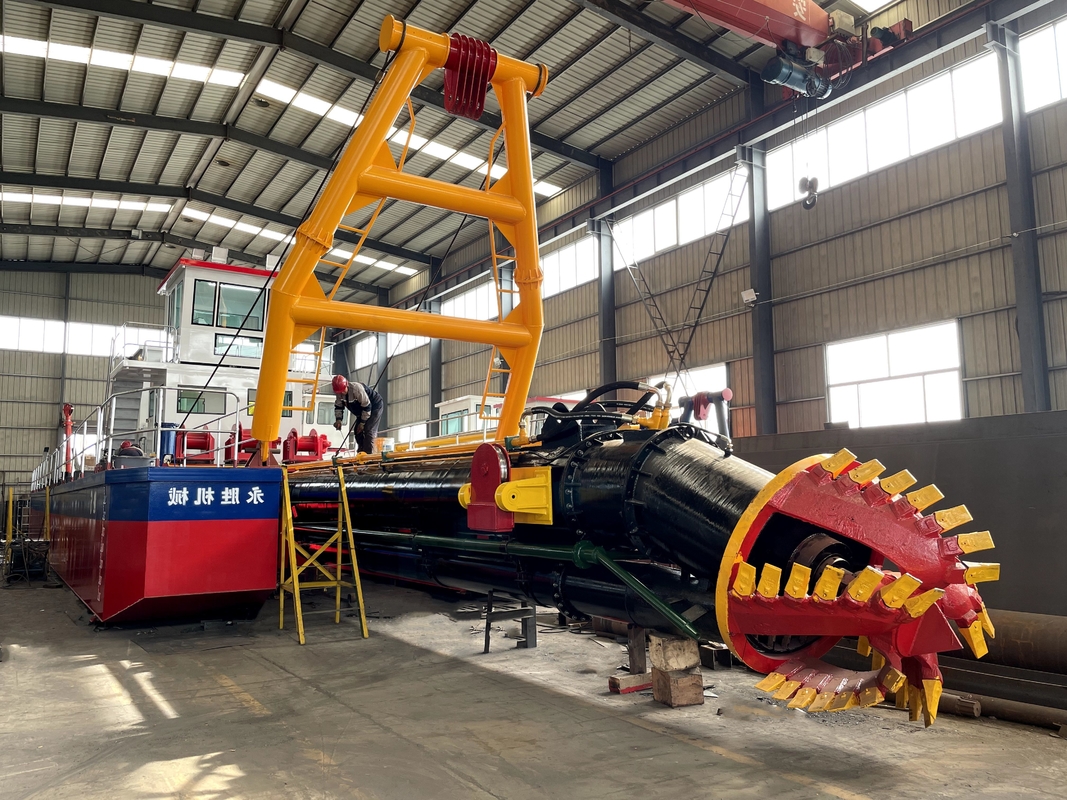

3. Our factory produces twisted suction sand dredgers

4. Technical Specification for YSCSD400 Hydraulic Twisted Suction Sand Extraction Ship with Actual Ship Capacity of 500cbm/h

*YSCSD400* solid capacity 500 cbm/h hydraulic cutter suction dredger**
Technical specifications
Water flow	2,500 m3/h
Solid capacity	500 cbm/h
Max. dredging depth 45°	14 m
Discharge distance	1,500 m
LOA	41 m
Dredger after assembly	416.81.8 m m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	1.2 m
Diameter discharge pipe	400 mm/16 inch
Main Engine	746 kw Cummins engine
Rotate speed	1800 r/min
Auxiliary engine power	287 kw Cummins engine
Generator	24 kw
Hydraulic cutter power	120 kw
Total power	1,057 kw

5. Packing and Shipping:

Product Packaging:

The Sand Dredger product will be packed in a durable wooden crate to ensure that it arrives at its destination safely. Inside the crate, the product will be securely fastened with straps and foam padding to prevent any damage during transportation.

Shipping:

We offer both domestic and international shipping for the Sand Dredger product. Domestic shipping will be handled by a trusted courier service and will take approximately 2-5 business days to arrive. International shipping will be handled by our shipping partner and will take approximately 7-14 business days to arrive, depending on the destination country.
