Sand Dredger for Riverbed Mining with 1500m sup3 Water Flow Rate and 12-inch Conveying Capacity

Location: HOME > PRODUCTS > Sand Dredger > Sand Dredger for Riverbed Mining with 1500m sup3 Water Flow Rate and 12-inch Conveying Capacity

PRODUCTS

Sand Dredger for Riverbed Mining with 1500m sup3 Water Flow Rate and 12-inch Conveying Capacity

Product Details

Place of Origin: China

Brand Name: yongsheng dredger

Certification: CCS

Model Number: YSCSD300

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: 300000-1000000 US Dollars

Packaging Details: In container or in bulk

Delivery Time: 50 days

Payment Terms: L/C, T/T

Supply Ability: 30 sets per year

+8613953662777

+8613953662777

+8613953662777

yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:1500m sup3 Sand Dredger,Riverbed Mining Sand Dredger

Stand Colour:	Blue And Orange
Special Colour:	Custom Building
Function:	Sand Dredging
Driven:	Diesel Engine
Hydraulic Systems:	Equipped
Structure:	Dismantle Type
Transportation:	In Bulk
Working Capacity:	200 CBM/H Solid Sand
Anchor Boom:	Equipped
Spud Carriage:	Equipped
HDPE Pipeline:	Equipped
Maximum Dredging Depth:	15 Meters

PRODUCT SHOW

Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 1500m ³ and a 12 inch Conveying

Name: Sand Dredger for Riverbed Mining with 1500m sup3 Water Flow Rate and 12-inch Conveying Capacity
SKU: 0

1. Product Description:

Working places of cutter suction dredger can be: sea, port, lake, pond river.
Dredging material can be soil, layer sand, sludge, sea sand, river sand, clay, mud,and so on.
It can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.
The design, construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.

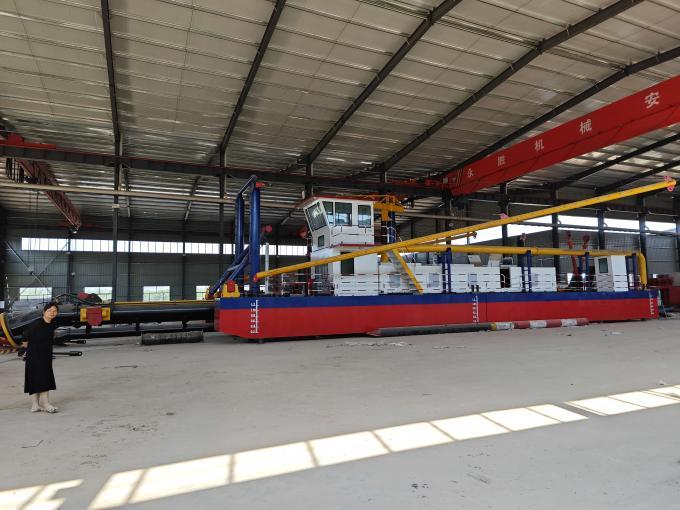

The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.

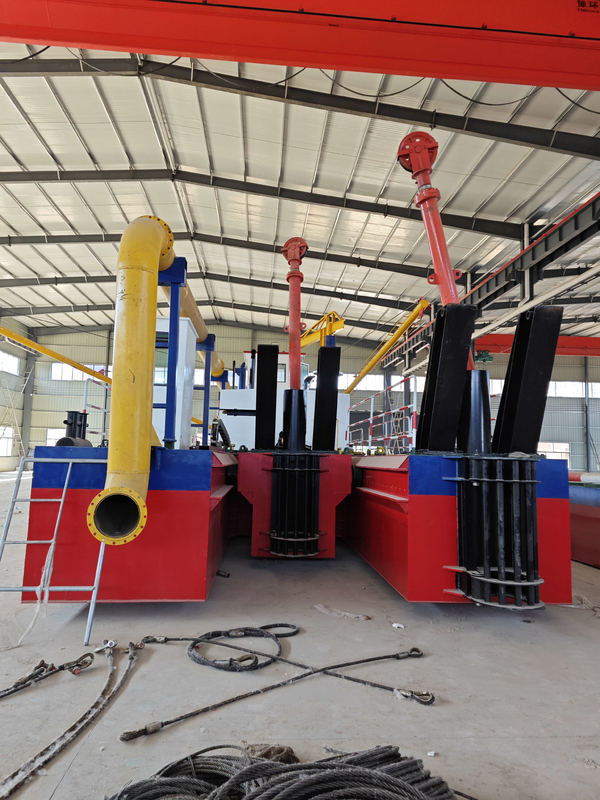

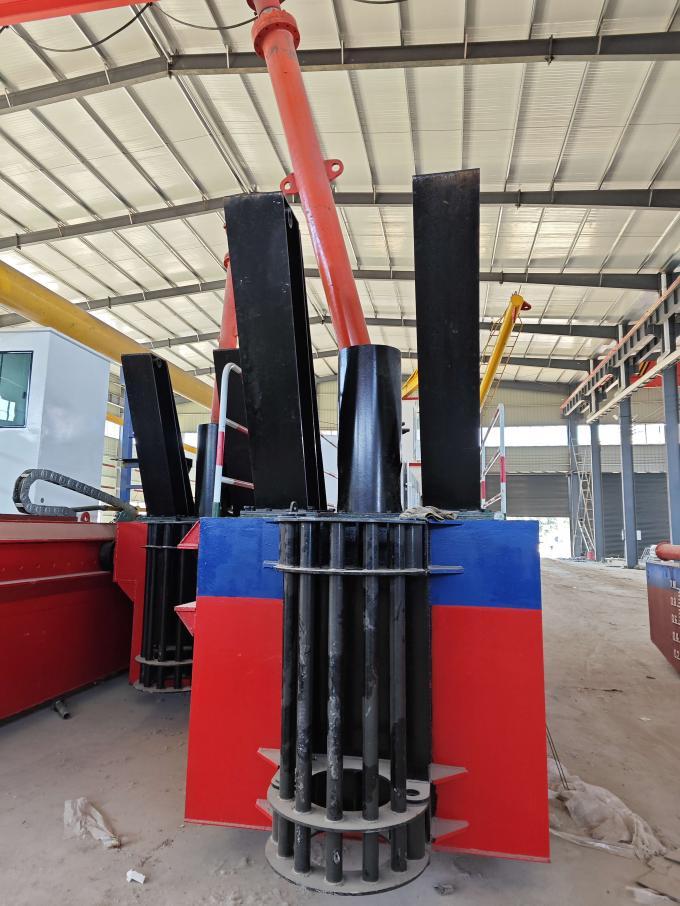

It can also be equipped with anchoring poles and spud carrier to increase capacity.

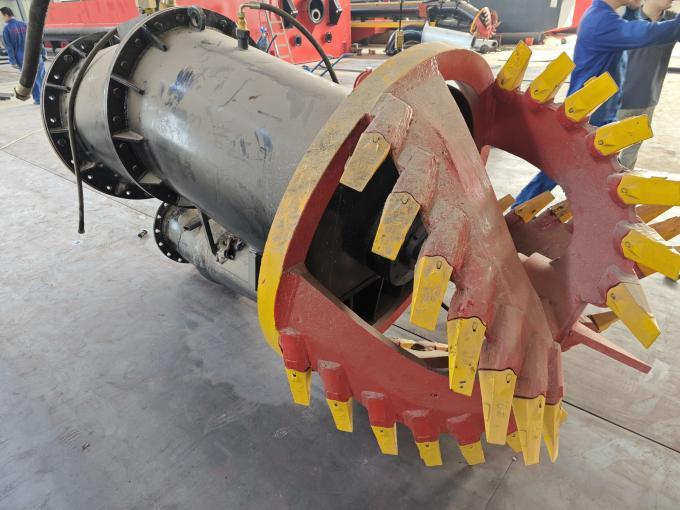

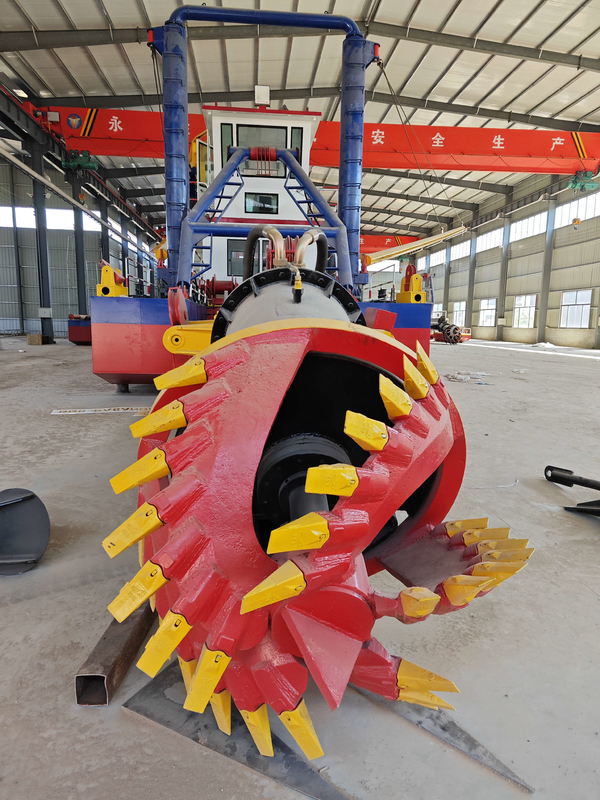

The cutter suction dredger is working. The cutter head at the front end of the equipment rotates, causing the silt to be mixed with water. The slurry pump then pumps up the slurry mixed with water, which is very useful in river dredging projects.

2. Special requirement for cutter suction dredger can be custom building

Standard Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4 m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6 m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8 m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12 m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14 m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15 m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15 m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15 m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

3. Our factory produces twisted suction sand dredgers

4. Technical Specification for YSCSD300 Hydraulic Twisted Suction Sand Extraction Ship with Actual Ship Capacity of 200cbm/h

YSCSD300 mud capacity 200 cbm/h hydraulic cutter suction dredgerTechnical specificationsWater flow1500 m3/hSolid capacity200 cbm/hMax. dredging depth 45°14 mDischarge distance1,200mLOA28.5mDredger after assembly28.5*5.5*1.5 m Length* width* depthDredger structureDismantle type and can be assembly in working siteAverage draught1.0 mDiameter discharge pipe300mm/12 inchMain Engine456 kw WeiChai engineRotate speed1500 r/minAuxiliary engine power122 kw WeiChai engineGenerator24 kwHydraulic cutter power55 kwTotal power602 kw

5. Features:

Product Name: Cutter suction dredger
Testing: Empty Running Before Ex-factory
Side Plate Thickness: 5 Mm
Discharge diameter: 12inch
Power Type: Diesel
Total Fuel Consumption: According To Engine Brand

This cutter suction dredger is the ultimate dredging vessel for mud, equipped with a powerful cutter head dredger to easily break through the toughest materials. It's perfect for any large-scale dredging project that requires heavy-duty equipment.

Experience the power and efficiency of the Cutter suction dredge today and get your project done right!
