Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity

‹

›

‹

  • Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity
  • Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity
  • Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity
  • Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:760 Cbm/H Sand Dredger,Multifunction Sand Dredger,Cutter Suction Sand Dredger

Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
3800m3/H
Solid Capacity:
760 Cbm/H
Max.Dredging Depth 45°:
15m
Discharge Distance:
1500m
Dredger After Assembly:
47*8.8*2 .5m Length*Width*Depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1 .6m
Diameter Discharge Pipe:
500mm/20inch
Total Power:
1648kw
Main Engine:
1193 Kw
Auxiliary Engine Power:
425kw
Generator:
30kw
Hydraulic Cutter Powerr:
220kw

PRODUCT SHOW

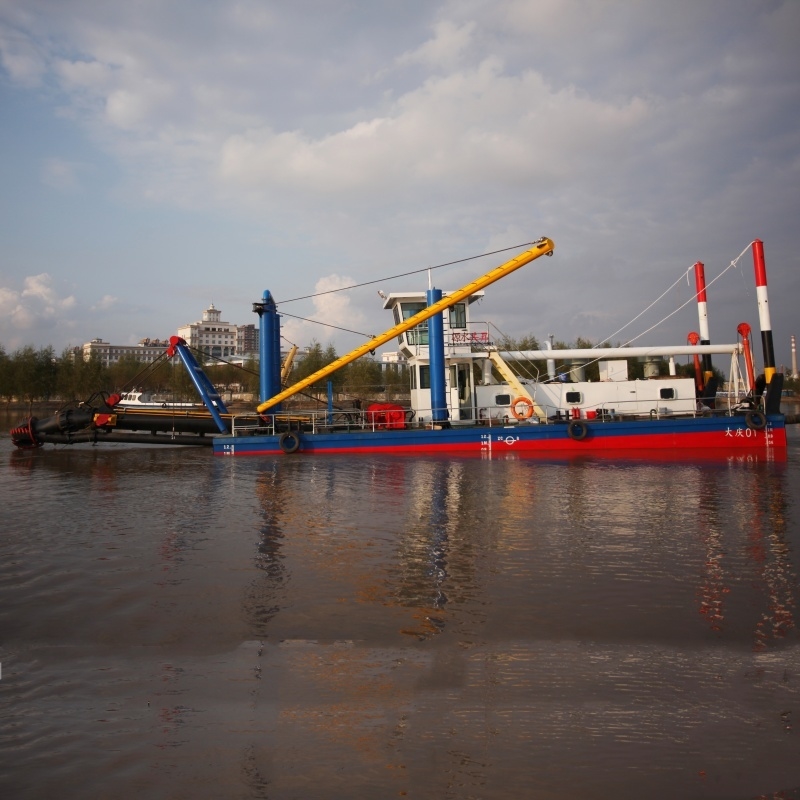

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity

The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.

The design, construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.

The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.

It can also be equipped with anchoring poles and spud carrier to increase capacity.


Model list for hydraulic cutter suction dredger
ModelInch

Diameter

pipe

Water

flow

Solid
capacity

Total

power

Dredging

depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

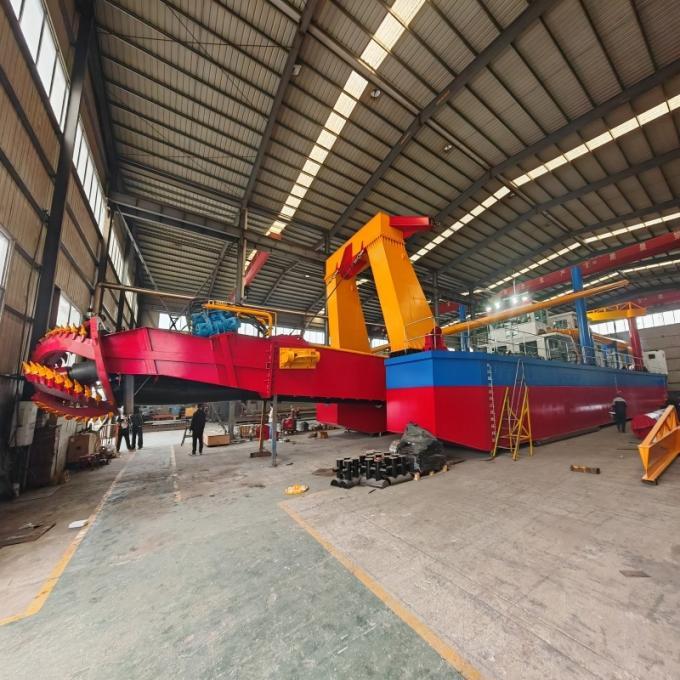

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity 0

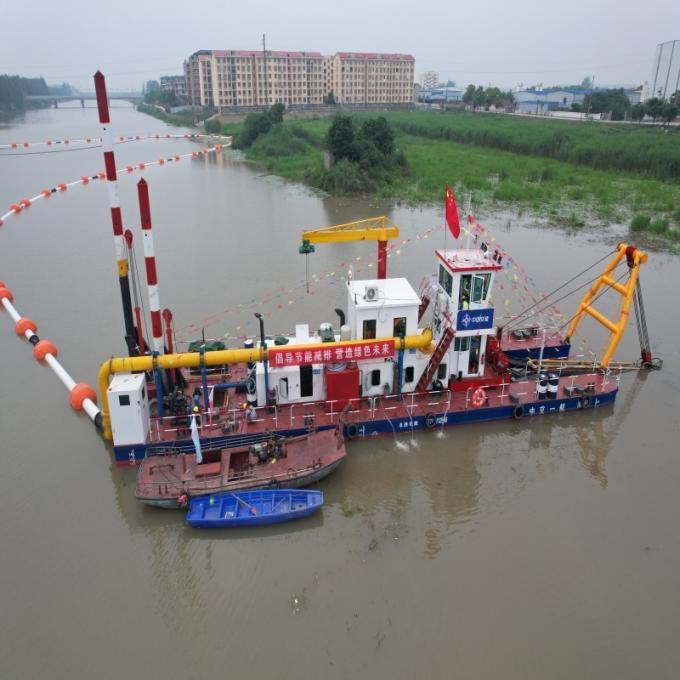

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity 1

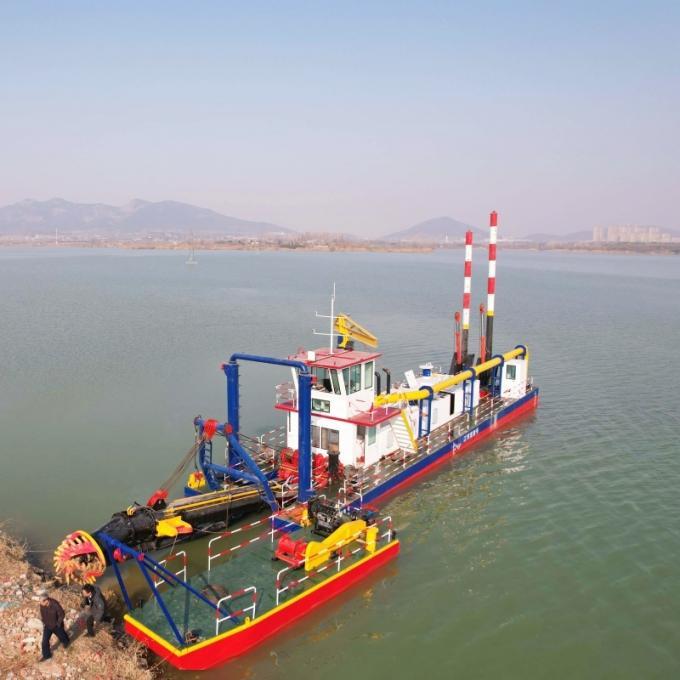

Multifunction Sand Dredger Cutter Suction Dredger With 760 Cbm/H Capacity 2


Product Advantages:
1.It has high sand extraction efficiency and can operate continuously for 20 hours, greatly improving

work efficiency.
2.The depth of sand extraction is large, ranging from 5-20 meters.
3.Strong environmental adaptability, with excellent extraction ability for sand, gravel, sandy soil, granular dispersed materials or materials prone to collapse.

4. Flexible and convenient operation, easy movement of the hull, and the ability to freely adjust the position in the work area.

5.The console can centrally control the equipment, making it convenient for operators to start, stop, and adjust the equipment. It can also monitor the operating status in real time.


afrer sale service:

Normally we offer 12 months warranty and free service after the dredger successfully commissioning and hand over to customers. We have our own service team which are with mature experience and good knowledge of dredgers.

And we can also extend offer training,operating,service program with skilled enginees as per your request.

If necessary, we can also extend the warranty&service time with negotiable conditions.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
