Name: Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 3500m ³ and a 18 inch Conveying
SKU: 0

+8613953662777

Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 3500m ³ and a 18 inch Conveying

Location: HOME > PRODUCTS > Sand Dredger > Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 3500m ³ and a 18 inch Conveying

PRODUCTS

Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 3500m ³ and a 18 inch Conveying

Product Details

Place of Origin: China

Brand Name: yongsheng dredger

Certification: CCS

Model Number: YSCSD450

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: 300000-1000000 US Dollars

Packaging Details: In container or in bulk

Delivery Time: 50 days

Payment Terms: L/C, T/T

Supply Ability: 30 sets per year

+8613953662777

+8613953662777

+8613953662777

yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:Riverbed Sand Dredger Machine,18 inch Sand Dredger Machine,Low Speed Sand Dredger Machine

Stand Colour:	Blue And Orange
Special Colour:	Custom Building
Function:	Sand Dredging
Driven:	Diesel Engine
Hydraulic Systems:	Equipped
Structure:	Dismantle Type
Transportation:	In Bulk
Working Capacity:	700 CBM/H Solid Sand
Anchor Boom:	Equipped
Spud Carriage:	Equipped
HDPE Pipeline:	Equipped
Maximum Dredging Depth:	15 Meters

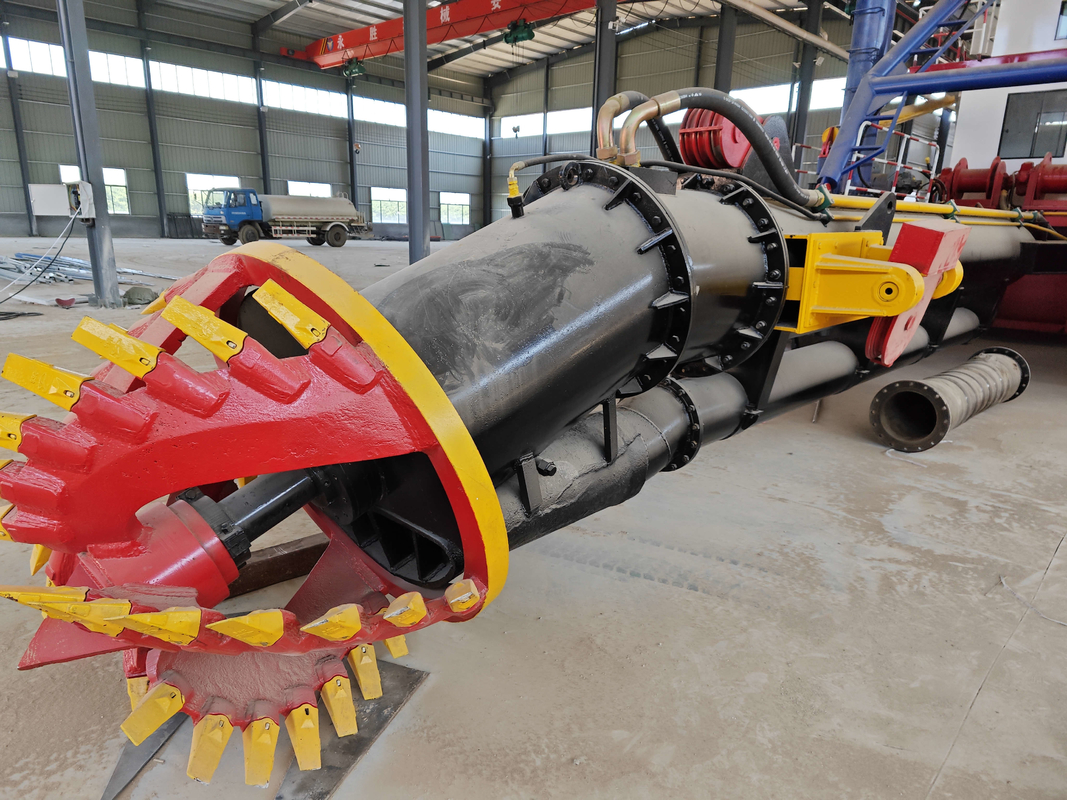

PRODUCT SHOW

Low Speed Sand Dredger Machine for Riverbed Sand Mining with a Clear Water Flow Rate of 3500m ³ and a 18 inch Conveying

1. The working locations of the suction type sand dredger can be: sea, port, lake, pond or river.

The sand dredgers we produce are diesel engine driven, self-propelled or non self-propelled, portable hydraulic twist suction sand dredgers. The hull adopts a detachable and box shaped structure, which can be disassembled for transportation and assembled at the work site.

It can also be equipped with anchor rods and pile supports to increase capacity.

2. Special requirement for cutter suction dredger can be custom building

Standard Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4 m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6 m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8 m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12 m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14 m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15 m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15 m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15 m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

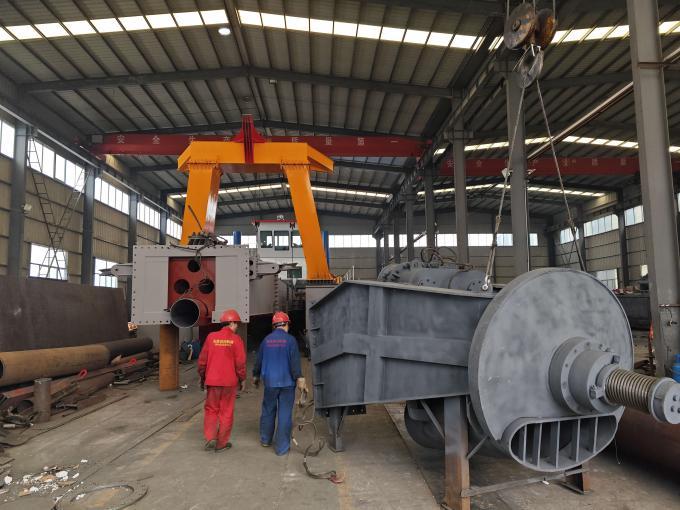

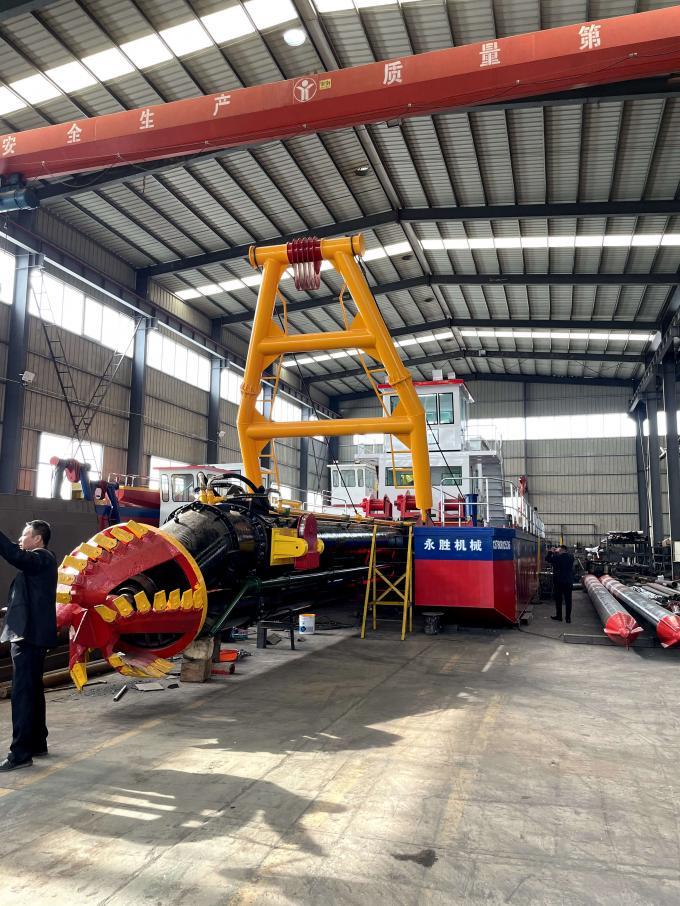

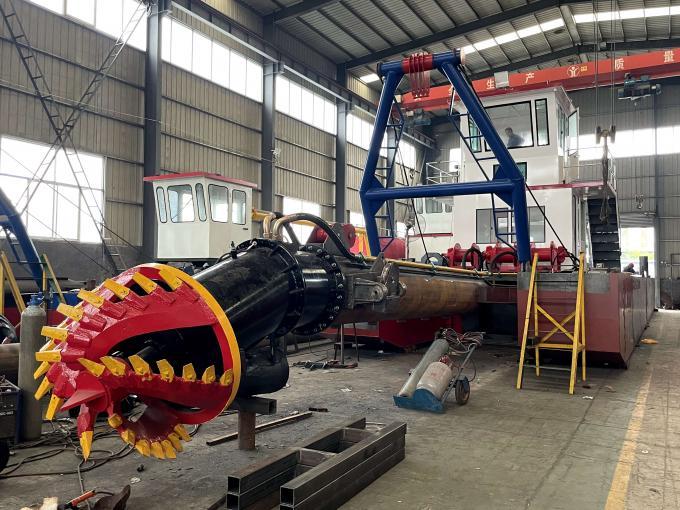

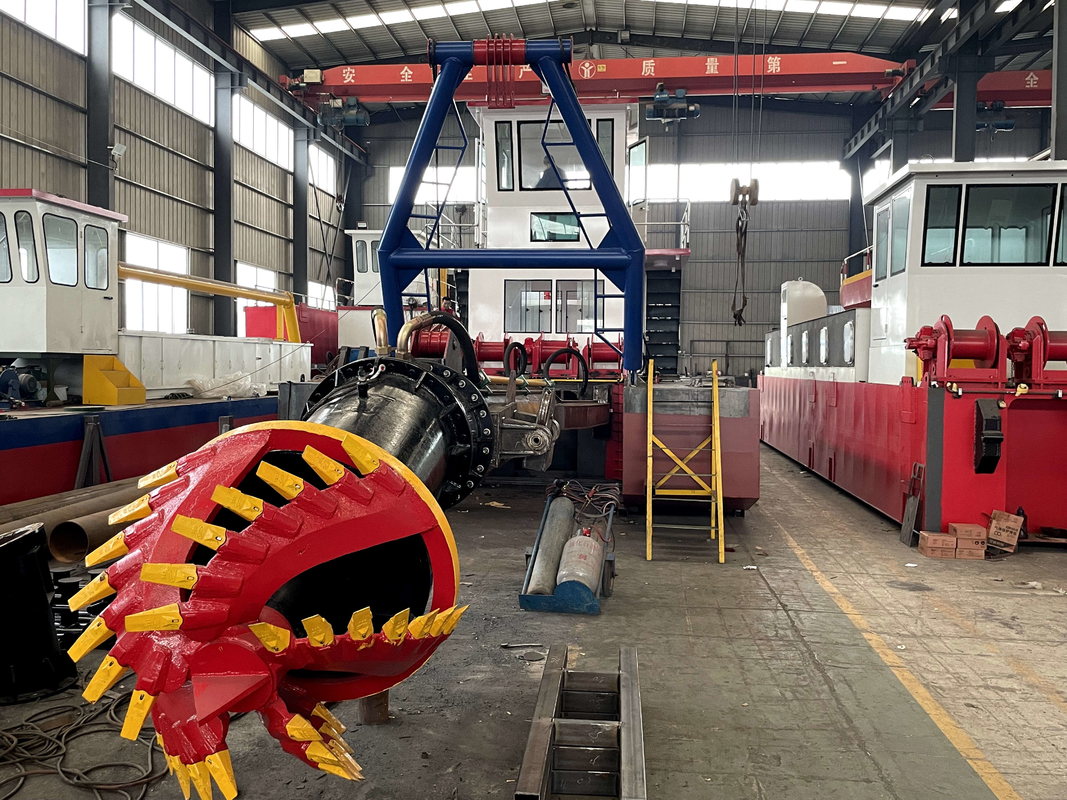

3. Our factory produces twisted suction sand dredgers

4. Technical Specification for YSCSD450 Hydraulic Twisted Suction Sand Extraction Ship with Actual Ship Capacity of 700cbm/h

*YSCSD450* solid capacity 500 cbm/h hydraulic cutter suction dredger**
Technical specifications
Water flow	3,500 m3/h
Solid capacity	700 cbm/h
Max. dredging depth 45°	15 m
Discharge distance	1,500 m
LOA	43.5 m
Dredger after assembly	43.57.52 m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	1.2 m
Diameter discharge pipe	450mm/18 inch
Main Engine	1,007 kw Cummins engine
Rotate speed	1800 r/min
Auxiliary engine power	425 kw Cummins engine
Generator	30 kw
Hydraulic cutter power	160 kw
Total power	1,057 kw
