Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design

‹

›

‹

  • Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design
  • Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design
  • Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design
  • Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design
  • Heavy duty Sand Dredger with 864kW Diesel Engine Max 1400 cbm/h Capacity Customizable Design

›

Product Details

Place of Origin: china

Brand Name: Yongsheng dredger

Certification: CCS

Model Number: YSCSD650

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: custom building

Packaging Details: In bulk

Delivery Time: 60-90 Days

Payment Terms: 30% deposit, 70% final payment

Supply Ability: 30 set/year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:864kW Diesel Engine Sand Dredger,Customizable Design Sand Dredger,864kW Sand Dredger

Diesel Engine Power:
1,864KW
Discharge Pipe Diameter:
700 Mm
Working Capacity:
Maximum 1400 Cbm/h
Custom Building:
Accepted
Design Discharge Distance:
2,000m
Work Boat:
Available
Material:
CCS Marine Using Plate
Warranty:
1 Year

PRODUCT SHOW

Product Description:

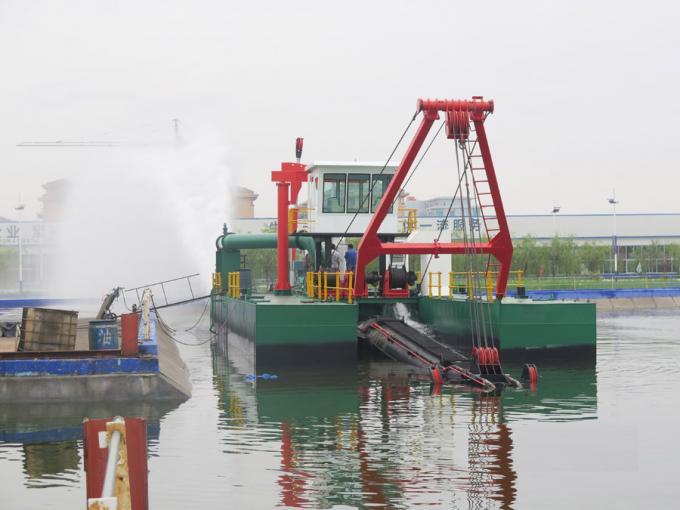

YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger
Technical specifications
Water flow7,000 m3/h
Solid capacity1400cbm/h
Max. dredging depth 45°18 m
Discharge distance1,800 m
LOA50 m
Dredger after assembly50*11*3.2m Length* width* depth
Dredger structureDismantle type and can be assembly in working site
Average draught2 m
Diameter discharge pipe650 mm/26 inch
Main Engine2,685 kw Cummins engine
Rotate speed1800 r/min
Auxiliary engine power970 kw Cummins engine
Generator50 kw
Hydraulic cutter power660 kw
Total power3705 kw

Powered by diesel oil, this Sand Dredger ship from Yongsheng Dredger is reliable and efficient, making it the perfect addition to your dredging equipment. With a one-year warranty, you can trust in the quality and durability of this product. And with the option to customize, you can get the exact dredger you need to fit your specific project requirements.

Applications:


The YSCSD650 sand dredger is equipped with a discharge diameter of 700 mm, making it ideal for sludge dredging under water. This feature makes it perfect for use in rivers, lakes, and seas. The spud carriage is also equipped with a spud length of 21 m.

This sand dredger has many applications and can be used in a variety of scenarios. For example, it can be used for river dredging, beach nourishment, deep sea mining, tailing and waste disposal,and environmental remediation. Additionally, it can be used for port and harbor construction, as well as for underwater pipeline construction and maintenance.

The YSCSD650 sand dredger is custom-built to your specific needs, making it a versatile and reliable option for any project. Whether you need to perform maintenance on a waterway or extract minerals from the sea floor, this sand dredger will get the job done efficiently and effectively.

Overall, the YSCSD650 sand dredger is a valuable investment for any company or organization that needs to perform dredging operations. Its high-quality construction, versatility, and customizability make it an excellent choice for any project.

Dredger working condition

The Maximum Temperature 500C

The Minimum Temperature -100C

The Maximum Temperature of engine room 500C

The Maximum Temperature of The River (Sea) Water 300C

The Relative Humidity ≤80%

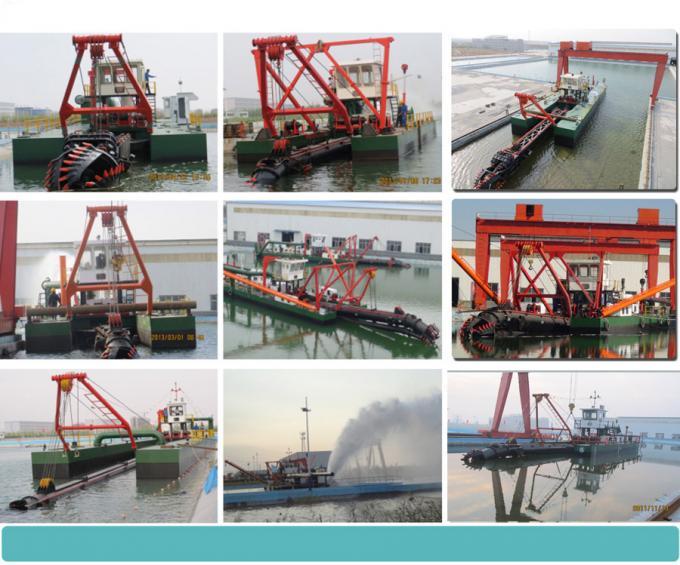

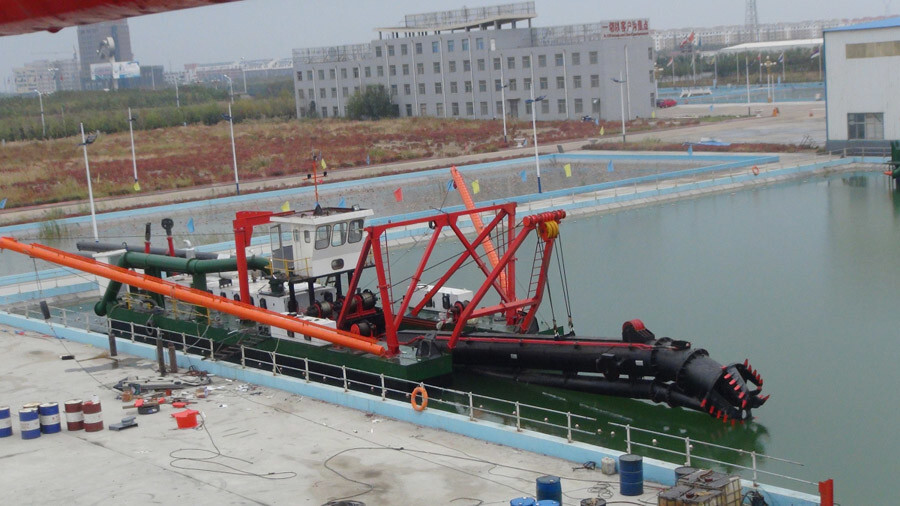

Arrangement of the complete dredger

Main equipment on the dredger:

——Cutter head and driving system

—— Frame of cutter head

　 ——Frame of ladder A

——lifting winch for sand suction pipe

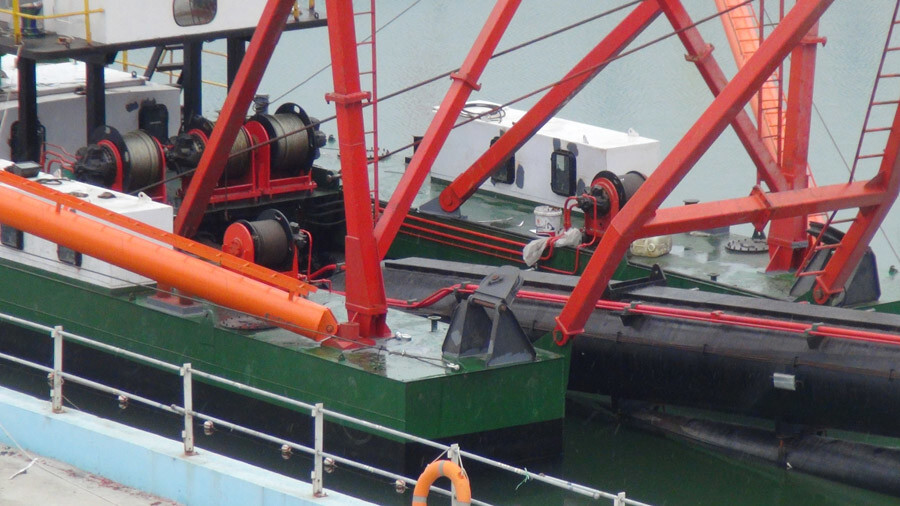

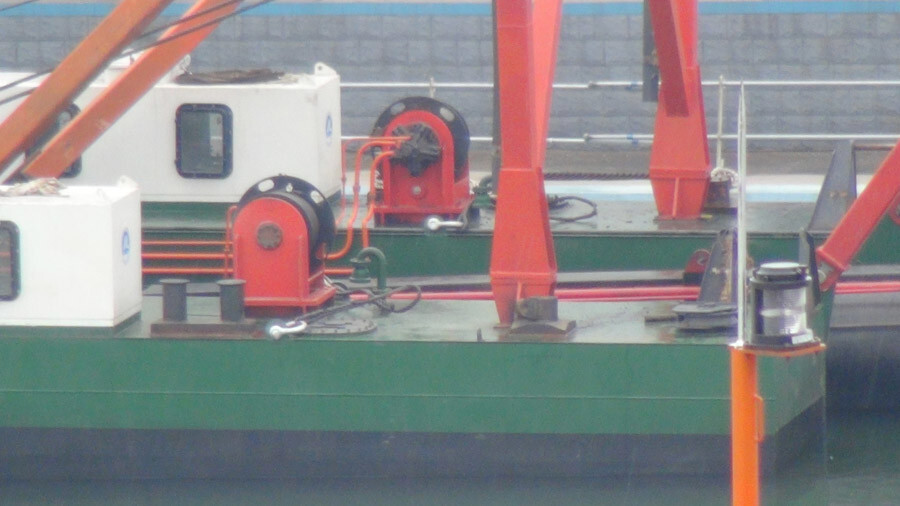

——Right and left traversing winches

——Operating room

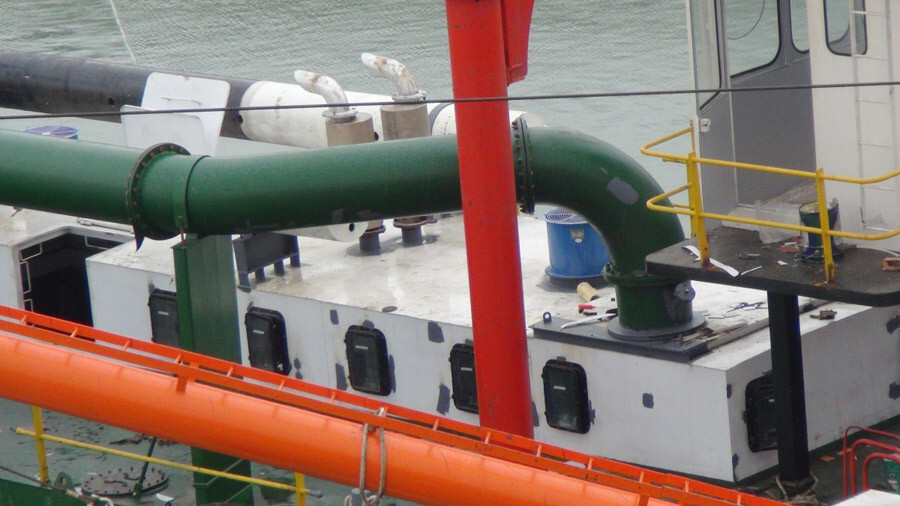

——Dredging pump

——Deck crane

——Gearbox of dredging pump

——Main diesel oil engine and auxiliary diesel oil engine

——Generator and auxiliary equipment

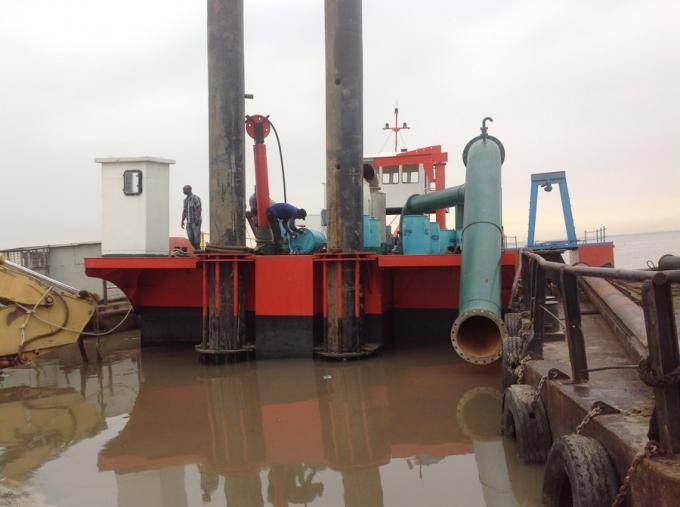

——Position spud and accessories

CCS or Panama certificate for Cutter suction dredger from Yongsheng dredger is available

The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.

The design, construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well. The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.

The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.

It can also be equipped with anchoring poles and spud carrier to increase capacity.

Support and Services:


The Sand Dredger product technical support and services include:

- Troubleshooting and diagnosis of technical issues

- Repair and maintenance services

- Replacement of faulty components and parts

- Upgrades and modifications to improve performance and efficiency

- Technical training and support for operators and maintenance personnel

- On-site technical assistance and supervision during installation and commissioning

- Regular inspections and preventive maintenance services to ensure optimal performance and longevity

Packing and Shipping:


Product Packaging:

  • 1 Sand Dredger
  • 1 User Manual
  • 1 Warranty Card
  • 1 Set of Accessories

Shipping:

  • Shipping Method: Sea Freight
  • Shipping Time: 90 days
  • Shipping Cost: To be determined based on destination

FAQ:

Q: What is the brand name of this dredger?

A: The brand name of this dredger is Yongsheng dredger.

Q: What is the model number of this dredger?

A: The model number of this dredger is YSCSD650.

Q: Where is this dredger made?

A: This dredger is made in China.

Q: What is the certification of this dredger?

A: This dredger is certified by CCS.

Q: What is the minimum order quantity for this dredger?

A: The minimum order quantity for this dredger is 1.

Q: How much does this dredger cost?

A: The price of this dredger is custom building, please contact us for more information.

Q: What is the packaging details of this dredger?

A: The packaging details of this dredger is in bulk.

Q: How long does it take to deliver this dredger?

A: The delivery time of this dredger is 60-90 Days.

Q: What are the payment terms for this dredger?

A: The payment terms for this dredger is 30% deposit, 70% final payment.

Q: How many sets of this dredger can be supplied per year?

A: We can supply 30 sets of this dredger per year.

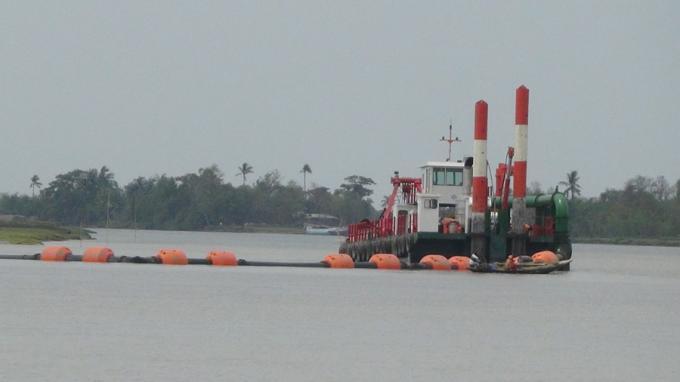

1. Working video for 26 inch cutter suction dredger in river
https://www.youtube.com/watch?v=ymHf17z0zn4
2. 4 sets of new cutter suction dredgers in stock
https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
3. Assembly and test for 7000 m3/h cutter suction dredger in workshop
https://youtu.be/fTPXEwE9Kw0
4. Cutter suction dredger protection and restoration project for mountain, water, forest, lake, and sand integrated
https://youtu.be/ZnERf6AhVDY

Previous:26 inch 1400 cbm/h Cutter Head Diameter Sand Suction Sand Dredger with Dredging depth 15m underwater
Next:24 inch Cutter Suction Sand Dredger with Spud Carriage for 15m Dredging Depth distance 2KM
