Cutter Suction Sand Dredger with 3800m3/H Water Flow

‹

›

‹

  • Cutter Suction Sand Dredger with 3800m3/H Water Flow
  • Cutter Suction Sand Dredger with 3800m3/H Water Flow
  • Cutter Suction Sand Dredger with 3800m3/H Water Flow

›

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: csd500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 709000usd/piece

Packaging Details: Container

Delivery Time: 60 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION


Customized:
Customized
Condition:
New
Warranty:
1 Year
Water Flow:
3800m3/H
Solid Capacity:
760 Cbm/H
Max.Dredging Depth 45°:
15m
Discharge Distance:
1500m
Dredger After Assembly:
47*8.8*2 .5m Length*Width*Depth
Dredger Structure:
Can Be Assembly In Working Site
Average Draught:
1 .6m
Diameter Discharge Pipe:
500mm/20inch
Total Power:
1648kw
Main Engine:
1193 Kw
Auxiliary Engine Power:
425kw
Generator:
30kw
Hydraulic Cutter Powerr:
220kw

PRODUCT SHOW

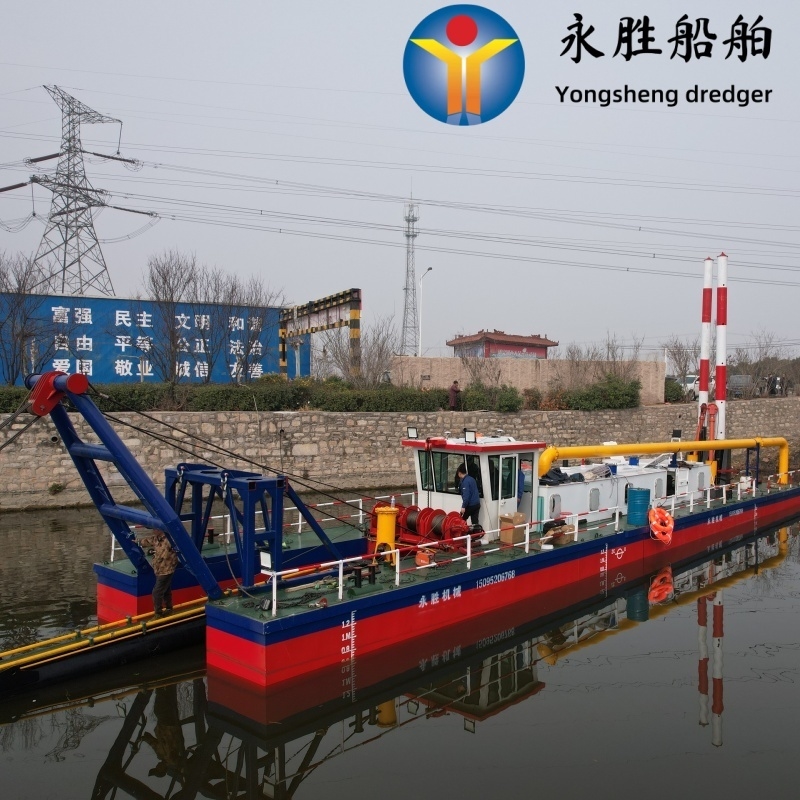

Cutter Suction Sand Dredger with 3800m3/H Water Flow

Shandong yongsheng cutter suction dredger is dismountable and can be easily transported to any location.

With its robust design, it is the preferred choice in its class due to low maintenance, excellent fuel consumption and high productivity levels.


Our CSD is equipped with state-of-the-art technology, including the following key features:
• low maintenance and efficient power distribution
• environmentally friendly solutions, such as LED lighting
• safe operation using PLC controls and interlocks
• easy to operate for a single person from the operator's seat
• control cabin placed on dampers to improve comfort and reduce noise.

• efficiency and high performance due to the pump, gearbox and fresh-water engine cooling system

• engine mounted in the centre pontoon for protection and low noise levels

• durable heavy-duty marine engine

• safe and robust pump drive.

Model list for hydraulic cutter suction dredger
ModelInch

Diameter

pipe

Water

flow

Solid
capacity

Total

power

Dredging

depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

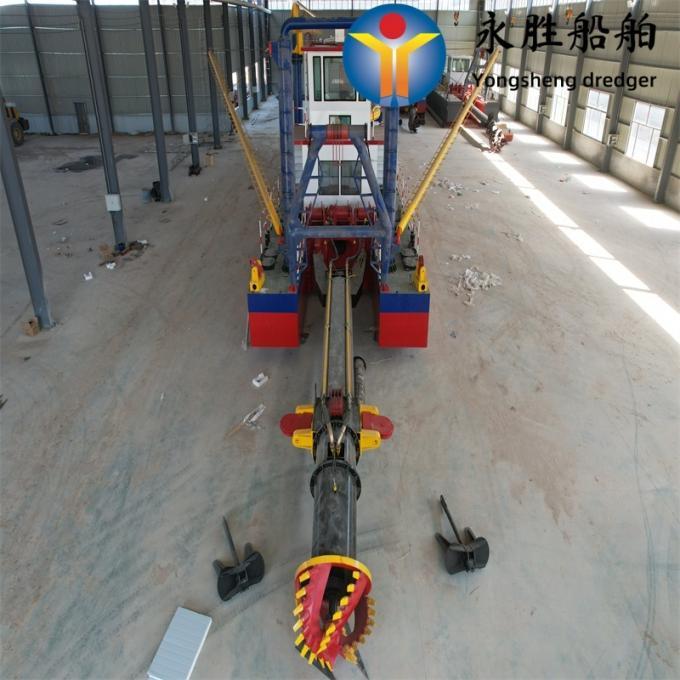

Cutter Suction Sand Dredger with 3800m3/H Water Flow 0

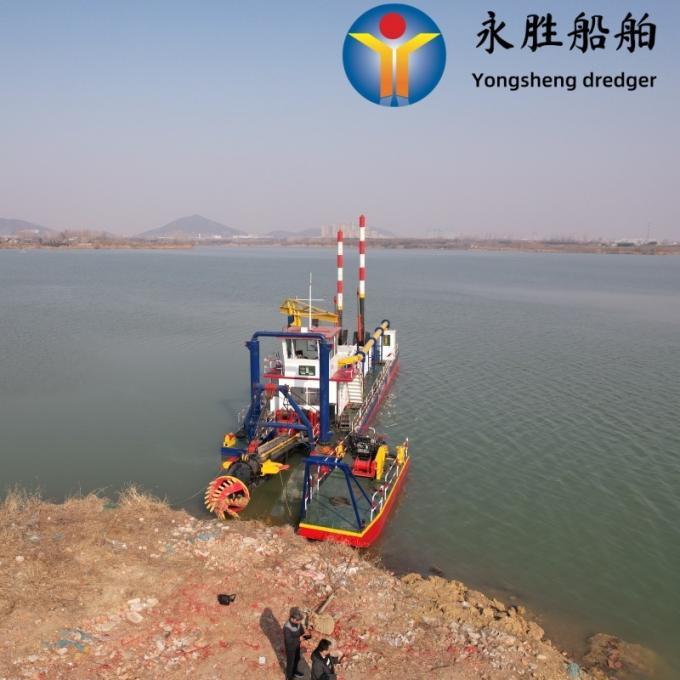

Cutter Suction Sand Dredger with 3800m3/H Water Flow 1

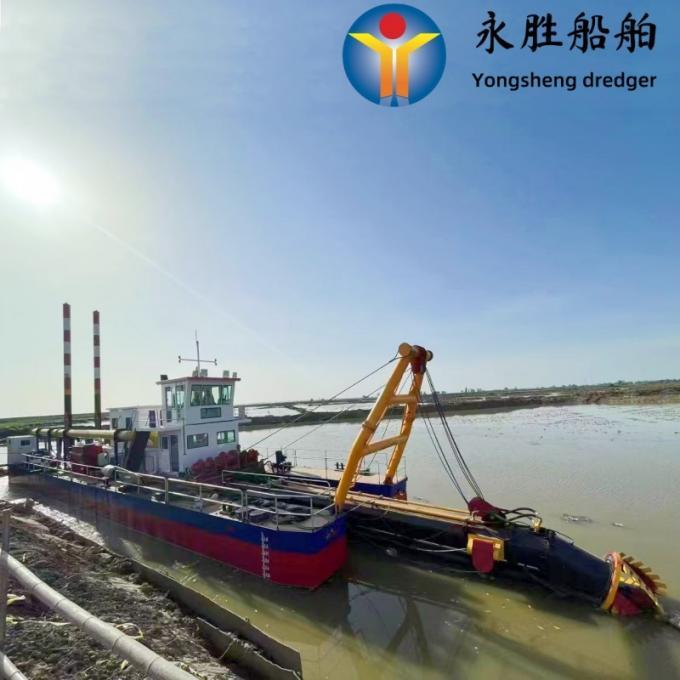

Cutter Suction Sand Dredger with 3800m3/H Water Flow 2

afrer sale service:

Normally we offer 12 months warranty and free service after the dredger successfully commissioning and hand over to customers. We have our own service team which are with mature experience and good knowledge of dredgers.

And we can also extend offer training,operating,service program with skilled enginees as per your request. If necessary, we can also extend the warranty&service time with negotiable conditions.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
