Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt

‹

›

‹

  • Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt
  • Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt
  • Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt
  • Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt
  • Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt

›

Product Details

Place of Origin: China

Brand Name: yongsheng dredger

Certification: CCS

Model Number: YSCSD500

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: 300000-1000000 US Dollars

Packaging Details: In container or in bulk

Delivery Time: 50 days

Payment Terms: L/C, T/T

Supply Ability: 30 sets per year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:cutter sand dredging machine,cutter river dredging machine,river sand dredging machine

Stand Colour:
Blue And Orange
Special Colour:
Custom Building
Function:
Sand Dredging
Driven:
Diesel Engine
Hydraulic Systems:
Equipped
Structure:
Dismantle Type
Transportation:
In Bulk
Working Capacity:
760 CBM/H Solid Sand
Anchor Boom:
Equipped
Spud Carriage:
Equipped
HDPE Pipeline:
Equipped
Maximum Dredging Depth:
15 Meters

PRODUCT SHOW

cutter suction dredger with a flow rate of 3800m ³ 20 inches for dredging waterways and river silt

1. Working places of cutter suction dredger can be: sea, port, lake, pond river.


The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled, portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.

It can also be equipped with anchoring poles and spud carrier to increase capacity.

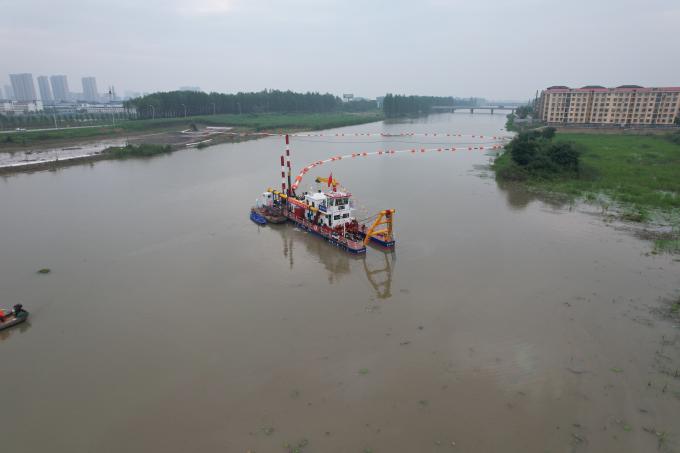

Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt 0


2. Special requirement for cutter suction dredger can be custom building

Standard Model list for hydraulic cutter suction dredger
ModelInchDiameter pipeWater flowSolid capacityTotal powerDredging depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4 m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6 m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8 m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12 m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14 m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15 m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15 m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15 m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

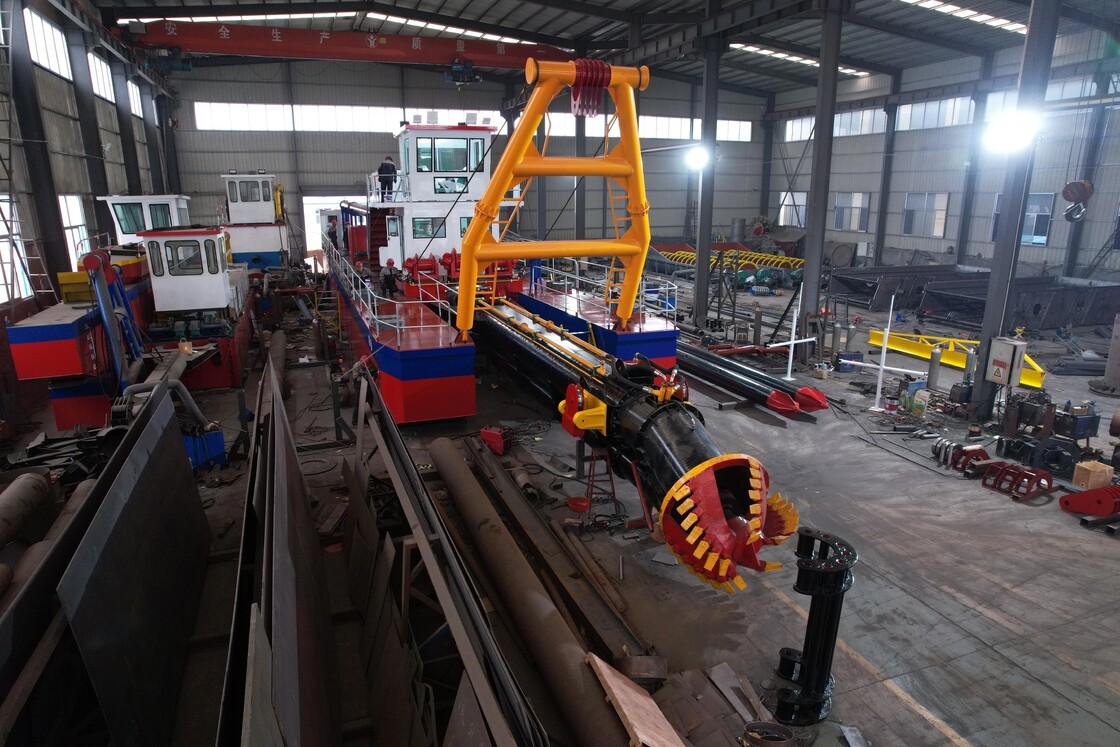

3. Production for cutter suction dredger in our workshop

Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt 1


4. Technical specifications for YSCSD500 solid capacity 760 cbm/h hydraulic cutter suction dredger


Water flow3800 m3/h
Solid capacity760 cbm/h
Max. dredging depth 45°15 m
Discharge distance1,800 m
LOA43 m
Dredger after assembly43*11*3.2m Length* width* depth
Dredger structureDismantle type and can be assembly in working site
Average draught2 m
Diameter discharge pipe500 mm/20 inch
Main Engine1,193 kw Cummins engine
Rotate speed1500 r/min
Auxiliary engine power425 kw Cummins engine
Generator50 kw
Hydraulic cutter power185 kw
Total power1853 kw


5. General ararngement for full set of cutter suction dredger

Arrangement of the complete dredger


Composition of the system

——One main engine pontoon

——Two side pontoons

——Connected devices of floating pontoon

——Upper structures

——Equipment base and special strengthen devices and equipments

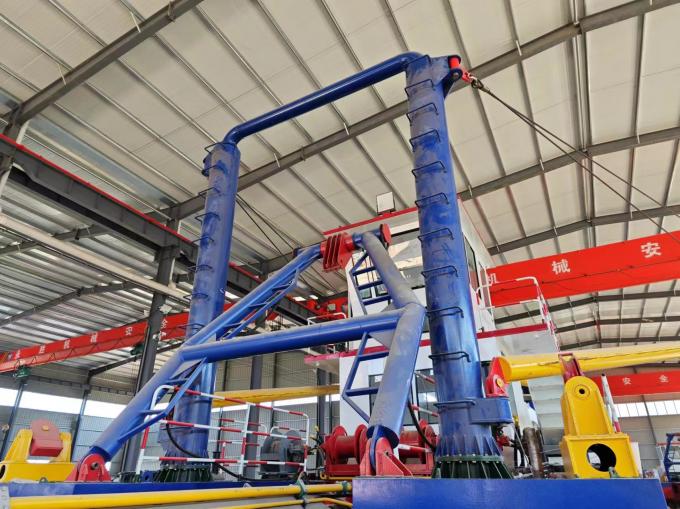

Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt 2


6.

Dredger working condition


The Maximum Temperature 500C

The Minimum Temperature -100C

The Maximum Temperature of engine room 500C

The Maximum Temperature of The River (Sea) Water 300C

The Relative Humidity ≤80%

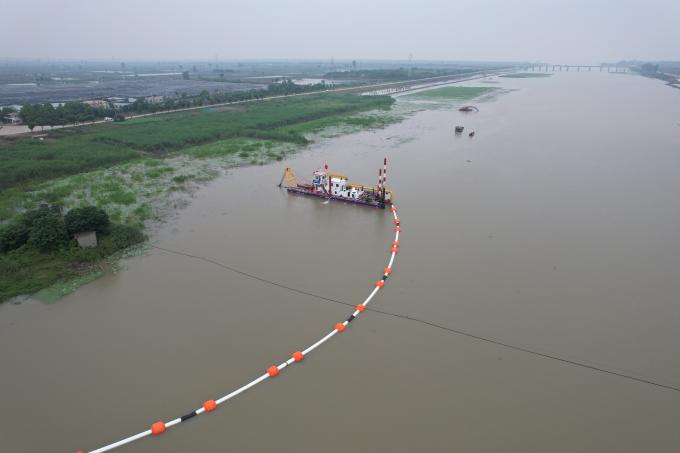

Cutter Sand Dredging Machine Low Rate 3800m ³ 20 Inches For Dredging Waterways And River Silt 3


Any interested pls advise
