Name: 8 Inch Sand Suction Dredging Machine For River Lake Sand Mining
SKU: 0

+8613953662777

8 Inch Sand Suction Dredging Machine For River Lake Sand Mining

Location: HOME > PRODUCTS > Sand Dredger > 8 Inch Sand Suction Dredging Machine For River Lake Sand Mining

PRODUCTS

8 Inch Sand Suction Dredging Machine For River Lake Sand Mining

Product Details

Place of Origin: china

Brand Name: yongsheng

Model Number: ys-8inch

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 66000usd/piece

Packaging Details: Container

Delivery Time: 30 work days

Payment Terms: T/T,L/C

Supply Ability: 100piece/Year

+8613953662777

+8613953662777

+8613953662777

yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:River Lake Sand Suction Dredging Machine,Sand Mining Suction Dredging Machine,8 Inch Sand Suction Dredging Machine

Customized:	Customized
Condition:	New
Warranty:	1 Year
Water Flow:	500m3/H
Solid Capacity:	80-100m3/H
Max.Dredging Depth 45°:	8m
Discharge Distance:	500m
Size:	14m4.5m1.2m
Main Engine:	176kw
Consumption:	40L/H
Application:	Sand Suction
Work Site:	River Lake Sea Canal

PRODUCT SHOW

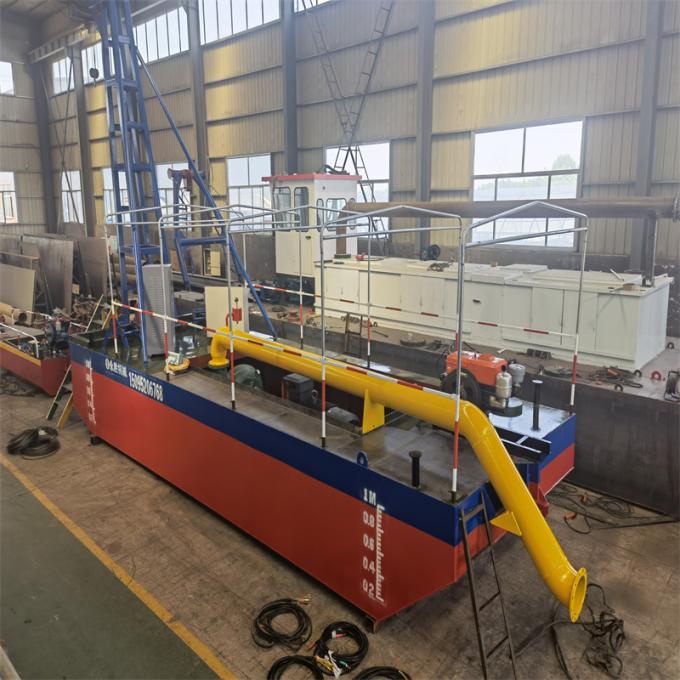

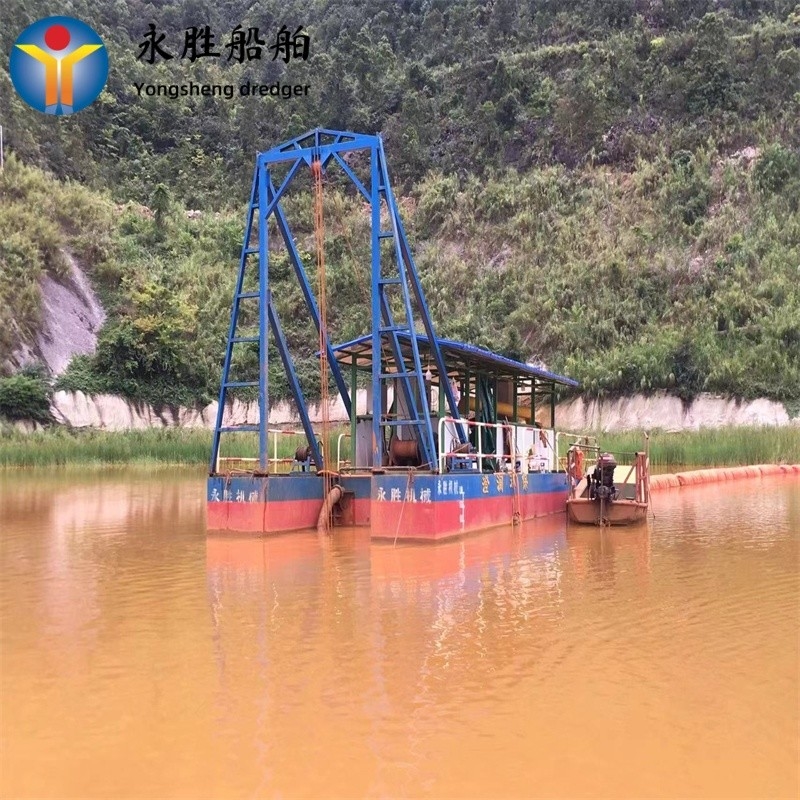

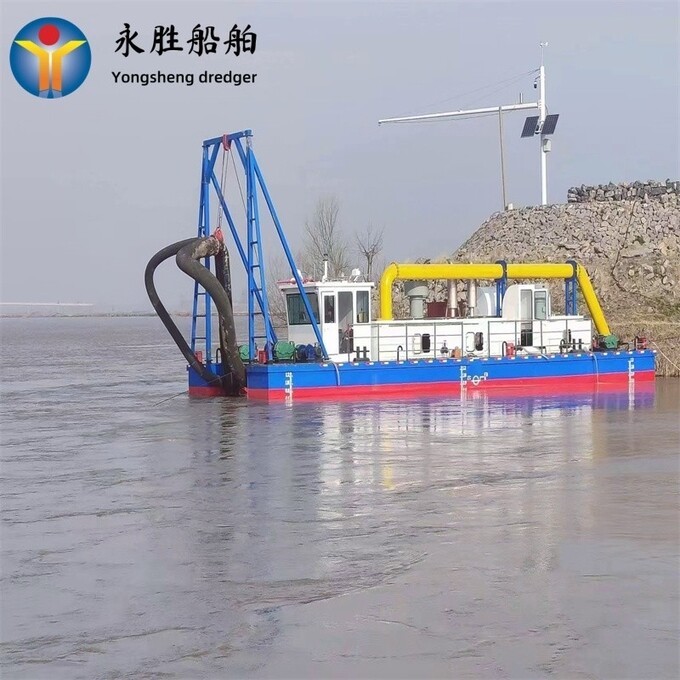

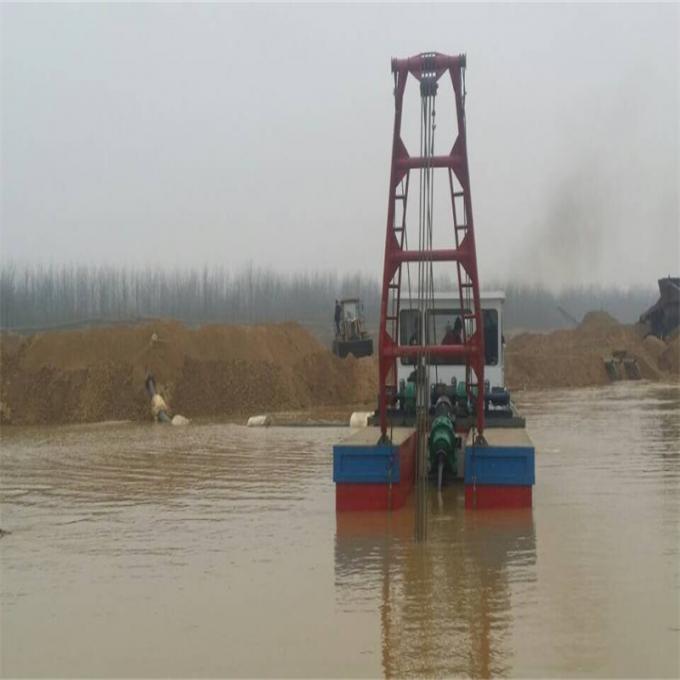

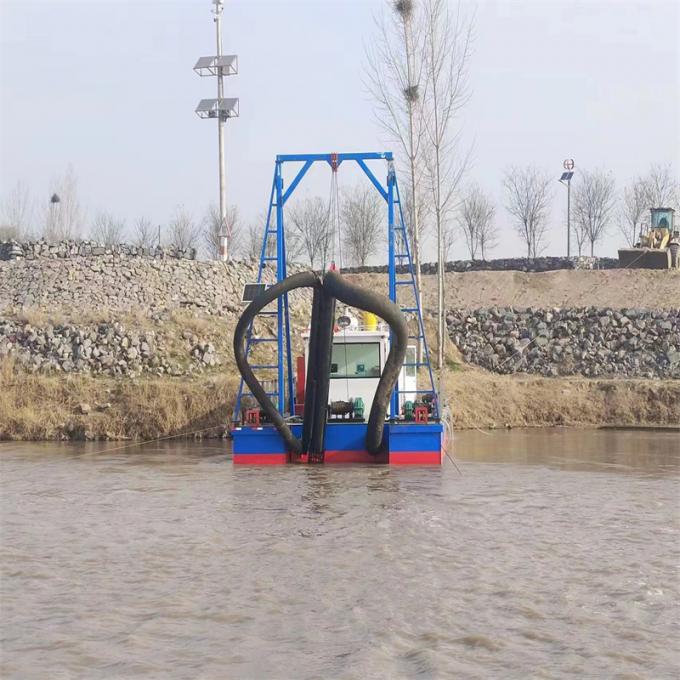

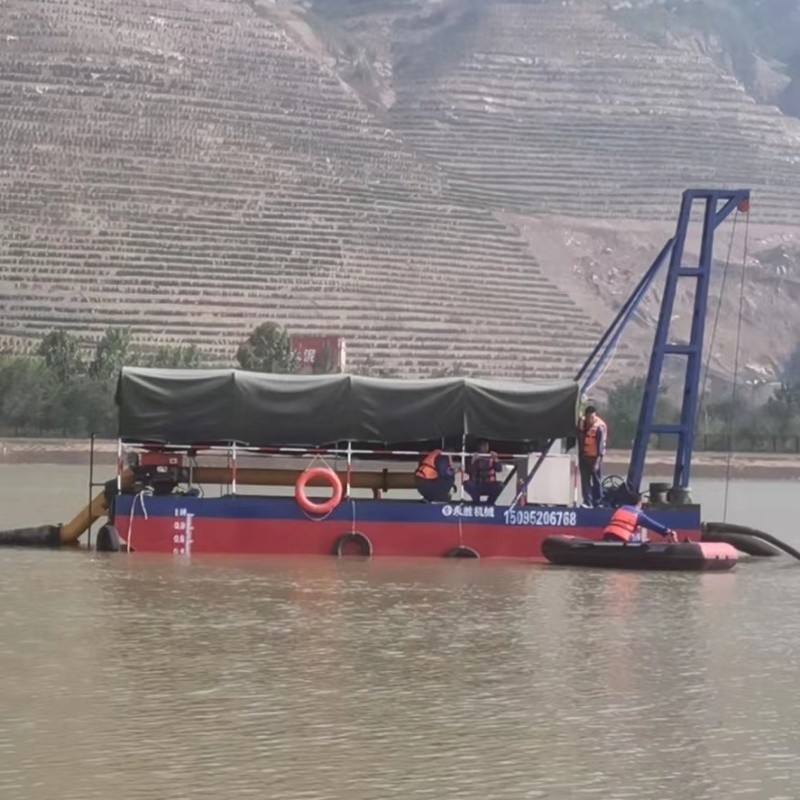

sand suction dredging machine for river lake sand mining

sand suction dredging machine is widely used to recover materials from great depths and can also extract sand from below a clay overburden which is also called a jet sand suction dredger.

The New Sand Mining Machine is equipped with a high-pressure water pump and a powerful sand suction pump. The water pump can produce a high-pressure high-speed water jet to impact the bottom of the sand layer and splash the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.

Product Paramenters:

Model	Soild capacity	Water flow	Dredging depth	Discharge distance	Main engine	Auxiliary engine	Total consumption	size(m)
6inch	40-50 m3/h	250 m3/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m3/h	500 m3/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m3/h	900 m3/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m3/h	1400 m3/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m3/h	2000 m3/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m3/h	2600 m3/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m3/h	3000 m3/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m3/h	3800 m3/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0
Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added. The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.

sand suction dredging machine consists of a dredge body, high-efficiency wear resistant marine sand pump, high-pressure water pump, famous brand diesel engine, and discharge system. Our New Sand Mining Machine features an integrated design, high efficiency, good wear resistance,flexible operation, and energy saving in the delivery of solid particles. Our New Sand Mining Machine is the most economical New Sand Mining Machine for loose fine sand in the water bottom. We can customize various small and medium jet suction dredgers for your demands.
