Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow

‹

›

‹

  • Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow
  • Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow
  • Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow
  • Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow

›

Product Details

Place of Origin: china

Brand Name: Yong sheng dredger

Certification: ZC

Model Number: YSCSD500H-15

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Price: 300000-1200000 US Dollars

Packaging Details: Bulk transport

Delivery Time: 50 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 25 sets per year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:16 inch sand pumping boat,mud sand pumping boat,mud sand dredging boat
Discharge Distance:
2000m
Cutter Power:
660kW
Pump Power:
2647kW
Maximum Dredging Depth:
1-15Meter
Package Gross Weight:
550T
Total Height:
8m
Front Plate Thickness:
20mm
Plc:
Siemens
Diesel Engine Brand:
WEICHAI
Water Flow:
4000m³
Solid Capacity:
600m³
Model:
18 Inch

PRODUCT SHOW

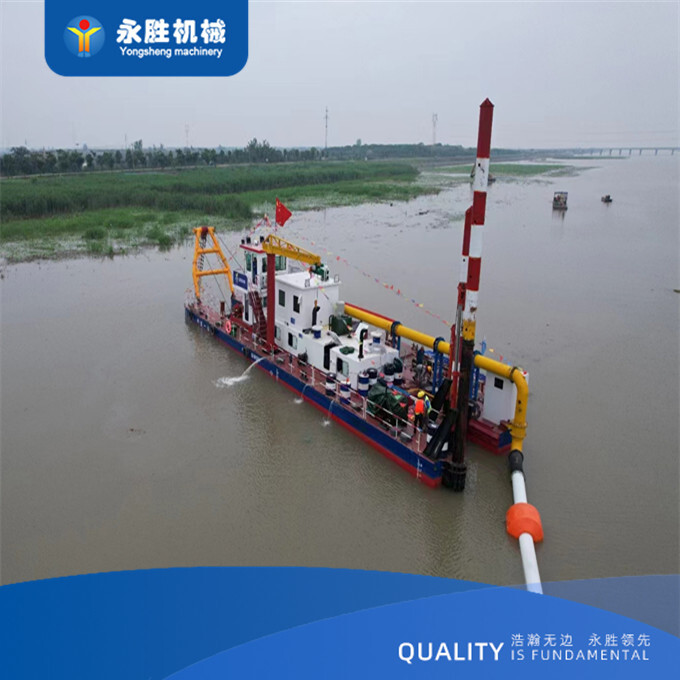

model 16 inch Sand pumping boat dredging mud and sand at the seaside

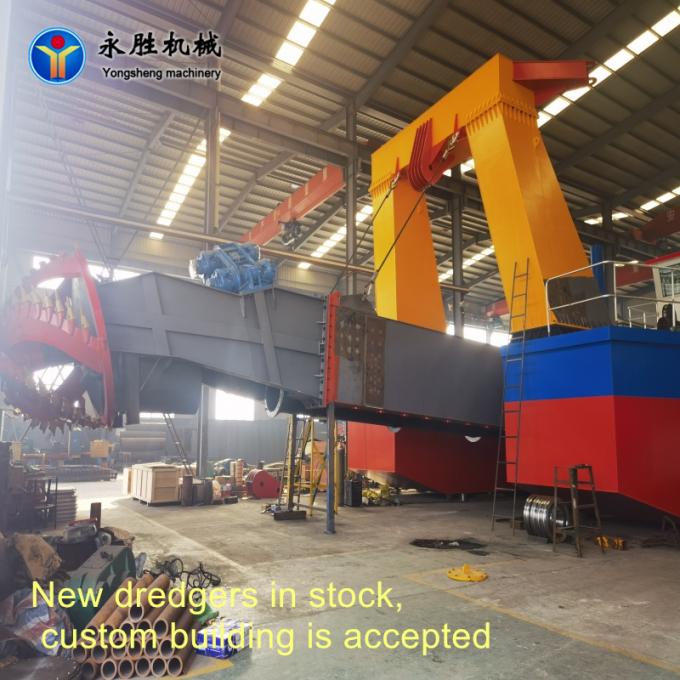

1.Cutter suction dredger is the one of the best popular dredging machinery . full hydraulic automatic to drive the main equipment . such as cutter

head . spud and all kinds of winch so on . famfous diesel engine brand from the abroad ( Germany. Aemerica)to provide the power for the

whole dredger , such as river sand pump . hydraulic oil pump , generator and water pump so on. all dredger is made by the marine steel can

improve the dredger working life . whole dredger use the Siemens PLC to control to reach the full automatic . recently years cutter suction

dredger is more and more used all kinds dredging project

The company's products cover various types and specifications of dredgers, including cutter suction dredgers, rake suction dredgers, chain bucket dredgers,aquatic weed harvester etc. The company adheres to the business philosophy of "quality first, customer first", with the aim of integrity, innovation, and win-win, and has established long-term and stable cooperative relationships with customers.

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 0

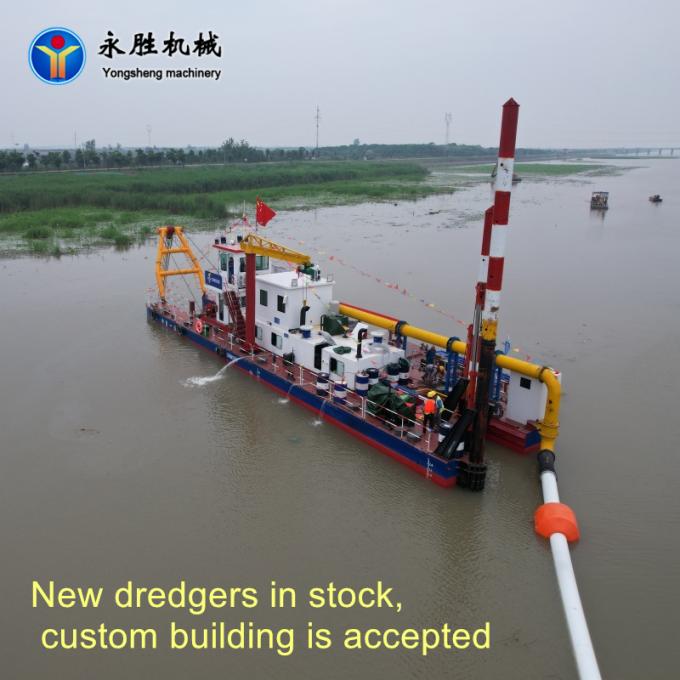

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 1

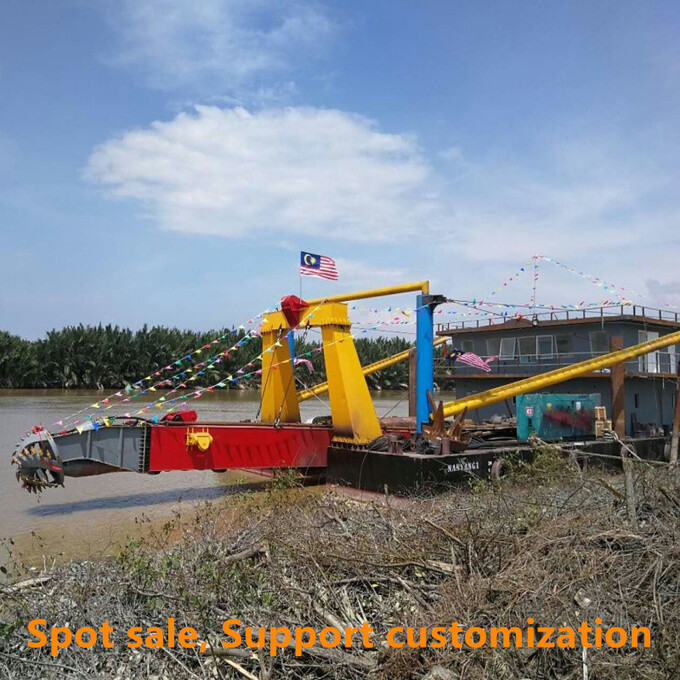

2.Technical specifications for YSCSD650 solid capacity 900 cbm/h hydraulic cutter suction dredger

Water flow                               7,000 m3/h
Solid capacity                         1400 cbm/h
Max. dredging depth 45°        18 m
Discharge distance                 1,800 m
LOA 50 m
Dredger after assembly           50*11*3.2m Length* width* depth
Dredger structure                    Dismantle type and can be assembly in working site
Average draught                      2 m
Diameter discharge pipe         650 mm/26 inch
Main Engine                            2,647 kw WEICHAI
Rotate speed                          1800 r/min
Auxiliary engine power           1000 kw WEICHAI engine
Generator                                50 kw
Hydraulic cutter power             660 kw
Total power                              3697 kw

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 2

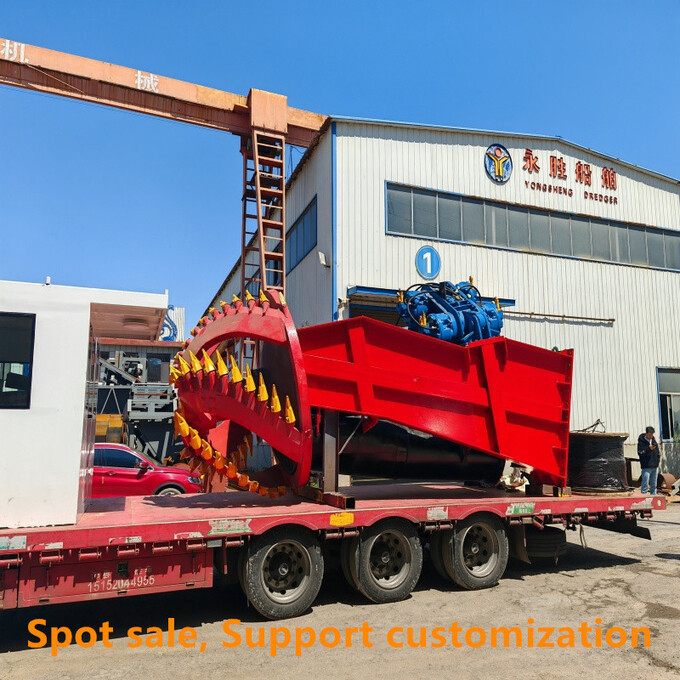

3. Packaging
1. Disassemble the detachable components and mark them properly.
2. Use appropriate packaging materials to wrap and secure the components to prevent collision and damage.
2, Transportation
1. Choose a suitable transport vehicle or vessel based on the size and weight of the dredger.
2. Ensure that the transportation vehicle has sufficient load-bearing capacity and stability.
During transportation, pay attention to the speed and smoothness of driving to avoid severe bumps.

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 3

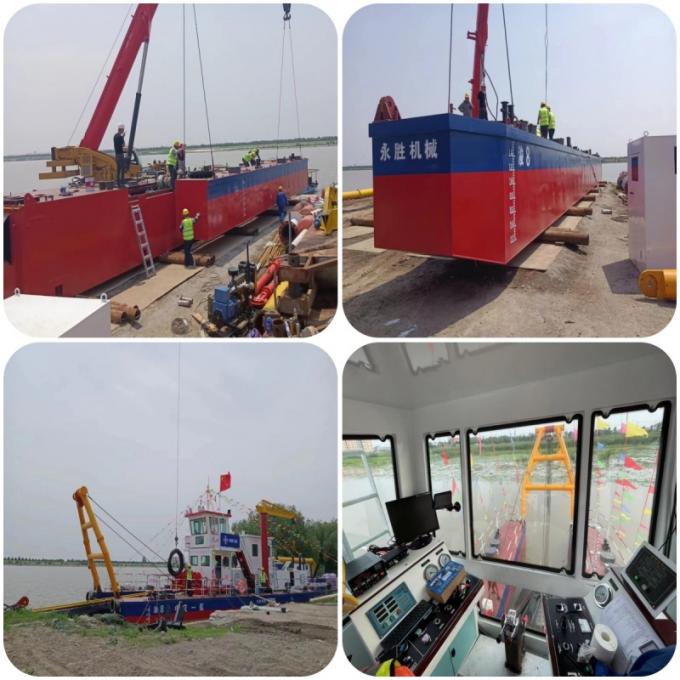

4. On site installation of cutter suction dredgers. We will send excellent technicians to guide the installation on site, and after the installation is completed, we will also provide training to on-site personnel until they become proficient in the operation

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 4

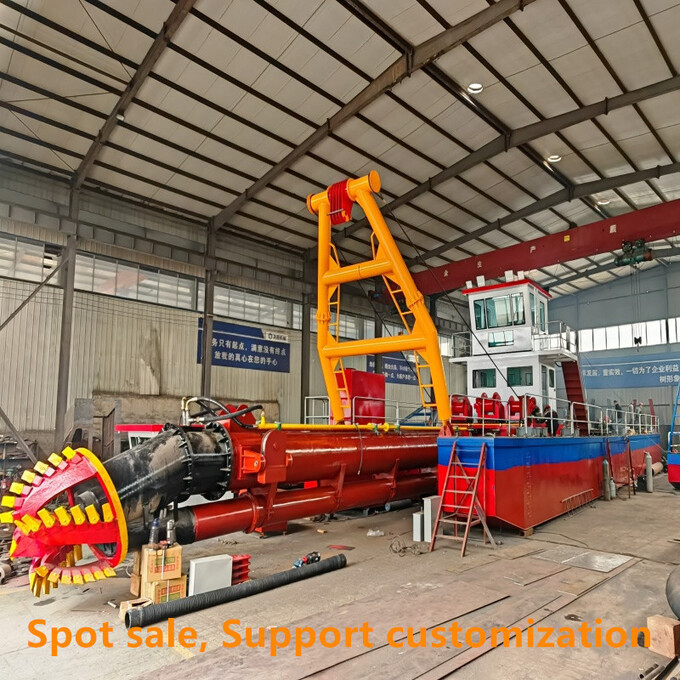

5. Special requirement for cutter suction dredger can be custom building

Standard Model list for hydraulic cutter suction dredger
ModelInchDiameter pipeWater flowSolid capacityTotal powerDredging depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4 m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6 m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8 m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12 m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14 m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15 m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15 m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15 m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 5

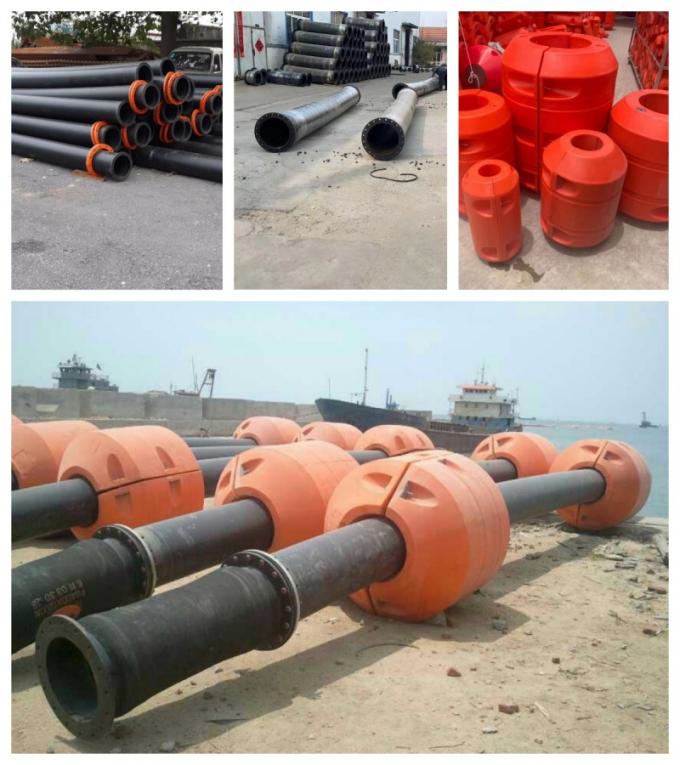

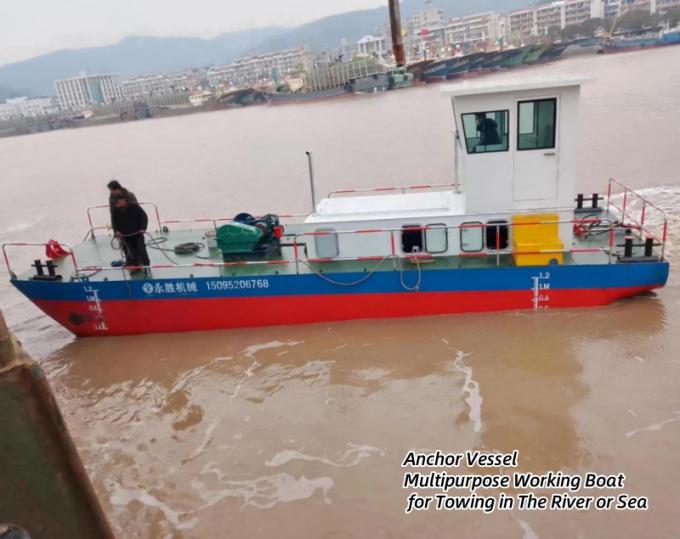

We also have supporting facilities for the cutter suction dredger, such as discharge pipes, pipeline floats, and anchor boats that work with the dredger

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 6

Model 16 Inch Sand Pumping Boat Dredging Mud And Sand At The Seaside 660kW 4000m³ Water Flow 7

Any interested pls advise
