High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

‹

›

‹

  • High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine
  • High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine
  • High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine
  • High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine
  • High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

›

Product Details

Place of Origin: China

Brand Name: yongsheng dredger

Certification: CCS/ISO9001

Model Number: YSCSD600

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: 530000 to 820000 USD dollars/set

Packaging Details: In container

Delivery Time: 55days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 8 sets/year

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:650mm steel dredging vessel,650mm dredges and dredging machine,1864kw steel dredging vessel
Type:
Suction Dredging Machines For Sand Dredging
Colour:
Orange And Black
Custom Building:
Accepted
Certificate:
CCS
Material:
Marine Using Plate
Engine:
MAN Germany
Pump:
Centrifugal Slurry Dredging Pump
Cutter Head:
Crown Type

PRODUCT SHOW

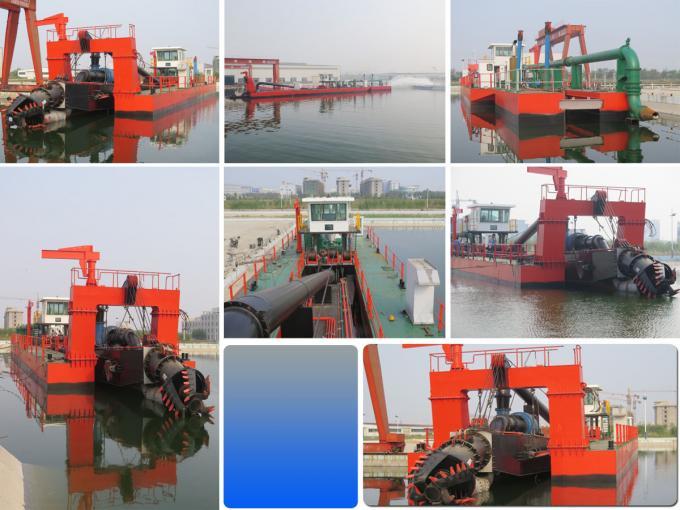

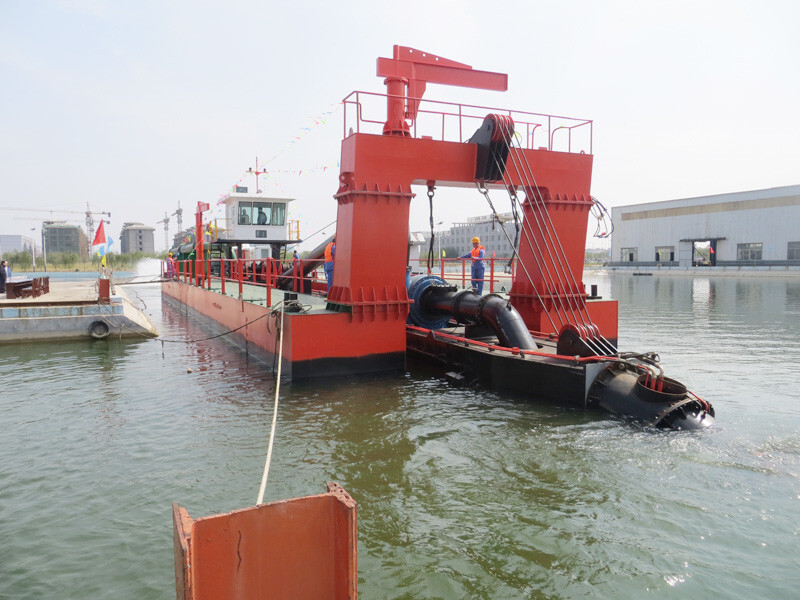

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

Introduction for cutter suction dredger from Yongsheng Dredger

CCS certificate for Cutter suction dredger from Yongsheng dredger is available

The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.

The design, construction, quality inspection of our cutter suction dredger is based on the standards and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well.

The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.

The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled,portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle for shipment and assembly at working site.


Dredger working condition

The Maximum Temperature 500C

The Minimum Temperature -100C

The Maximum Temperature of engine room 500C

The Maximum Temperature of The River (Sea) Water 300C

The Relative Humidity ≤80%

Arrangement of the complete dredger

Main equipment on the dredger:

——Cutter head and driving system

—— Frame of cutter head

　 ——Frame of ladder A

——lifting winch for sand suction pipe

——Right and left traversing winches

——Operating room

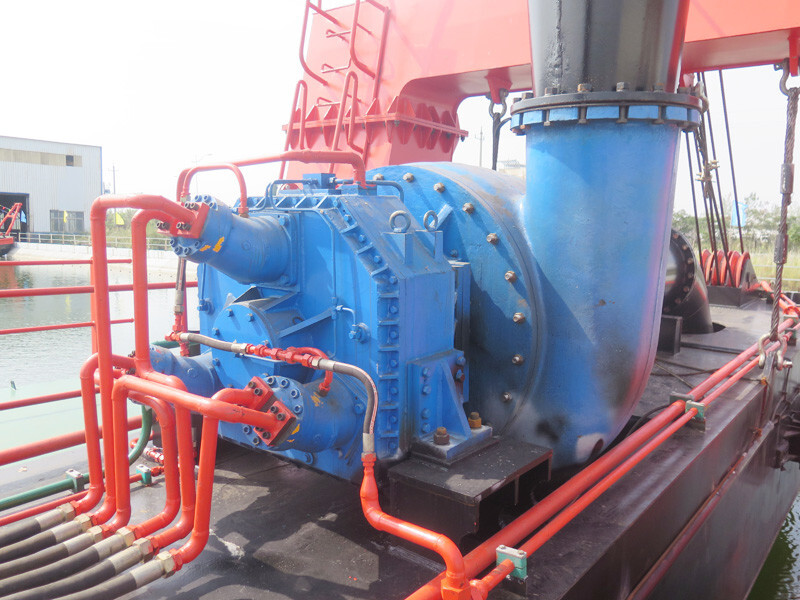

——Dredging pump

——Deck crane

——Gearbox of dredging pump

——Main diesel oil engine and auxiliary diesel oil engine

——Generator and auxiliary equipment

——Position spud and accessories


Model list for hydraulic cutter suction sand dredger
ModelInchDiameter pipeWater flowSolid capacityTotal powerDredging depth

Discharge

distance

YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4 m600 m
YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6 m800 m
YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8 m1,100 m
YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12 m1,200 m
YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14 m1,400 m
YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15 m1,500 m
YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15 m1,600m
YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15 m1,800 m
YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

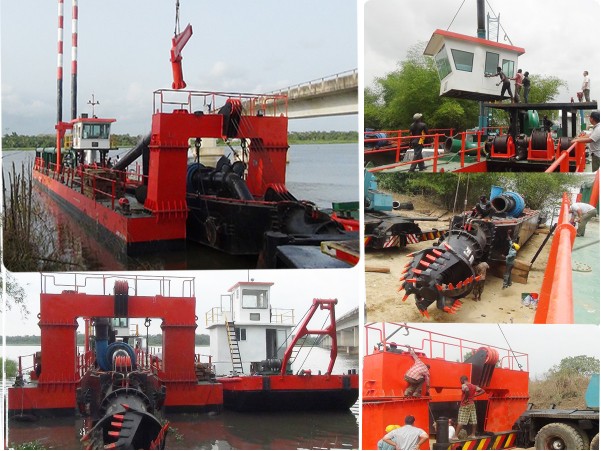

Packaging and shipment

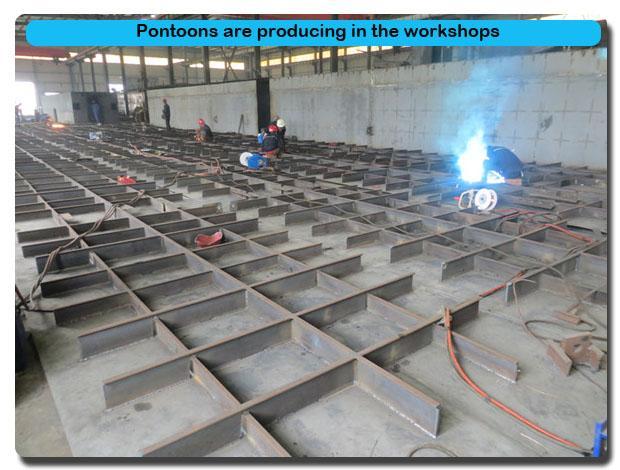

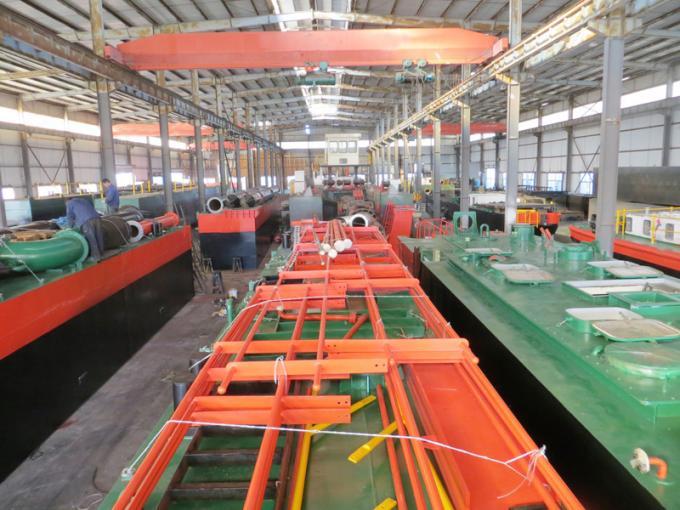

Cutter suction sand dredger production in workshop

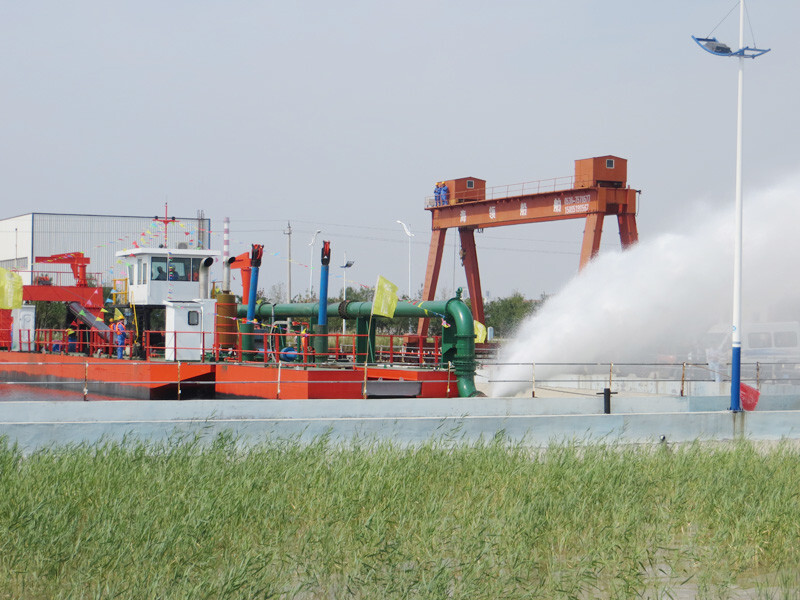

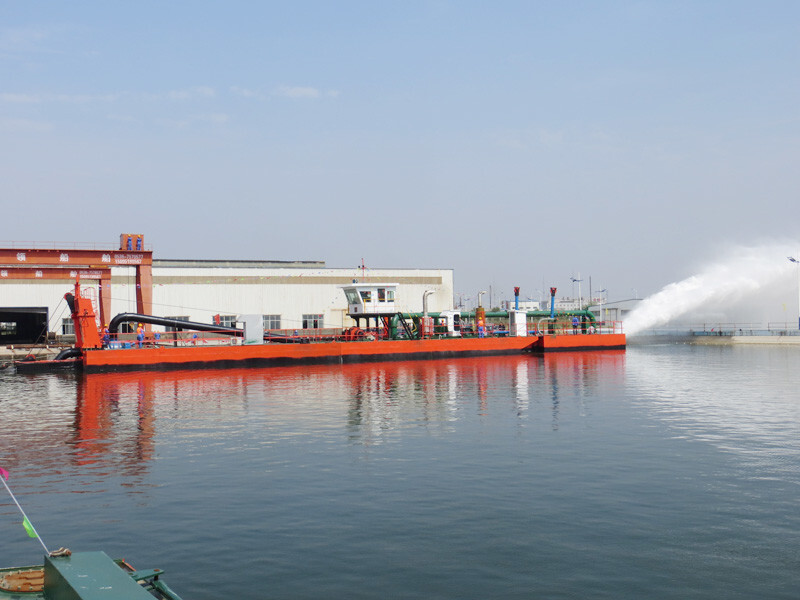

1. Working video for 26 inch cutter suction dredger in river
https://www.youtube.com/watch?v=ymHf17z0zn4
2. 4 sets of new cutter suction dredgers in stock
https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
3. Assembly and test for 7000 m3/h cutter suction dredger in workshop
https://youtu.be/fTPXEwE9Kw0
4. Cutter suction dredger protection and restoration project for mountain, water, forest, lake, and sand integrated
https://youtu.be/ZnERf6AhVDY
