Soncap Panama Certified Custom Building 20 Inch Hydraulic Cutter Suction Dredger with Spud Carriage

Product Details

Place of Origin: China

Brand Name: Yongsheng dredger

Certification: CCS

Model Number: YSCSD500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Custom building

Packaging Details: Container shipping or in Bulk

Delivery Time: 60 Days

Payment Terms: 40% deposit, 70% final payment

Supply Ability: 30sets

Contact Us
+8613953662777
+8613953662777
+8613953662777
yongshengdredger@machineys.com

PRODUCT DESCRIPTION

Highlight:Custom Building Cutter Suction Dredger,20 Inch Cutter Suction Dredger,Panama Certified Cutter Suction Dredger

Power Type:
Diesel
R&D Department:
Available
SGS Inspection Before Delivery:
Supported
Custom Building:
Accepted
Discharge Diameter:
20inch
Soncap:
Offered
Panama Certificate:
Available
New Dredgers In Stock:
Yes

PRODUCT SHOW

Product Description:


The hydraulic system of this dredger is powered by Rexroth, a trusted name in the hydraulic industry, ensuring reliable performance and smooth operations. This dredger is designed for transportation in bulk and assembly in the working site, making it easy to transport and assemble for immediate use.

Our new dredgers are in stock and ready for purchase, ensuring you can get your hands on this powerful sand dredging machine without delay. Whether you need to dredge sand for construction, land reclamation, or other purposes, this hydraulic cutter suction dredger is the perfect choice.

We can produce dredgers according to the requirements of the customers.

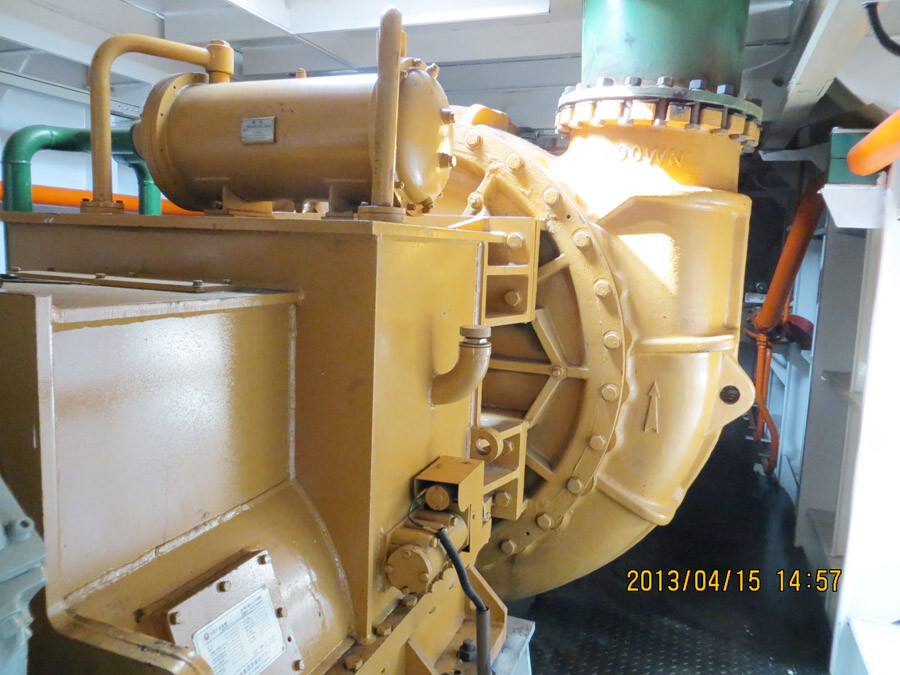

The dredge pump is driven by the main diesel engine through the reducing gear box.

The alternator, which driven by the auxiliary diesel engine, supplies electricity for power and lighting of the whole dredger.

Generator supplies electricity for lighting and emergency using when dredger doesn’t working.

Cutter head is driven by hydraulic motor; cutter bearing has lubrication seal-in units.

The dredger is moved by alternate swing of the spuds. The spuds are lifted by the hydraulic cylinder.


The shifting winches, cutter ladder and lifting winch are driven by the hydraulic motor.

The hydraulic oil pump is driven by the auxiliary diesel engine.

Applicability this dredger: To pass low bridge easily, the controlling room and rest room are dismountable. Connecting parts for cabin room and deck are easily dismounted joints,.

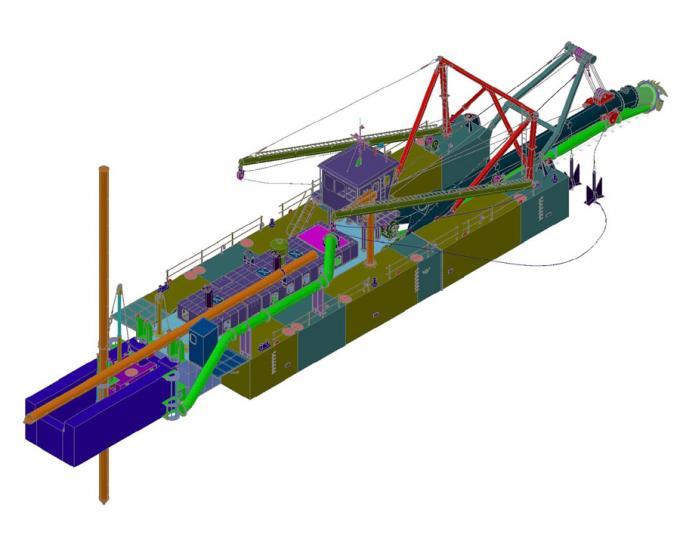

Construction: it consists of three pontoons: one main pontoon and two side pontoons. The pontoons are connected by the connecting pieces and tightened by high intensity bolts and nuts.


Features:


  • Product Name: Cutter Suction Dredger
  • SGS inspection before delivery: Supported
  • Maximum Dredging Depth: 14 Meter
  • Engine: Marine Cummins Engine
  • Color: Customer's Request
  • Colour: Can Be Custom Building

The Cutter Suction Dredger is a type of hydraulic cutter suction dredger that is equipped with a powerful Marine Cummins Engine. It has a maximum dredging depth of 14 meters and can be customized to the customer's preferred color.

YSCSD400 solid capacity 500 cbm/h hydraulic cutter suction dredger
Technical specifications
Water flow2500-3000 m3/h
Solid capacity500 cbm/h
Max. dredging depth 45°14 m

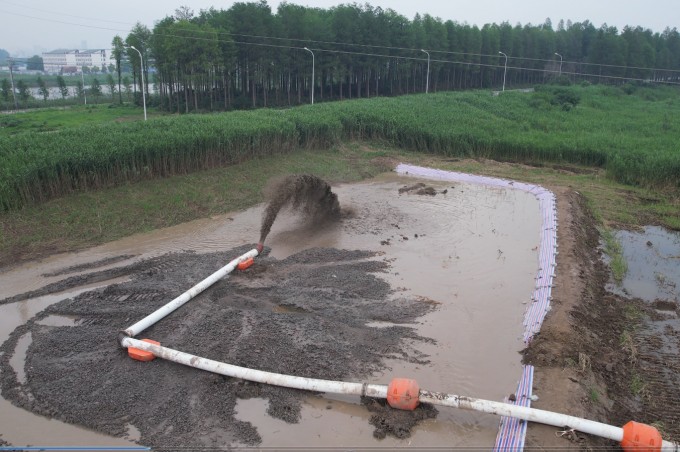

Discharge distance1,400 m
LOA41 m
Dredger after assembly41*6.8*1.8 m Length* width* depth
Dredger structureDismantle type and can be assembly in working site
Average draught1.1 m
Diameter discharge pipe400mm/16inch
Main Engine746 kw Cummins engine
Rotate speed1800 r/min
Auxiliary engine power287 kw Cummins engine
Generator16 kw
Hydraulic cutter power120 kw
Total power1,057 kw

Applications:


With a certification from CCS and a minimum order quantity of just one, the Yongsheng dredger is a top choice for those in need of a powerful cutter suction dredge. The pump brand is Shijiazhuang, ensuring high-quality performance and reliability. The cutter head dredger also comes equipped with 5-6 pieces crown type cutter blades, allowing it to easily cut through and remove even the toughest mud and sediment.

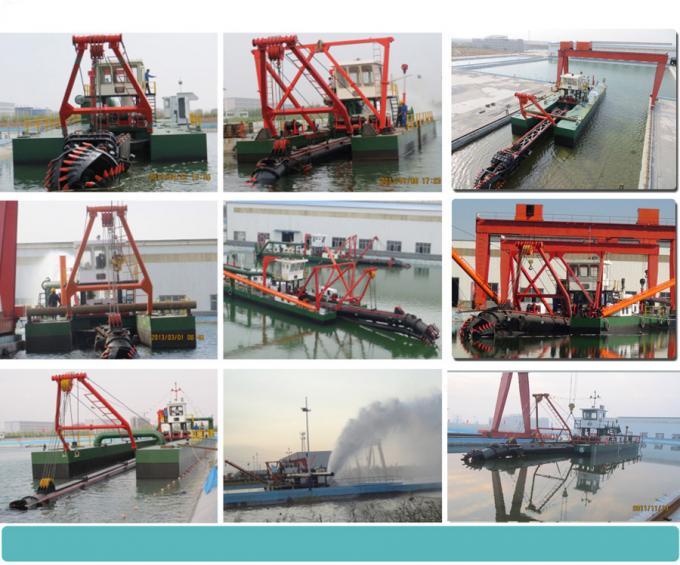

The Yongsheng dredger is highly versatile, making it suitable for a variety of occasions and scenarios. It can be used for large-scale dredging projects in harbors, channels, and ports, as well as smaller-scale projects in rivers, lakes, and ponds. Its side plate thickness ranges from 14 to 40 mm, ensuring durability and longevity for the vessel.

Custom building pricing ensures that the Yongsheng dredger is affordable for a variety of budgets, with packaging options including container shipping or bulk. Delivery time is approximately 60 days, with a payment term of 40% deposit and 70% final payment. The Yongsheng dredger also has a supply ability of 30 sets, making it a readily available option for those in need of a cutter suction dredge.

For those who require additional support, the Yongsheng dredger includes an R&D department and

SGS inspection before delivery. This ensures that the product is consistently high-quality and meets the needs of the customer.

In summary, the Yongsheng dredger is a highly effective and versatile dredging vessel for mud, suitable for a wide range of occasions and scenarios. Its high-quality construction and reliable performance make it a top choice for those in need of a cutter suction dredge.
