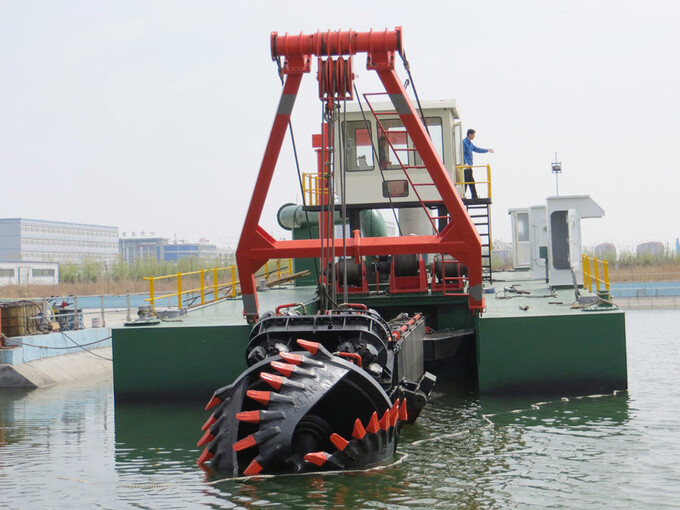

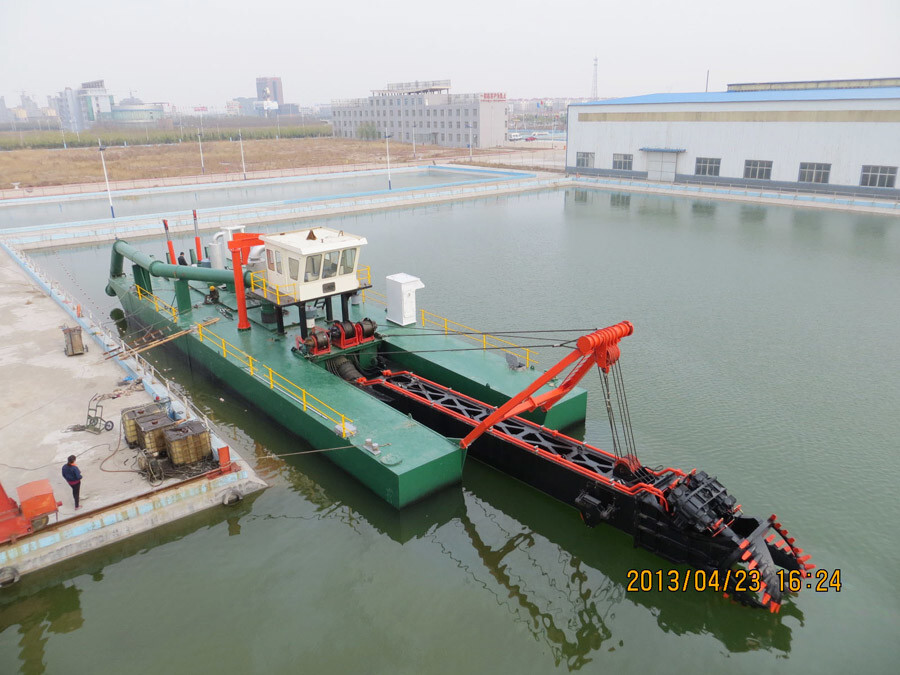

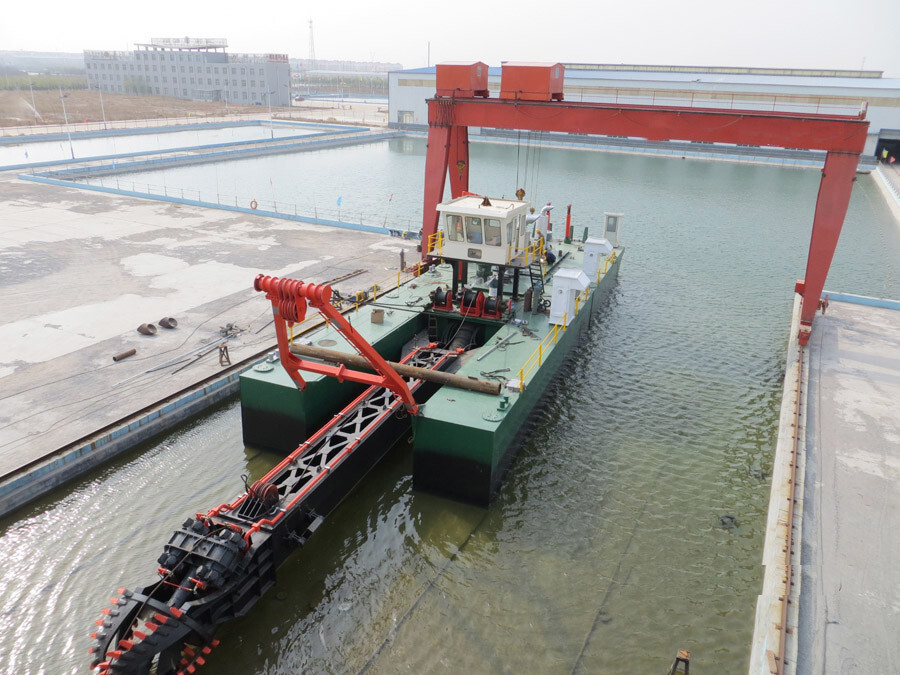

Customizable Cutter Suction Dredger for Waterway Maintenance

product description

As essential equipment in dredging projects, the cutter suction dredger plays a pivotal role in waterway

maintenance, port construction, land reclamation, and hydraulic engineering. Its unique working principle,high operational efficiency, and broad applicability make it one of the preferred choices for underwaterexcavation and dredging operations.

product parameters

Working Principle

The cutter suction dredger primarily accomplishes dredging tasks through the coordinated operation of a cutter device and a dredge pump. The ladder frame at the bow extends below the water surface, where the rotating cutter head—powered by a drive system—cuts and agitates underwater sediments, loosening compacted soil, sand, or even rock layers. Simultaneously, the onboard dredge pump generates strong suction pressure, drawing the loosened slurry through the suction pipe and transporting it via discharge pipelines over distances ranging from hundreds to thousands of meters to designated areas, such as s poil grounds or reclamation sites. This integrated process—excavation, transportation, and discharge—is completed seamlessly without requiring additional vessels for intermediate transfers, significantly enhancing operational efficiency.

Main equipment on the dredger:

   ——Cutter head and driving system

   —— Frame of cutter head

　  ——Frame of ladder A

   ——lifting winch for sand suction pipe

   ——Right and left traversing winches

   ——Operating room

   ——Dredging pump

   ——Deck crane

   ——Gearbox of dredging pump

   ——Main diesel oil engine and auxiliary diesel oil engine

company profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City,Shandong Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing experience in water area environmental protective equipment. It is a professional supplier of integrated with R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
