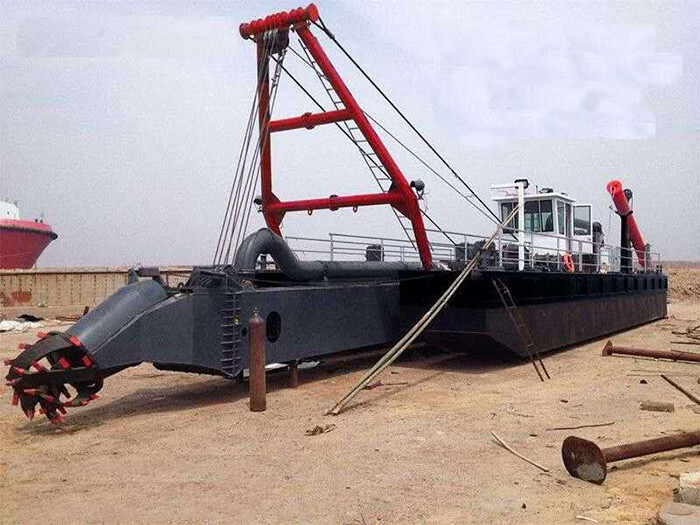

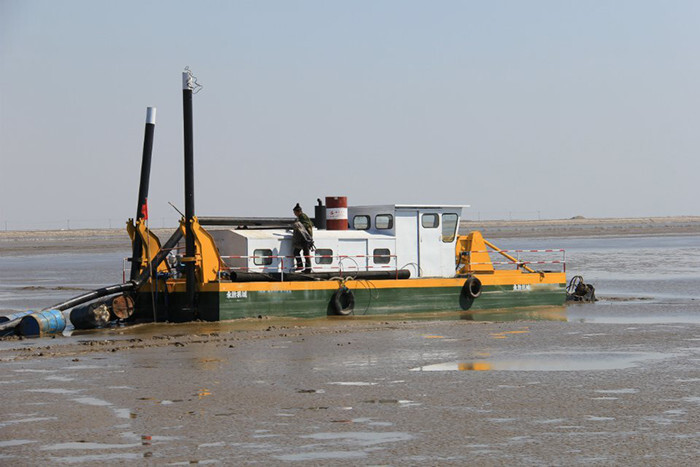

The 500mm cutter suction dredger features a cutting mechanism at the suction inlet that loosens bed material for efficient transport. Equipped with a wear-resistant centrifugal pump, it effectively handles hard surface materials like gravel deposits or surface bedrock where standard suction dredgers would be ineffective.

• Cutter Head: Alloy cutters for breaking hard soil layers
• Suction Pipe: Creates negative pressure for mud-water mixture suction
• Dredge Pump: Powers mud transportation through discharge pipes
• Positioning System: Spuds or DP dynamic positioning for precise movement
• Ladder: Liftable structure supporting reamer and suction pipe

Excavation: Rotating cutter head cuts and crushes bottom materials at high speed.

Suction: Powerful mud pump generates vacuum to suck loosened material mixture.

Transport: Pressurized mud moves through internal pipe system.

Discharge: Material transported via pipeline to shore or loaded onto barges.

• Continuous high-efficiency operation
• Wide material compatibility from silt to medium-hard rock
• Long-distance material transport capability
• Precise depth and flatness control
• Reduced environmental impact compared to alternatives

• Port and waterway construction
• Land reclamation and island building
• Environmental remediation projects
• Subsea mineral mining operations

• Company Profile


Shandong Yongsheng Dredging Machinery Equipment Co., Ltd., established in 1995, specializes in designing and manufacturing cutter suction dredgers and aquatic weed harvesters. All products are ISO9001 certified and support SGS factory inspections.
